| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T04_069T01_9000005158_36121cztM0_level2.evt | modeM0/AS1T04_069T01_9000005158_36121cztM0_level2_quad_clean.evt |
| Size (bytes) | 461,450,880 | 79,165,440 |
| Size | 440.1 MB | 75.5 MB |
| Events in quadrant A | 2,818,479 | 511,030 |
| Events in quadrant B | 3,489,626 | 506,498 |
| Events in quadrant C | 3,104,747 | 499,918 |
| Events in quadrant D | 4,168,887 | 474,949 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12014 | 3 |
| B | 0 | 14022 | 2 |
| C | 0 | 12743 | 2 |
| D | 0 | 16237 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 22 | 0 |
| B | 0 | 22 | 0 |
| C | 0 | 22 | 0 |
| D | 0 | 23 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 120 | 0 |
| B | 0 | 120 | 0 |
| C | 0 | 120 | 0 |
| D | 0 | 120 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5783 | 16 | 0.276673% |
| B | 5783 | 196 | 3.389244% |
| C | 5783 | 78 | 1.348781% |
| D | 5783 | 360 | 6.225143% |

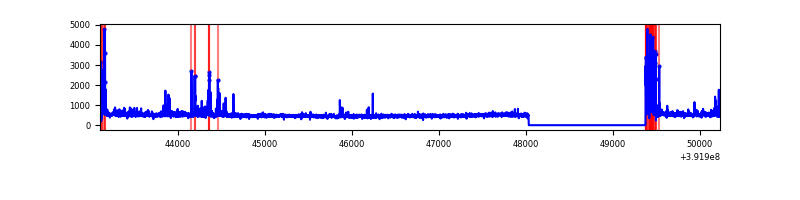

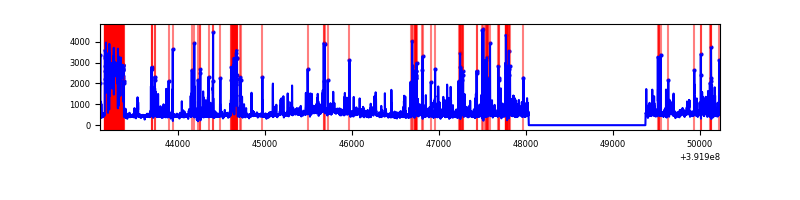

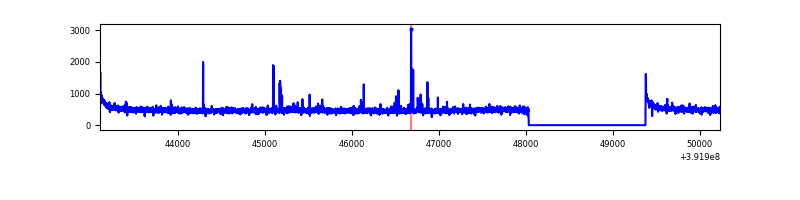

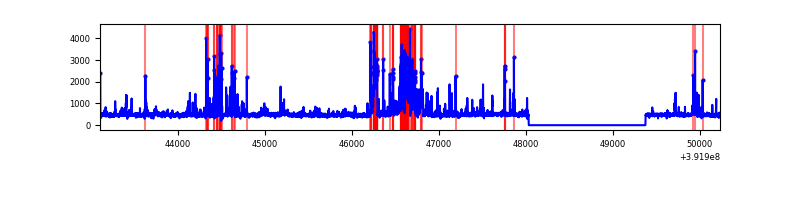

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7126 | 5784 | 1 | 1 | 0.01% | 0.02% |  |
| B | 7126 | 5784 | 140 | 140 | 1.96% | 2.42% |  |
| C | 7126 | 5784 | 45 | 45 | 0.63% | 0.78% |  |
| D | 7126 | 5784 | 326 | 326 | 4.57% | 5.64% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 182617 | 1341.29 | 665 | 652 | 135.7 |
| A | 9 | 143 | 46351 | 336.85 | 665 | 652 | 135.7 |
| A | 13 | 254 | 8257 | 56.06 | 665 | 652 | 135.7 |
| B | 5 | 172 | 722851 | 5664.3 | 652 | 633 | 127.5 |
| B | 0 | 155 | 60991 | 473.38 | 652 | 633 | 127.5 |
| B | 5 | 255 | 55952 | 433.86 | 652 | 633 | 127.5 |
| C | 15 | 214 | 246449 | 1641.65 | 639 | 646 | 149.7 |
| C | 0 | 10 | 186769 | 1243.06 | 639 | 646 | 149.7 |
| C | 0 | 207 | 139350 | 926.36 | 639 | 646 | 149.7 |
| D | 1 | 52 | 695078 | 4560.07 | 622 | 604 | 152.3 |
| D | 12 | 6 | 351771 | 2305.84 | 622 | 604 | 152.3 |
| D | 10 | 203 | 188192 | 1231.74 | 622 | 604 | 152.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

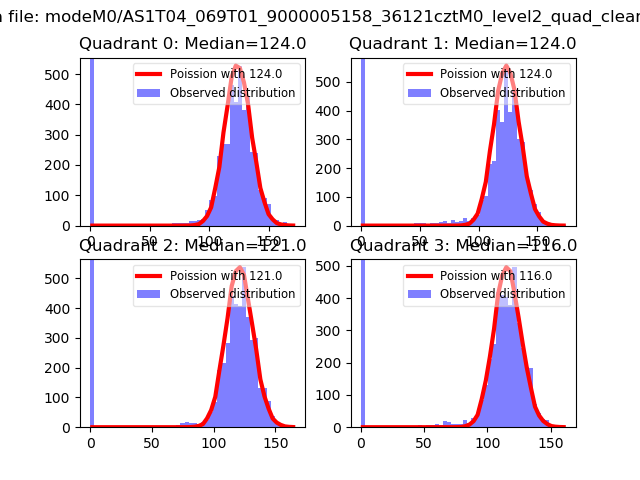

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

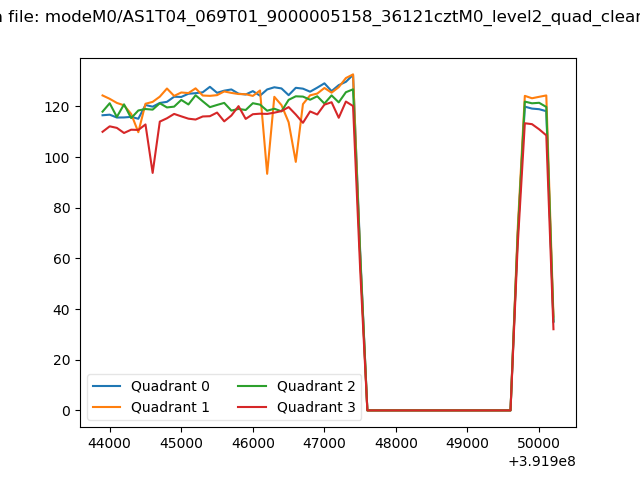

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

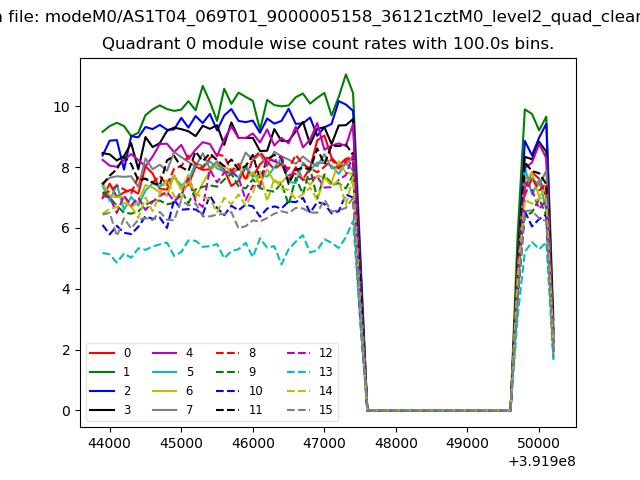

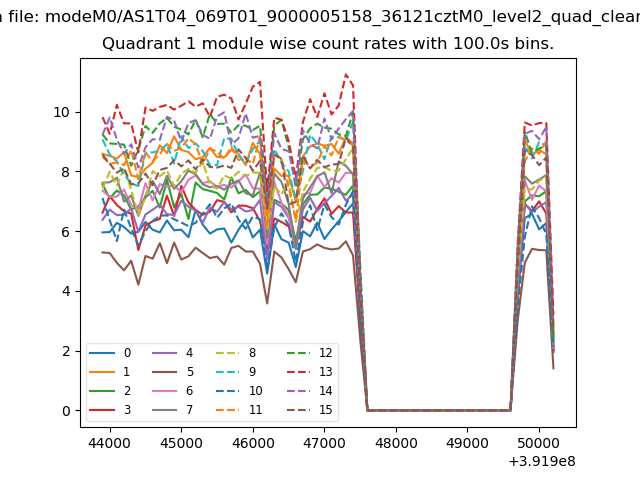

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

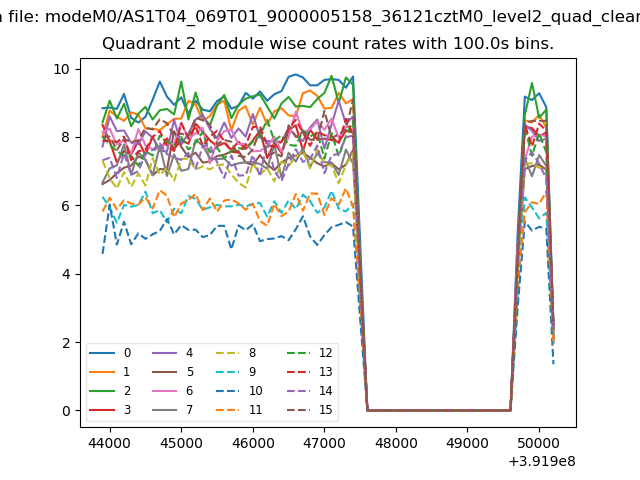

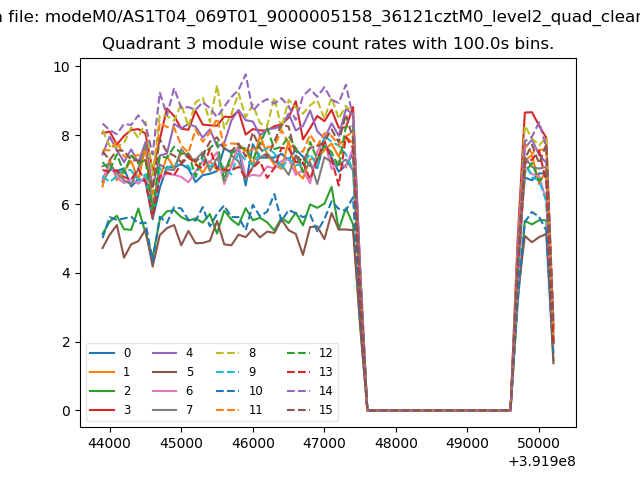

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

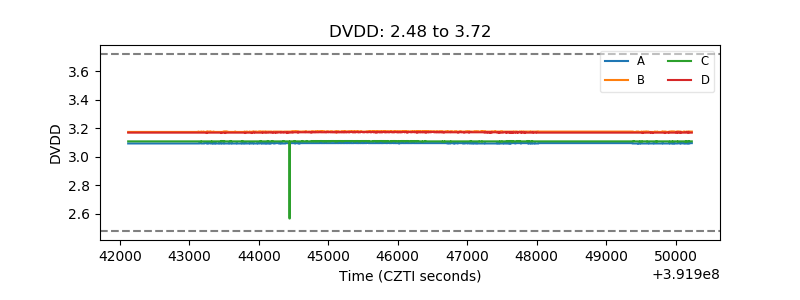

| D_VDD |  |

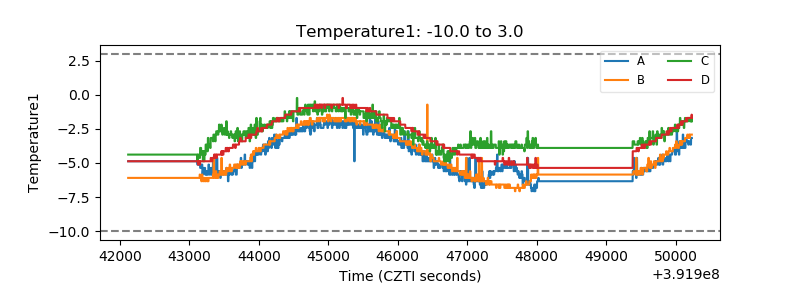

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

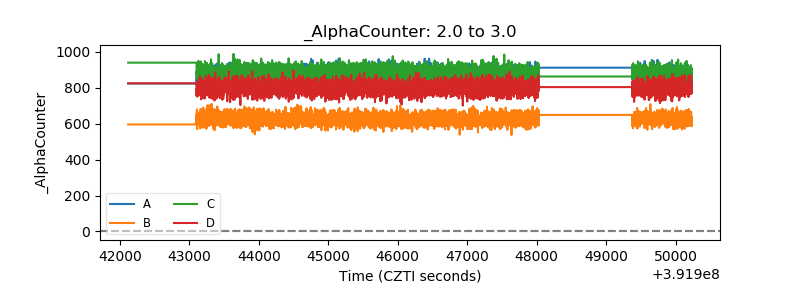

| Alpha Counter |  |
| _CPM_Rate |  |

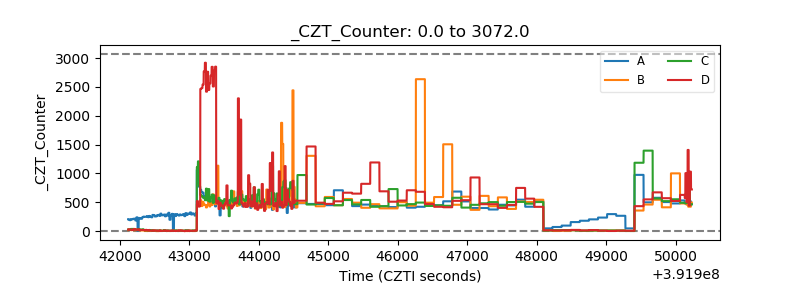

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

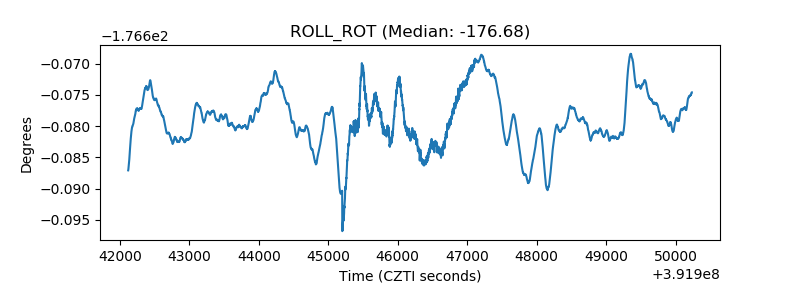

| _ROLL_ROT |  |

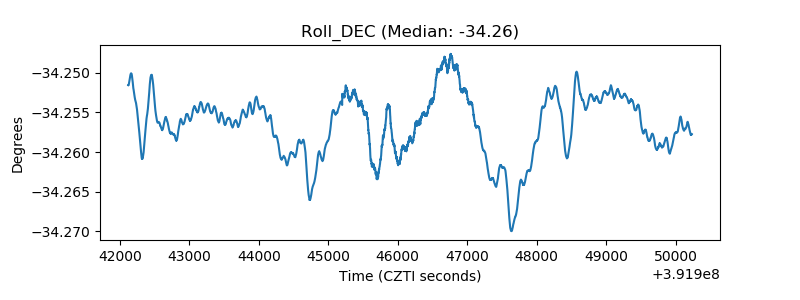

| _Roll_DEC |  |

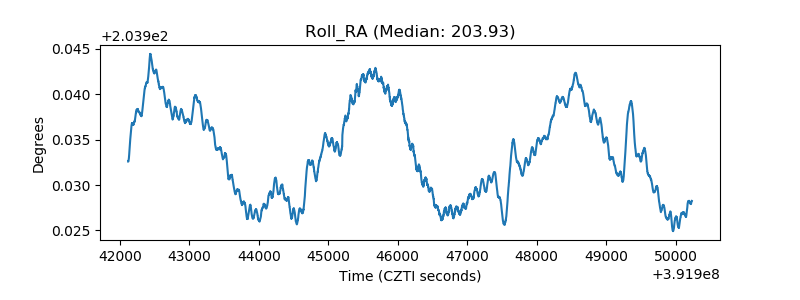

| _Roll_RA |  |

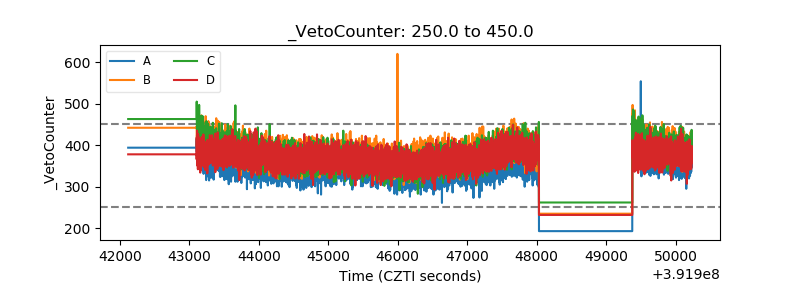

| Veto Counter |  |
