| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A11_059T08_9000005160_36164cztM0_level2.evt | modeM0/AS1A11_059T08_9000005160_36164cztM0_level2_quad_clean.evt |
| Size (bytes) | 499,265,280 | 61,796,160 |
| Size | 476.1 MB | 58.9 MB |
| Events in quadrant A | 3,200,360 | 367,271 |
| Events in quadrant B | 3,348,573 | 384,653 |
| Events in quadrant C | 3,667,884 | 364,909 |
| Events in quadrant D | 4,503,278 | 341,761 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17 | 0 |
| B | 0 | 17 | 0 |
| C | 0 | 17 | 0 |
| D | 0 | 18 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13197 | 3 |
| B | 0 | 13692 | 2 |
| C | 0 | 14368 | 2 |
| D | 0 | 17284 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 120 | 0 |
| B | 0 | 120 | 0 |
| C | 0 | 120 | 0 |
| D | 0 | 120 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5899 | 124 | 2.102051% |
| B | 5899 | 93 | 1.576538% |
| C | 5899 | 127 | 2.152907% |
| D | 5899 | 358 | 6.068825% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

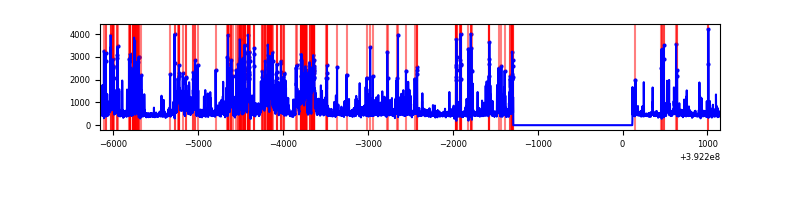

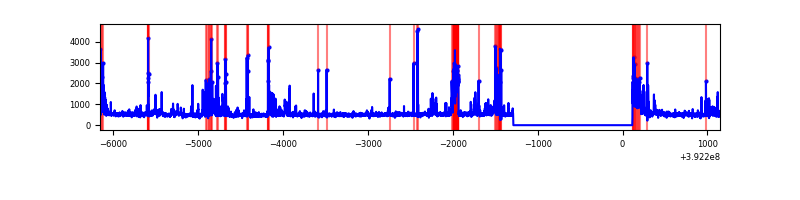

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7302 | 5900 | 82 | 82 | 1.12% | 1.39% |  |
| B | 7302 | 5900 | 54 | 54 | 0.74% | 0.92% |  |
| C | 7302 | 5900 | 98 | 98 | 1.34% | 1.66% |  |
| D | 7302 | 5900 | 301 | 301 | 4.12% | 5.10% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 9 | 143 | 388837 | 2831.42 | 674 | 660 | 137.1 |
| A | 10 | 83 | 184081 | 1337.9 | 674 | 660 | 137.1 |
| A | 8 | 144 | 10585 | 72.39 | 674 | 660 | 137.1 |
| B | 5 | 172 | 458809 | 3485.79 | 674 | 656 | 131.4 |
| B | 0 | 190 | 92417 | 698.15 | 674 | 656 | 131.4 |
| B | 15 | 32 | 51990 | 390.57 | 674 | 656 | 131.4 |
| C | 0 | 207 | 328780 | 2119.67 | 660 | 665 | 154.8 |
| C | 15 | 208 | 302038 | 1946.92 | 660 | 665 | 154.8 |
| C | 15 | 214 | 268221 | 1728.45 | 660 | 665 | 154.8 |
| D | 12 | 17 | 784087 | 4864.32 | 651 | 633 | 161.1 |
| D | 13 | 171 | 259582 | 1607.77 | 651 | 633 | 161.1 |
| D | 10 | 199 | 258117 | 1598.67 | 651 | 633 | 161.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

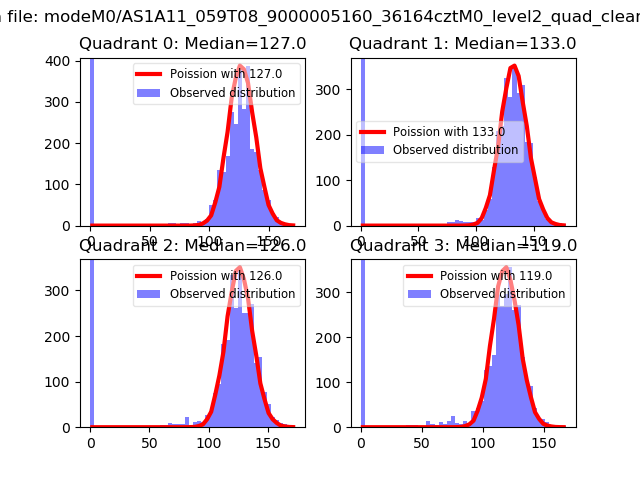

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

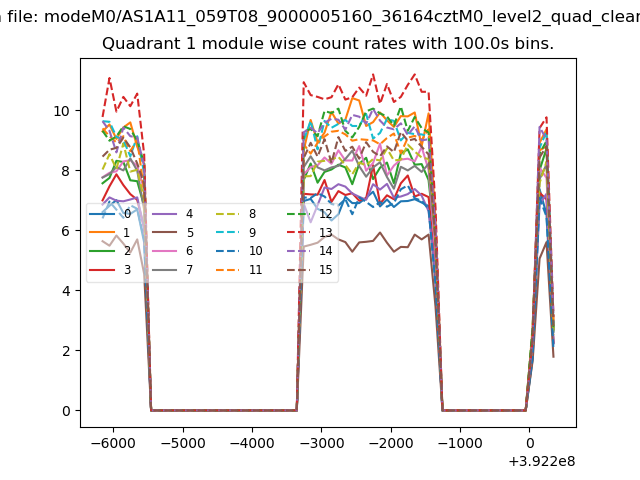

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

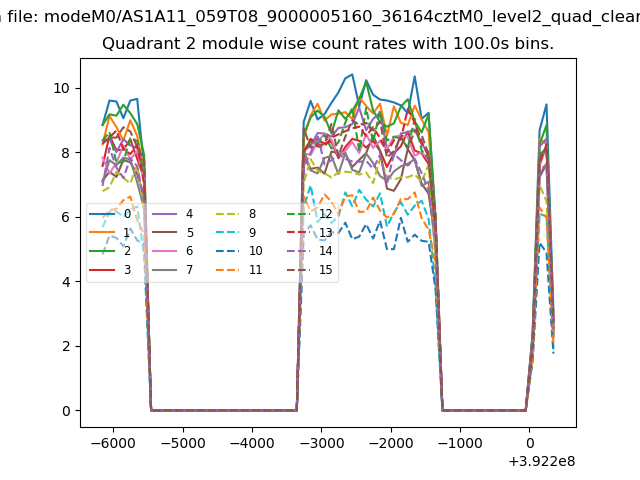

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

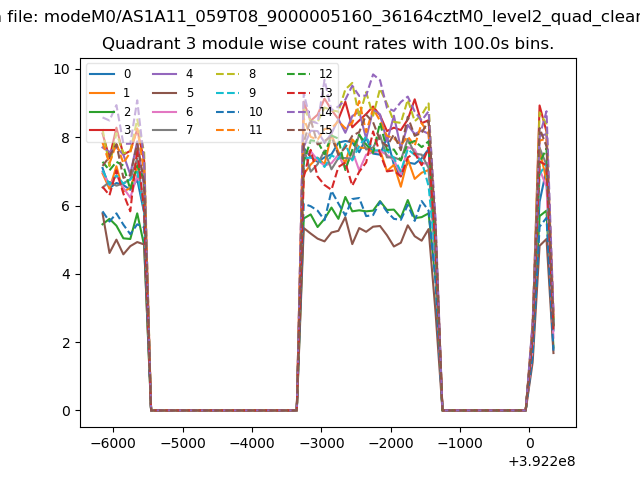

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

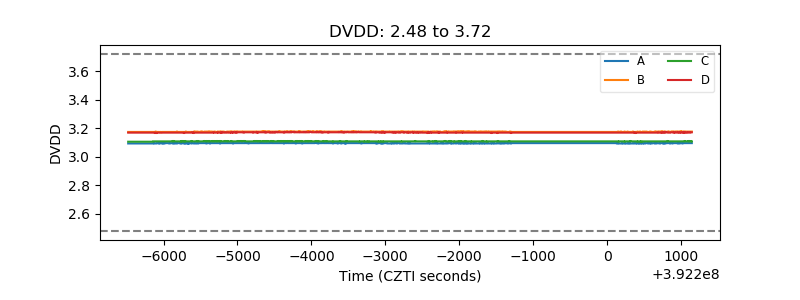

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

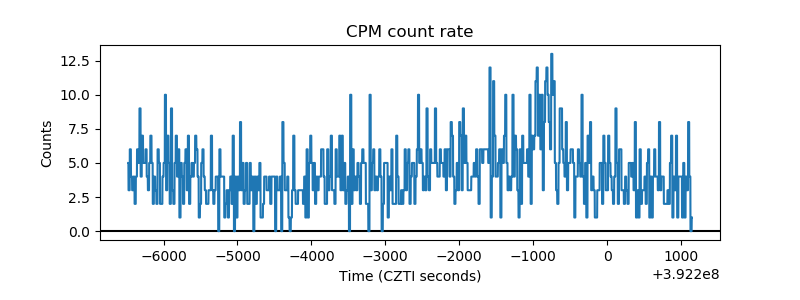

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
