| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A11_059T08_9000005160_36168cztM0_level2.evt | modeM0/AS1A11_059T08_9000005160_36168cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,188,051,840 | 196,545,600 |
| Size | 1.1 GB | 187.4 MB |
| Events in quadrant A | 7,350,930 | 1,233,383 |
| Events in quadrant B | 8,637,770 | 1,277,711 |
| Events in quadrant C | 9,135,662 | 1,210,972 |
| Events in quadrant D | 9,806,292 | 1,158,631 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 56 | 0 |
| B | 0 | 56 | 0 |
| C | 0 | 56 | 0 |
| D | 0 | 56 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 31907 | 5 |
| B | 0 | 35473 | 4 |
| C | 0 | 36311 | 4 |
| D | 0 | 39603 | 4 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 318 | 0 |
| B | 0 | 318 | 0 |
| C | 0 | 318 | 0 |
| D | 0 | 318 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 15542 | 24 | 0.154420% |
| B | 15542 | 235 | 1.512032% |
| C | 15542 | 332 | 2.136147% |
| D | 15542 | 550 | 3.538798% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 21125 | 15546 | 0 | 0 | 0.00% | 0.00% |  |
| B | 21125 | 15546 | 135 | 135 | 0.64% | 0.87% |  |
| C | 21125 | 15546 | 257 | 257 | 1.22% | 1.65% |  |
| D | 21125 | 15546 | 453 | 453 | 2.14% | 2.91% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 427466 | 1190.46 | 1778 | 1742 | 357.6 |
| A | 13 | 254 | 25184 | 65.55 | 1778 | 1742 | 357.6 |
| A | 3 | 137 | 19178 | 48.76 | 1778 | 1742 | 357.6 |
| B | 5 | 172 | 730881 | 2128.29 | 1773 | 1725 | 342.6 |
| B | 15 | 32 | 257309 | 746.01 | 1773 | 1725 | 342.6 |
| B | 0 | 190 | 213349 | 617.7 | 1773 | 1725 | 342.6 |
| C | 15 | 208 | 828701 | 2059.67 | 1731 | 1743 | 401.5 |
| C | 15 | 214 | 693914 | 1723.96 | 1731 | 1743 | 401.5 |
| C | 0 | 10 | 387646 | 961.15 | 1731 | 1743 | 401.5 |
| D | 2 | 249 | 1000148 | 2397.16 | 1717 | 1673 | 416.5 |
| D | 1 | 52 | 407788 | 975.01 | 1717 | 1673 | 416.5 |
| D | 12 | 17 | 404983 | 968.28 | 1717 | 1673 | 416.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

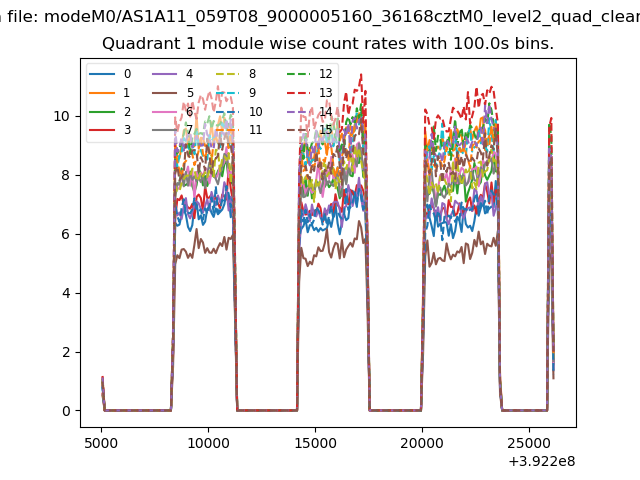

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

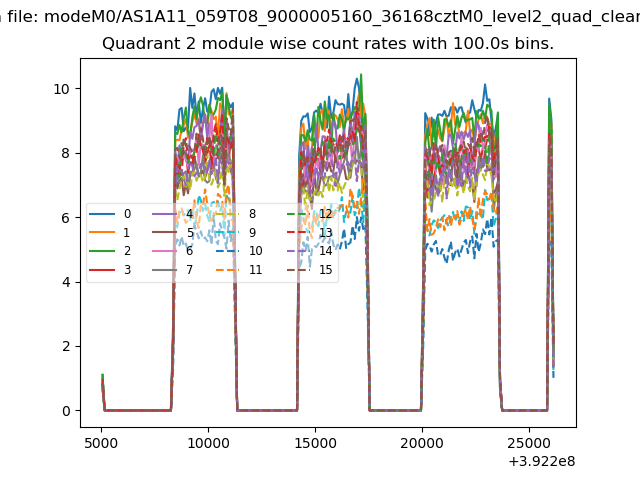

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

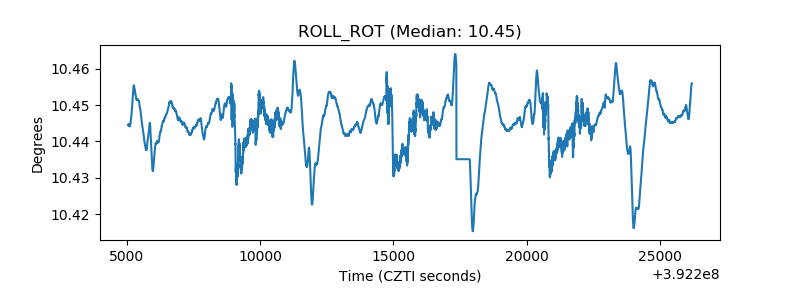

| _ROLL_ROT |  |

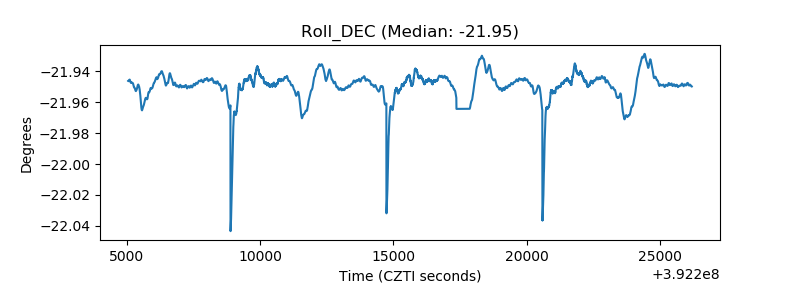

| _Roll_DEC |  |

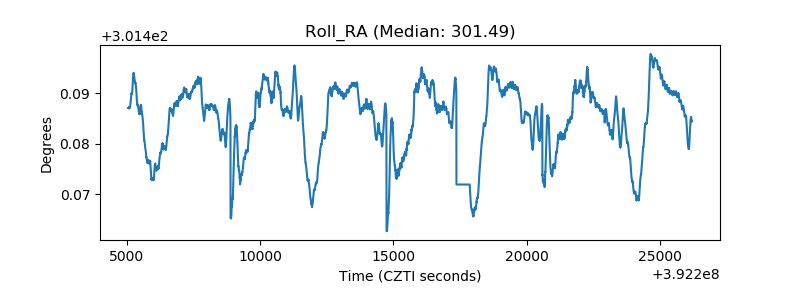

| _Roll_RA |  |
| Veto Counter |  |
