| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_071T50_9000005166_36175cztM0_level2.evt | modeM0/AS1A10_071T50_9000005166_36175cztM0_level2_quad_clean.evt |
| Size (bytes) | 116,838,720 | 12,470,400 |
| Size | 111.4 MB | 11.9 MB |
| Events in quadrant A | 726,188 | 71,377 |
| Events in quadrant B | 1,051,833 | 71,024 |
| Events in quadrant C | 875,180 | 70,592 |
| Events in quadrant D | 795,037 | 67,212 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 2927 | 2 |
| B | 0 | 4012 | 1 |
| C | 0 | 3393 | 1 |
| D | 0 | 3168 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 21 | 0 |
| B | 0 | 21 | 0 |
| C | 0 | 21 | 0 |
| D | 0 | 21 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 28 | 0 |
| B | 0 | 28 | 0 |
| C | 0 | 28 | 0 |
| D | 0 | 28 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 1288 | 5 | 0.388199% |
| B | 1288 | 58 | 4.503106% |
| C | 1288 | 34 | 2.639752% |
| D | 1288 | 21 | 1.630435% |

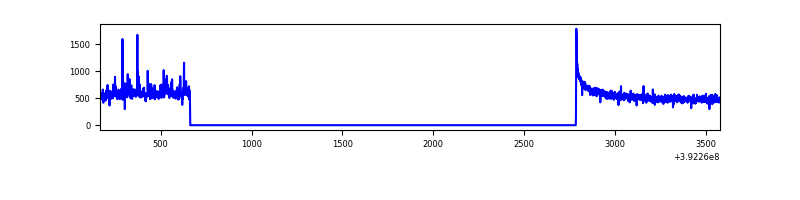

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 3411 | 1289 | 0 | 0 | 0.00% | 0.00% |  |
| B | 3411 | 1289 | 31 | 31 | 0.91% | 2.40% |  |
| C | 3411 | 1289 | 33 | 33 | 0.97% | 2.56% |  |
| D | 3411 | 1289 | 13 | 13 | 0.38% | 1.01% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 68784 | 2001.86 | 162 | 159 | 34.3 |
| A | 9 | 143 | 23083 | 668.72 | 162 | 159 | 34.3 |
| A | 8 | 144 | 6000 | 170.39 | 162 | 159 | 34.3 |
| B | 4 | 171 | 164946 | 5083.11 | 159 | 154 | 32.4 |
| B | 5 | 236 | 121242 | 3735.04 | 159 | 154 | 32.4 |
| B | 0 | 213 | 57423 | 1766.5 | 159 | 154 | 32.4 |
| C | 0 | 10 | 151305 | 3947.98 | 155 | 155 | 38.3 |
| C | 15 | 214 | 62691 | 1633.41 | 155 | 155 | 38.3 |
| C | 15 | 208 | 39985 | 1040.34 | 155 | 155 | 38.3 |
| D | 1 | 52 | 86930 | 2192.89 | 155 | 151 | 39.6 |
| D | 13 | 249 | 43018 | 1083.24 | 155 | 151 | 39.6 |
| D | 2 | 153 | 19116 | 479.24 | 155 | 151 | 39.6 |

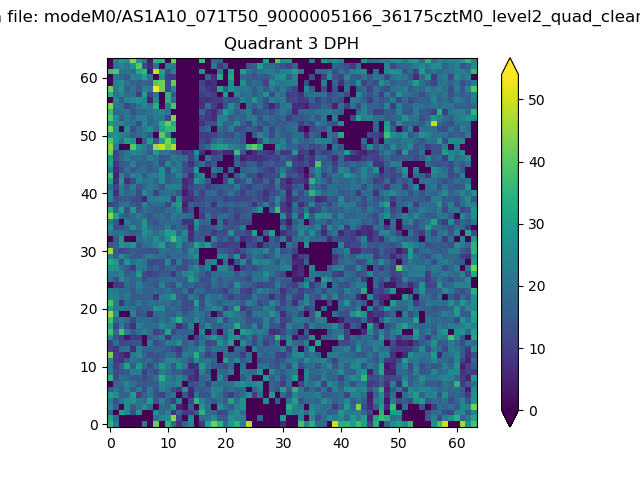

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

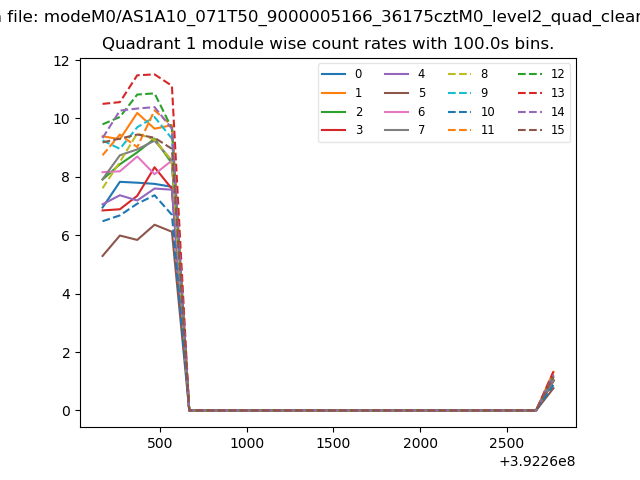

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

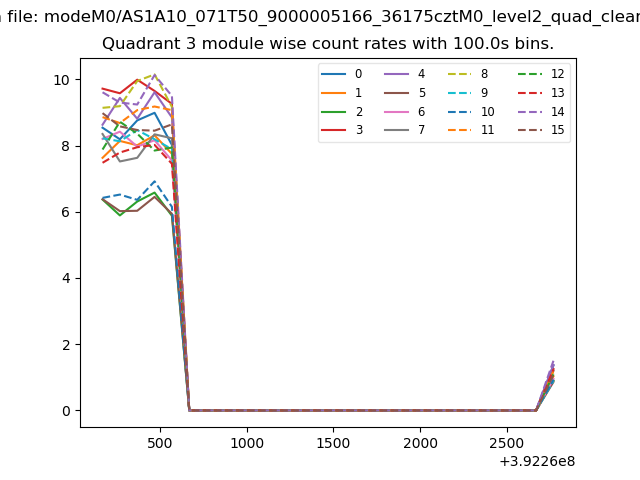

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

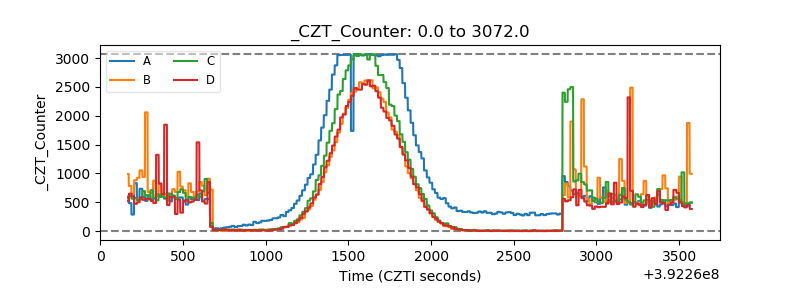

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

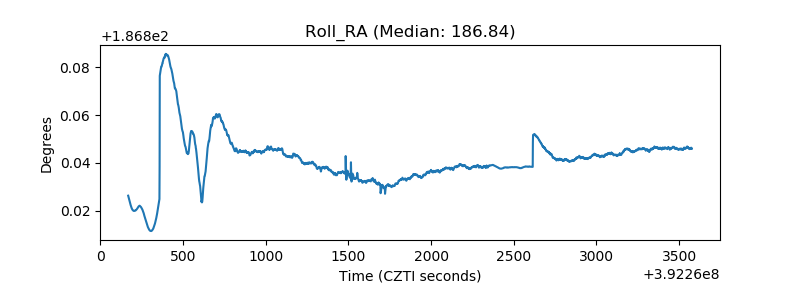

| _Roll_RA |  |

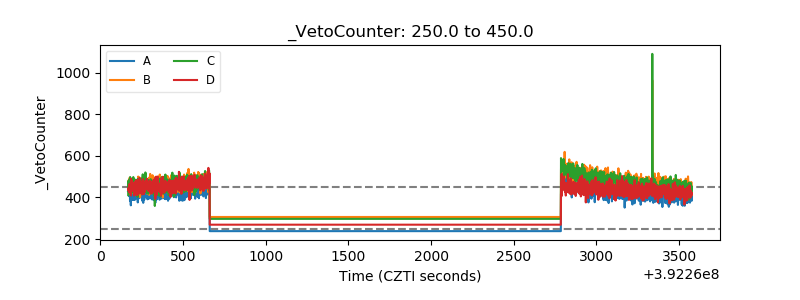

| Veto Counter |  |
