| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A11_097T17_9000005170_36189cztM0_level2.evt | modeM0/AS1A11_097T17_9000005170_36189cztM0_level2_quad_clean.evt |
| Size (bytes) | 387,561,600 | 60,963,840 |
| Size | 369.6 MB | 58.1 MB |
| Events in quadrant A | 2,515,195 | 377,918 |
| Events in quadrant B | 2,787,154 | 391,553 |
| Events in quadrant C | 2,901,795 | 383,877 |
| Events in quadrant D | 3,207,649 | 356,298 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 98 | 0 |
| B | 0 | 98 | 0 |
| C | 0 | 98 | 0 |
| D | 0 | 98 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10375 | 3 |
| B | 0 | 11276 | 2 |
| C | 0 | 11498 | 2 |
| D | 0 | 12682 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 38 | 0 |
| B | 0 | 38 | 0 |
| C | 0 | 38 | 0 |
| D | 0 | 39 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 4788 | 36 | 0.751880% |
| B | 4788 | 49 | 1.023392% |
| C | 4788 | 40 | 0.835422% |
| D | 4788 | 184 | 3.842941% |

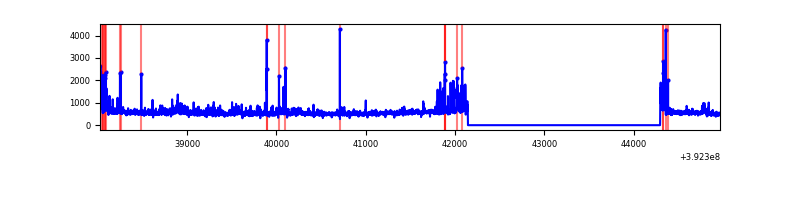

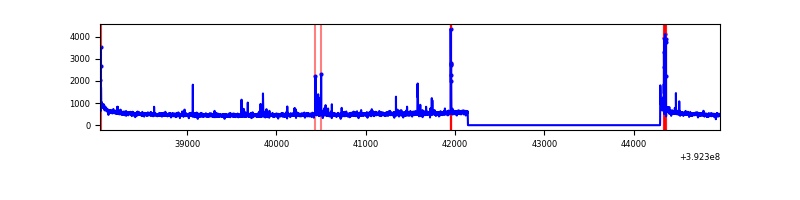

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 6941 | 4789 | 20 | 20 | 0.29% | 0.42% |  |
| B | 6941 | 4789 | 21 | 21 | 0.30% | 0.44% |  |
| C | 6941 | 4789 | 25 | 25 | 0.36% | 0.52% |  |
| D | 6941 | 4789 | 170 | 170 | 2.45% | 3.55% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 161449 | 1400.2 | 570 | 559 | 114.9 |
| A | 9 | 143 | 123100 | 1066.45 | 570 | 559 | 114.9 |
| A | 8 | 144 | 23931 | 203.4 | 570 | 559 | 114.9 |
| B | 5 | 172 | 211141 | 1914.18 | 573 | 559 | 110.0 |
| B | 0 | 213 | 162529 | 1472.3 | 573 | 559 | 110.0 |
| B | 5 | 236 | 112801 | 1020.27 | 573 | 559 | 110.0 |
| C | 15 | 214 | 217364 | 1664.32 | 560 | 565 | 130.3 |
| C | 0 | 207 | 212470 | 1626.74 | 560 | 565 | 130.3 |
| C | 0 | 10 | 130100 | 994.41 | 560 | 565 | 130.3 |
| D | 13 | 249 | 254540 | 1914.63 | 544 | 530 | 132.7 |
| D | 2 | 250 | 246858 | 1856.73 | 544 | 530 | 132.7 |
| D | 12 | 6 | 208956 | 1571.04 | 544 | 530 | 132.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|

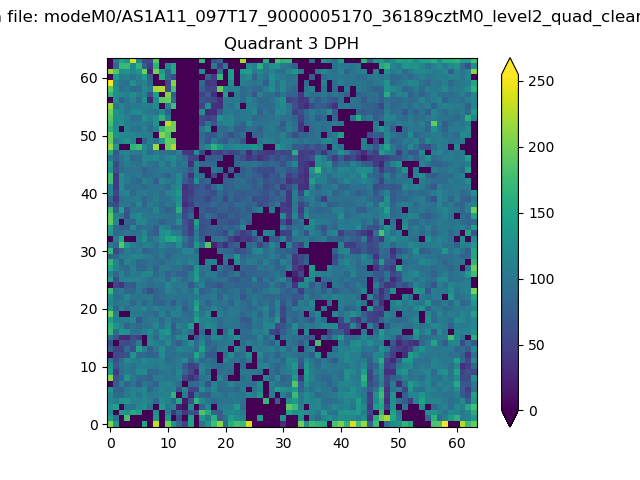

| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

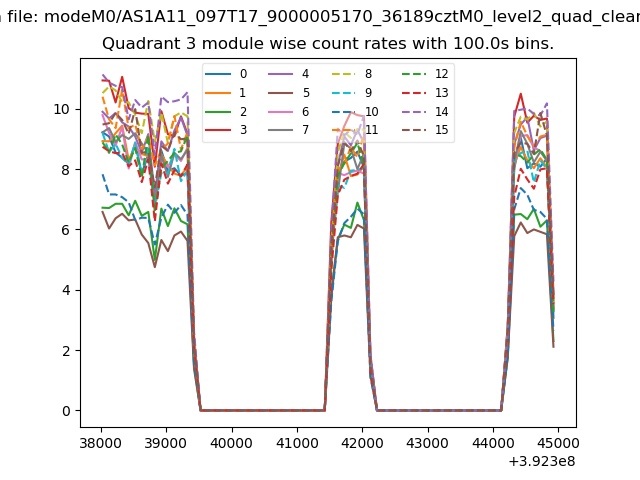

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

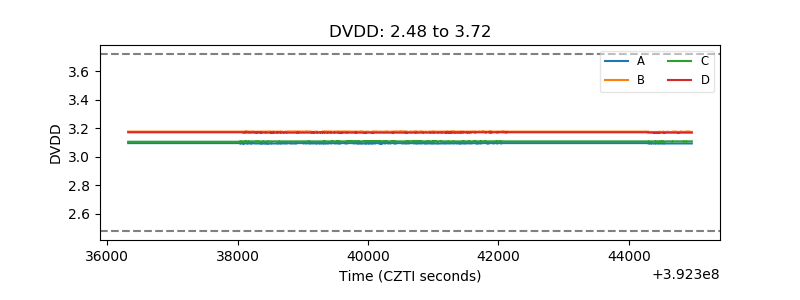

| D_VDD |  |

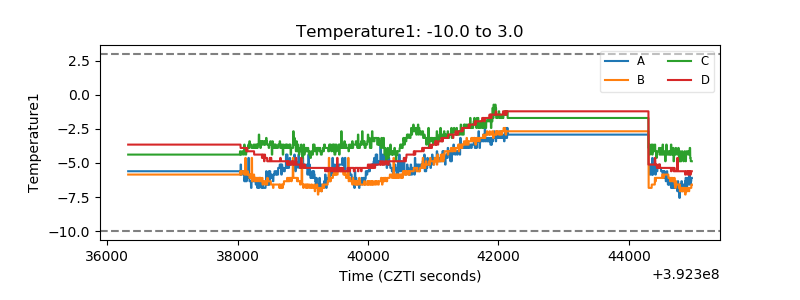

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

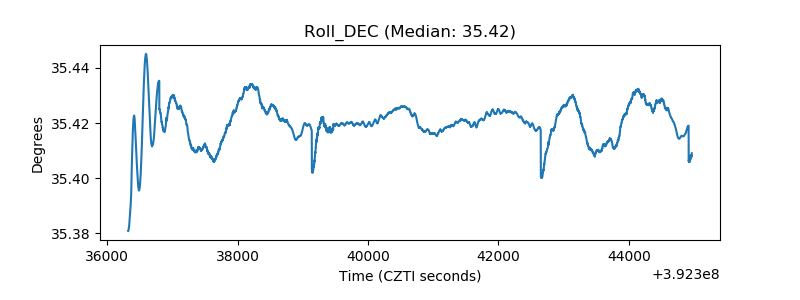

| _Roll_DEC |  |

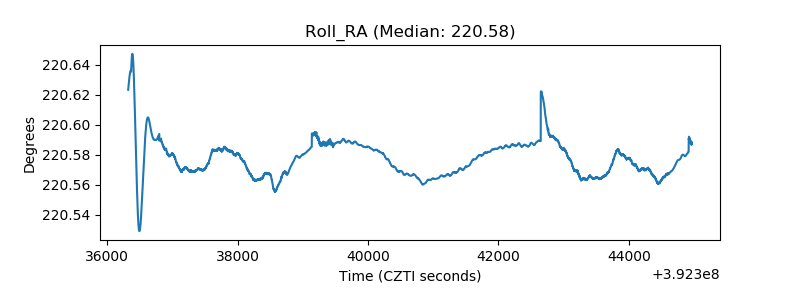

| _Roll_RA |  |
| Veto Counter |  |
