| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A11_097T17_9000005170_36201cztM0_level2.evt | modeM0/AS1A11_097T17_9000005170_36201cztM0_level2_quad_clean.evt |
| Size (bytes) | 436,057,920 | 76,357,440 |
| Size | 415.9 MB | 72.8 MB |
| Events in quadrant A | 2,686,159 | 490,786 |
| Events in quadrant B | 3,082,616 | 494,302 |
| Events in quadrant C | 3,599,060 | 493,289 |
| Events in quadrant D | 3,482,868 | 467,052 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 106 | 0 |
| B | 0 | 106 | 0 |
| C | 0 | 106 | 0 |
| D | 0 | 106 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11435 | 3 |
| B | 0 | 12481 | 2 |
| C | 0 | 14115 | 2 |
| D | 0 | 13746 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 35 | 0 |
| B | 0 | 35 | 0 |
| C | 0 | 35 | 0 |
| D | 0 | 36 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5235 | 11 | 0.210124% |
| B | 5235 | 175 | 3.342884% |
| C | 5235 | 220 | 4.202483% |
| D | 5235 | 251 | 4.794651% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7148 | 5236 | 1 | 1 | 0.01% | 0.02% |  |
| B | 7148 | 5236 | 100 | 100 | 1.40% | 1.91% |  |
| C | 7148 | 5236 | 178 | 178 | 2.49% | 3.40% |  |
| D | 7148 | 5236 | 218 | 218 | 3.05% | 4.16% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 171551 | 1371.5 | 619 | 606 | 124.6 |
| A | 15 | 223 | 62016 | 492.69 | 619 | 606 | 124.6 |
| A | 8 | 144 | 43332 | 342.79 | 619 | 606 | 124.6 |
| B | 5 | 172 | 460987 | 3992.73 | 614 | 596 | 115.3 |
| B | 4 | 171 | 126904 | 1095.4 | 614 | 596 | 115.3 |
| B | 0 | 245 | 42201 | 360.82 | 614 | 596 | 115.3 |
| C | 15 | 208 | 548521 | 3894.39 | 609 | 616 | 140.7 |
| C | 15 | 214 | 235890 | 1672.27 | 609 | 616 | 140.7 |
| C | 4 | 254 | 222451 | 1576.75 | 609 | 616 | 140.7 |
| D | 12 | 6 | 515512 | 3534.03 | 601 | 586 | 145.7 |
| D | 12 | 227 | 342450 | 2346.27 | 601 | 586 | 145.7 |
| D | 12 | 233 | 121693 | 831.18 | 601 | 586 | 145.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

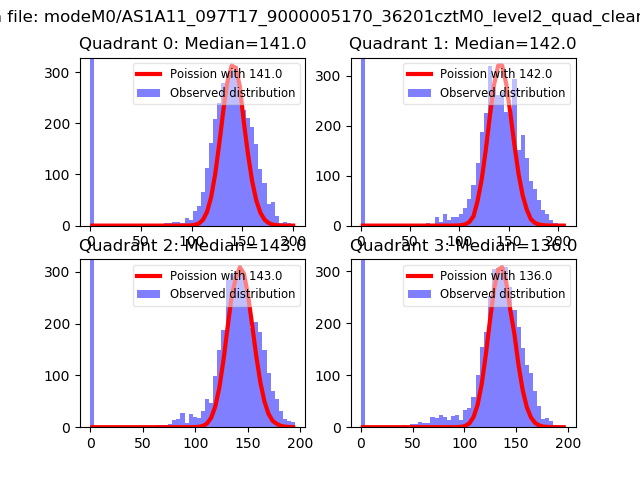

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

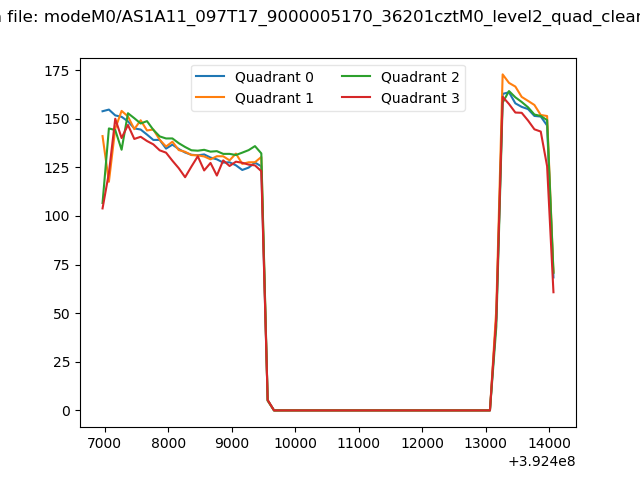

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

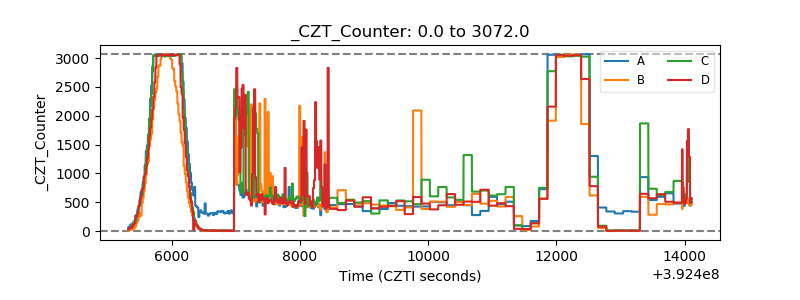

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

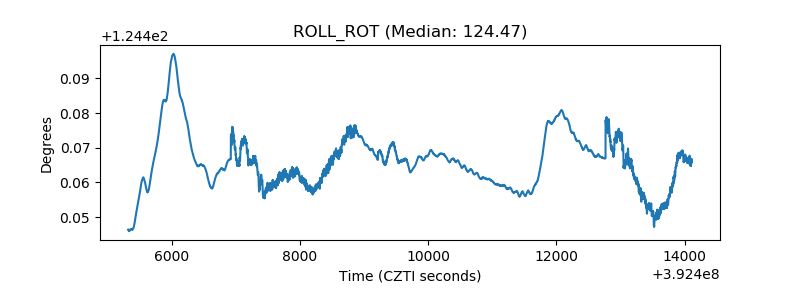

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
