| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T05_009T02_9000005172_36202cztM0_level2.evt | modeM0/AS1T05_009T02_9000005172_36202cztM0_level2_quad_clean.evt |
| Size (bytes) | 231,497,280 | 46,661,760 |
| Size | 220.8 MB | 44.5 MB |
| Events in quadrant A | 1,626,643 | 303,980 |
| Events in quadrant B | 1,553,691 | 312,527 |
| Events in quadrant C | 1,950,358 | 303,333 |
| Events in quadrant D | 1,691,217 | 295,548 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 6644 | 2 |
| B | 0 | 6364 | 1 |
| C | 0 | 7435 | 1 |
| D | 0 | 6922 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 58 | 0 |
| B | 0 | 58 | 0 |
| C | 0 | 58 | 0 |
| D | 0 | 58 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 20 | 0 |
| B | 0 | 20 | 0 |
| C | 0 | 20 | 0 |
| D | 0 | 20 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 2756 | 20 | 0.725689% |
| B | 2756 | 33 | 1.197388% |
| C | 2756 | 138 | 5.007257% |
| D | 2756 | 58 | 2.104499% |

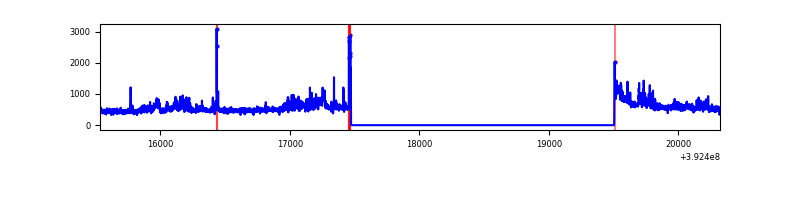

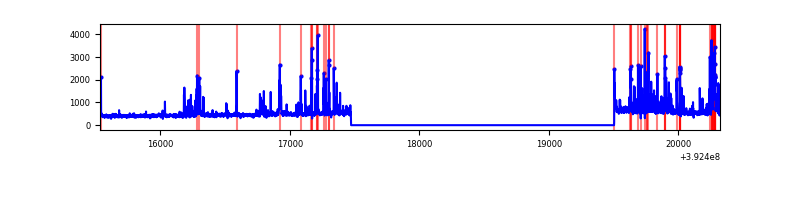

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 4789 | 2757 | 9 | 9 | 0.19% | 0.33% |  |
| B | 4789 | 2757 | 18 | 18 | 0.38% | 0.65% |  |
| C | 4789 | 2757 | 123 | 123 | 2.57% | 4.46% |  |
| D | 4789 | 2757 | 52 | 52 | 1.09% | 1.89% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 223 | 232945 | 3455.08 | 331 | 325 | 67.3 |
| A | 10 | 83 | 88379 | 1307.86 | 331 | 325 | 67.3 |
| A | 9 | 143 | 11994 | 173.32 | 331 | 325 | 67.3 |
| B | 5 | 172 | 63890 | 996.15 | 331 | 322 | 63.8 |
| B | 5 | 255 | 63784 | 994.49 | 331 | 322 | 63.8 |
| B | 4 | 171 | 62900 | 980.64 | 331 | 322 | 63.8 |
| C | 4 | 254 | 453305 | 6085.42 | 318 | 321 | 74.4 |
| C | 15 | 214 | 122129 | 1636.38 | 318 | 321 | 74.4 |
| C | 0 | 10 | 61390 | 820.41 | 318 | 321 | 74.4 |
| D | 12 | 6 | 179929 | 2284.58 | 320 | 311 | 78.6 |
| D | 12 | 233 | 98706 | 1251.5 | 320 | 311 | 78.6 |
| D | 2 | 153 | 53226 | 673.03 | 320 | 311 | 78.6 |

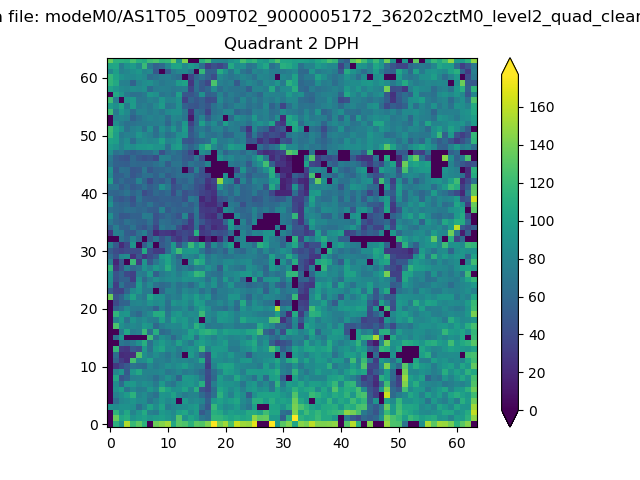

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

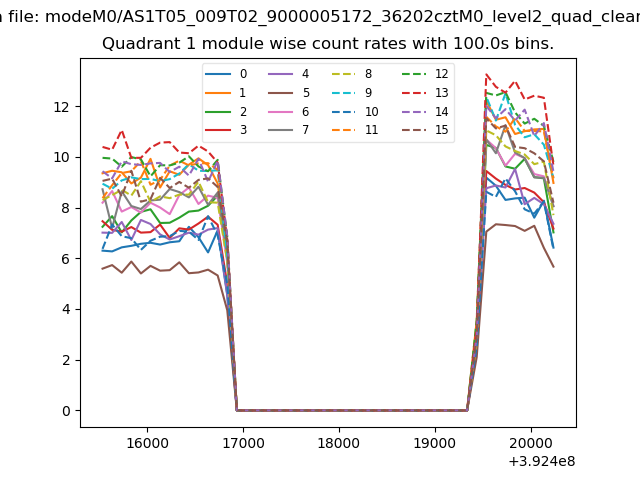

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

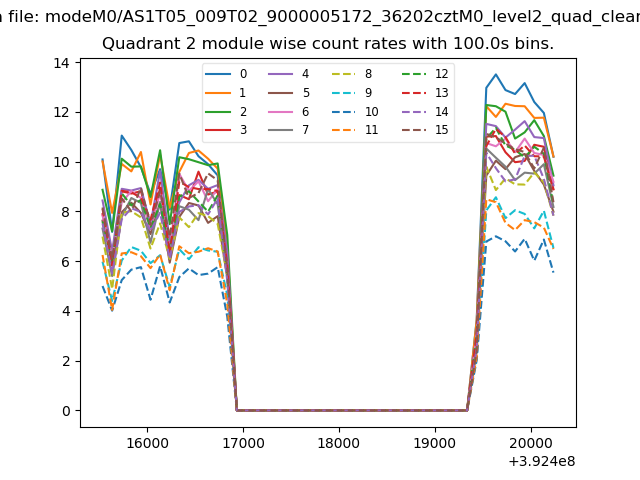

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

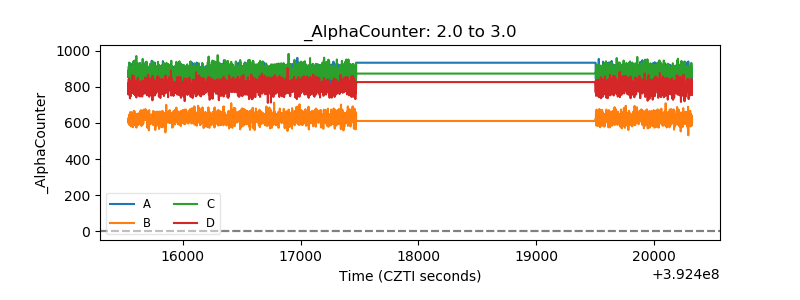

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

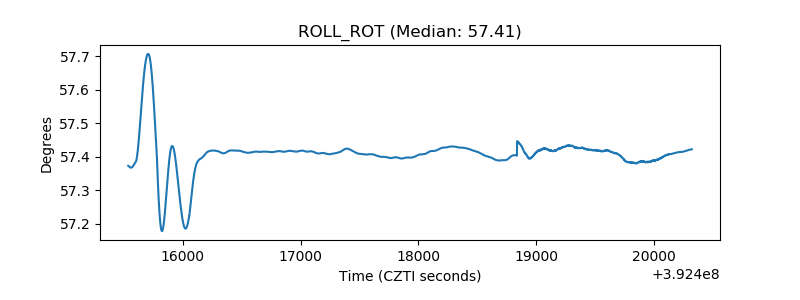

| _ROLL_ROT |  |

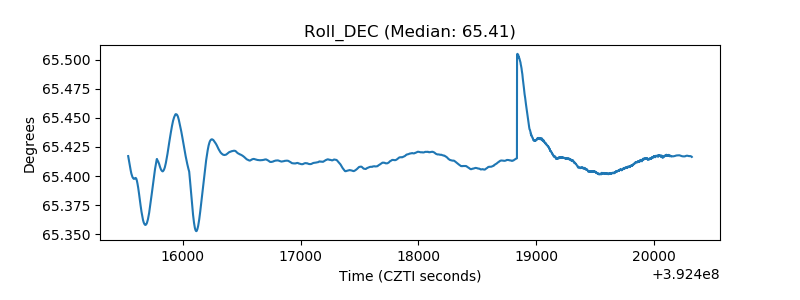

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
