| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A11_080T02_9000005176_36221cztM0_level2.evt | modeM0/AS1A11_080T02_9000005176_36221cztM0_level2_quad_clean.evt |
| Size (bytes) | 523,834,560 | 60,347,520 |
| Size | 499.6 MB | 57.6 MB |
| Events in quadrant A | 2,883,243 | 369,660 |
| Events in quadrant B | 3,663,818 | 370,080 |
| Events in quadrant C | 2,873,270 | 366,925 |
| Events in quadrant D | 6,073,317 | 337,379 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 23 | 0 |
| B | 0 | 23 | 0 |
| C | 0 | 23 | 0 |
| D | 0 | 24 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11873 | 3 |
| B | 0 | 14367 | 2 |
| C | 0 | 11787 | 2 |
| D | 0 | 21764 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 110 | 0 |
| B | 0 | 110 | 0 |
| C | 0 | 110 | 0 |
| D | 0 | 110 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5476 | 31 | 0.566107% |
| B | 5476 | 200 | 3.652301% |
| C | 5476 | 33 | 0.602630% |
| D | 5476 | 788 | 14.390066% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7118 | 5477 | 23 | 23 | 0.32% | 0.42% |  |
| B | 7118 | 5477 | 128 | 128 | 1.80% | 2.34% |  |
| C | 7118 | 5477 | 26 | 26 | 0.37% | 0.47% |  |
| D | 7118 | 5477 | 797 | 797 | 11.20% | 14.55% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 188189 | 1464.84 | 630 | 618 | 128.0 |
| A | 15 | 223 | 142344 | 1106.81 | 630 | 618 | 128.0 |
| A | 9 | 143 | 87245 | 676.51 | 630 | 618 | 128.0 |
| B | 5 | 172 | 503529 | 4214.1 | 621 | 604 | 119.3 |
| B | 5 | 236 | 366916 | 3069.4 | 621 | 604 | 119.3 |
| B | 0 | 213 | 142952 | 1192.76 | 621 | 604 | 119.3 |
| C | 15 | 214 | 229491 | 1585.81 | 614 | 616 | 144.3 |
| C | 0 | 207 | 167925 | 1159.24 | 614 | 616 | 144.3 |
| C | 0 | 10 | 82656 | 568.43 | 614 | 616 | 144.3 |
| D | 12 | 227 | 2378812 | 16516.72 | 583 | 566 | 144.0 |
| D | 12 | 6 | 747074 | 5184.43 | 583 | 566 | 144.0 |
| D | 2 | 250 | 191075 | 1323.07 | 583 | 566 | 144.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

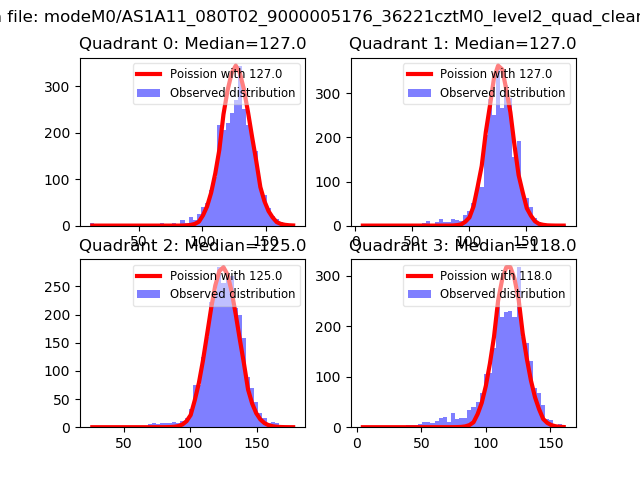

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

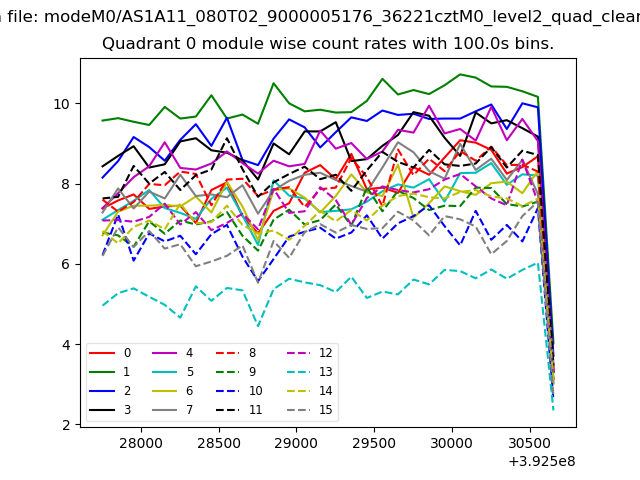

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

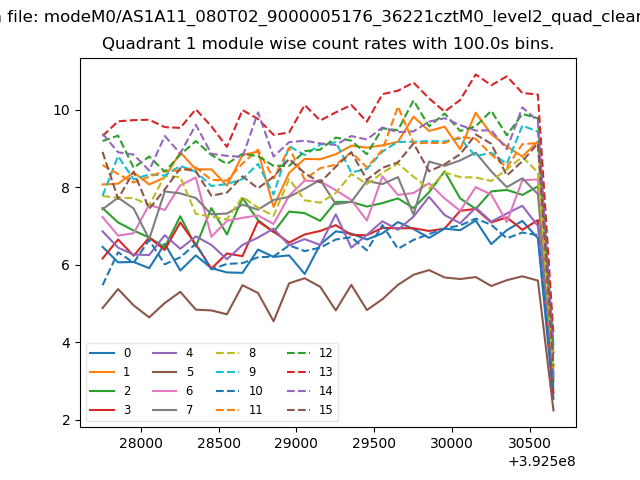

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
