| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A11_080T02_9000005176_36222cztM0_level2.evt | modeM0/AS1A11_080T02_9000005176_36222cztM0_level2_quad_clean.evt |
| Size (bytes) | 560,145,600 | 74,543,040 |
| Size | 534.2 MB | 71.1 MB |
| Events in quadrant A | 3,971,720 | 469,909 |
| Events in quadrant B | 4,050,586 | 473,266 |
| Events in quadrant C | 3,260,162 | 473,826 |
| Events in quadrant D | 5,279,662 | 425,028 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 30 | 0 |
| B | 0 | 30 | 0 |
| C | 0 | 30 | 0 |
| D | 0 | 30 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15588 | 3 |
| B | 0 | 15800 | 2 |
| C | 0 | 13179 | 2 |
| D | 0 | 19683 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 122 | 0 |
| B | 0 | 122 | 0 |
| C | 0 | 122 | 0 |
| D | 0 | 122 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5941 | 63 | 1.060428% |
| B | 5941 | 267 | 4.494193% |
| C | 5941 | 59 | 0.993099% |
| D | 5941 | 572 | 9.628009% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8956 | 5943 | 40 | 40 | 0.45% | 0.67% |  |
| B | 8956 | 5943 | 166 | 166 | 1.85% | 2.79% |  |
| C | 8956 | 5943 | 50 | 50 | 0.56% | 0.84% |  |
| D | 8956 | 5943 | 538 | 538 | 6.01% | 9.05% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 223 | 1070467 | 7701.12 | 683 | 669 | 138.9 |
| A | 10 | 83 | 197851 | 1419.45 | 683 | 669 | 138.9 |
| A | 9 | 143 | 41817 | 296.21 | 683 | 669 | 138.9 |
| B | 5 | 172 | 563909 | 4385.5 | 673 | 653 | 128.4 |
| B | 5 | 236 | 438101 | 3405.96 | 673 | 653 | 128.4 |
| B | 0 | 213 | 187627 | 1455.77 | 673 | 653 | 128.4 |
| C | 0 | 207 | 316850 | 2020.91 | 668 | 670 | 156.5 |
| C | 15 | 214 | 250601 | 1597.47 | 668 | 670 | 156.5 |
| C | 0 | 10 | 75277 | 476.86 | 668 | 670 | 156.5 |
| D | 12 | 227 | 1373064 | 8599.98 | 643 | 623 | 159.6 |
| D | 12 | 235 | 417543 | 2612.5 | 643 | 623 | 159.6 |
| D | 12 | 6 | 364470 | 2279.94 | 643 | 623 | 159.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

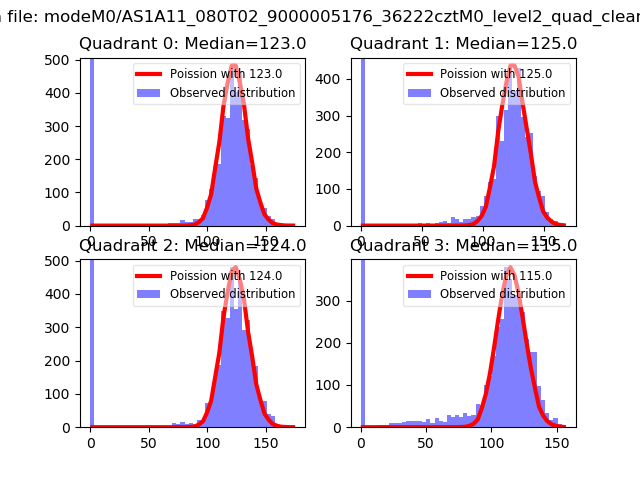

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

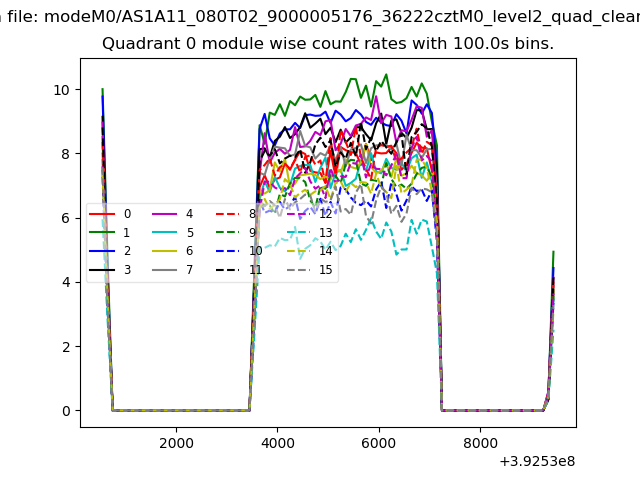

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

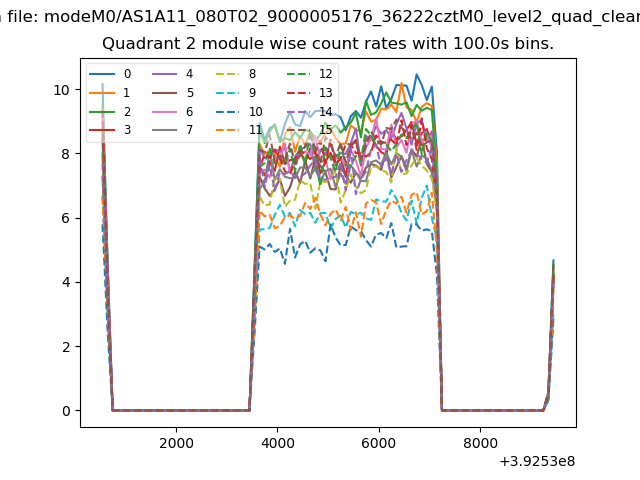

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

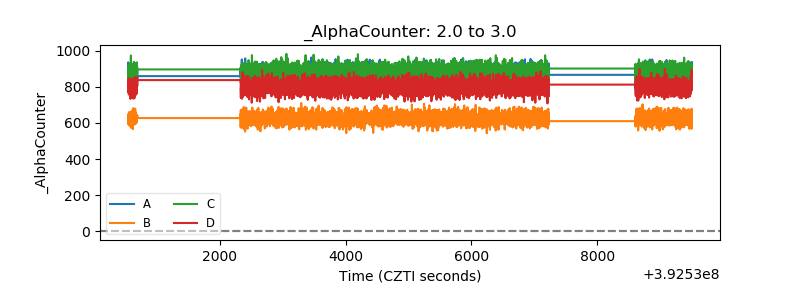

| Alpha Counter |  |
| _CPM_Rate |  |

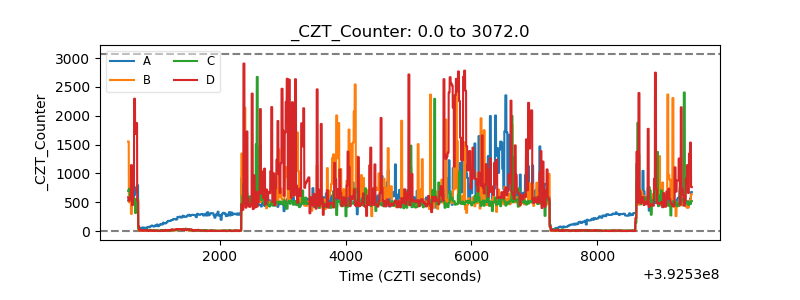

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

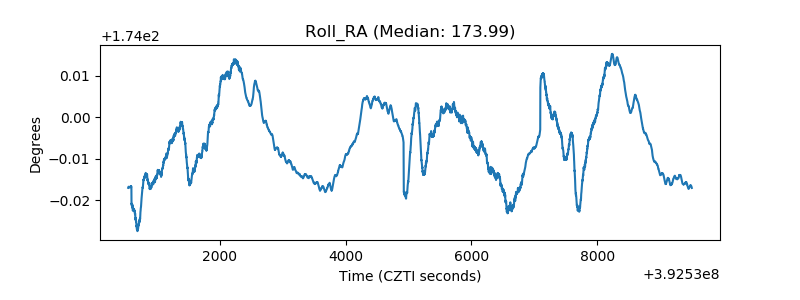

| _Roll_RA |  |
| Veto Counter |  |
