| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A11_080T02_9000005176_36226cztM0_level2.evt | modeM0/AS1A11_080T02_9000005176_36226cztM0_level2_quad_clean.evt |
| Size (bytes) | 969,909,120 | 100,895,040 |
| Size | 925.0 MB | 96.2 MB |
| Events in quadrant A | 4,015,365 | 681,031 |
| Events in quadrant B | 6,416,189 | 651,339 |
| Events in quadrant C | 4,080,718 | 672,082 |
| Events in quadrant D | 14,311,778 | 483,143 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 29 | 0 |
| B | 0 | 29 | 0 |
| C | 0 | 29 | 0 |
| D | 0 | 29 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17279 | 3 |
| B | 0 | 24365 | 2 |
| C | 0 | 17037 | 2 |
| D | 0 | 48070 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 168 | 0 |
| B | 0 | 168 | 0 |
| C | 0 | 168 | 0 |
| D | 0 | 168 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 8145 | 36 | 0.441989% |
| B | 8145 | 649 | 7.968079% |
| C | 8145 | 60 | 0.736648% |
| D | 8145 | 3937 | 48.336403% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

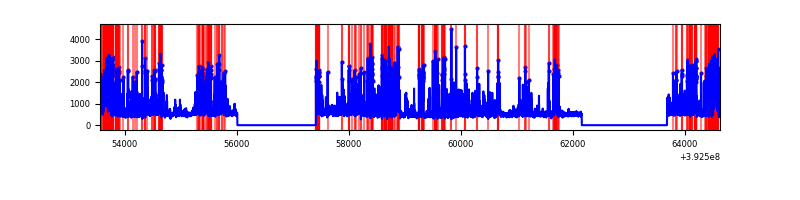

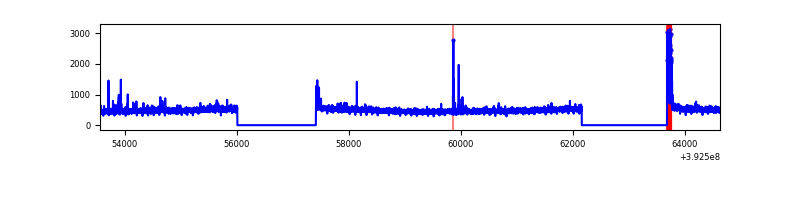

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 11071 | 8147 | 18 | 18 | 0.16% | 0.22% |  |
| B | 11071 | 8147 | 485 | 485 | 4.38% | 5.95% |  |
| C | 11071 | 8147 | 34 | 34 | 0.31% | 0.42% |  |
| D | 11071 | 8147 | 3759 | 3759 | 33.95% | 46.14% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 248280 | 1318.41 | 926 | 905 | 187.6 |
| A | 9 | 143 | 81369 | 428.84 | 926 | 905 | 187.6 |
| A | 15 | 223 | 73201 | 385.31 | 926 | 905 | 187.6 |
| B | 5 | 236 | 1315705 | 7665.6 | 898 | 875 | 171.5 |
| B | 5 | 172 | 498424 | 2900.77 | 898 | 875 | 171.5 |
| B | 0 | 213 | 472662 | 2750.57 | 898 | 875 | 171.5 |
| C | 15 | 214 | 340327 | 1605.39 | 907 | 913 | 211.4 |
| C | 0 | 10 | 155839 | 732.78 | 907 | 913 | 211.4 |
| C | 0 | 207 | 42462 | 196.52 | 907 | 913 | 211.4 |
| D | 12 | 227 | 10002728 | 56254.48 | 722 | 702 | 177.8 |
| D | 12 | 235 | 389760 | 2188.18 | 722 | 702 | 177.8 |
| D | 2 | 250 | 345690 | 1940.32 | 722 | 702 | 177.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

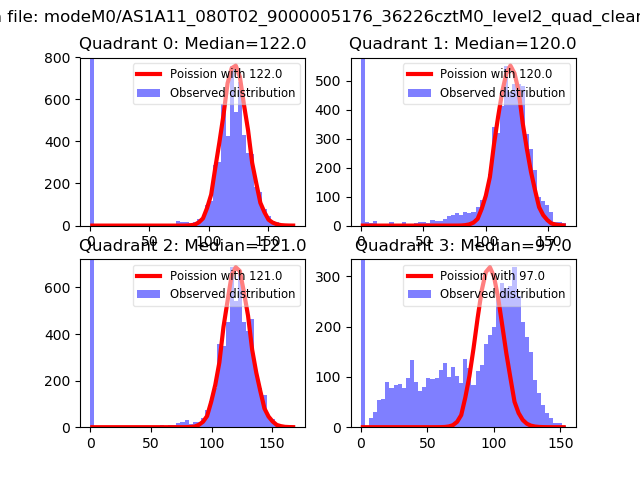

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

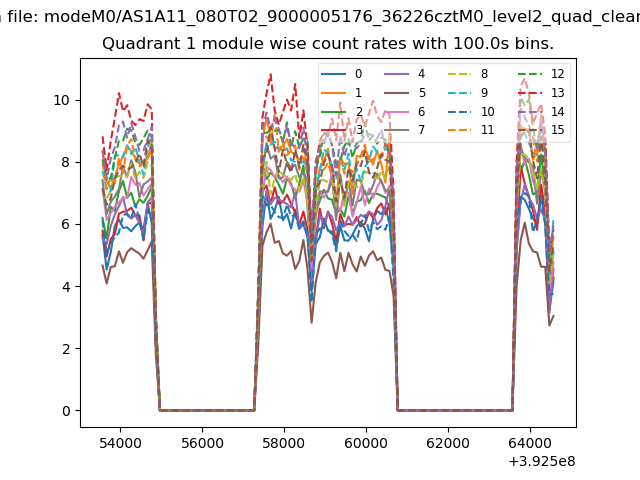

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

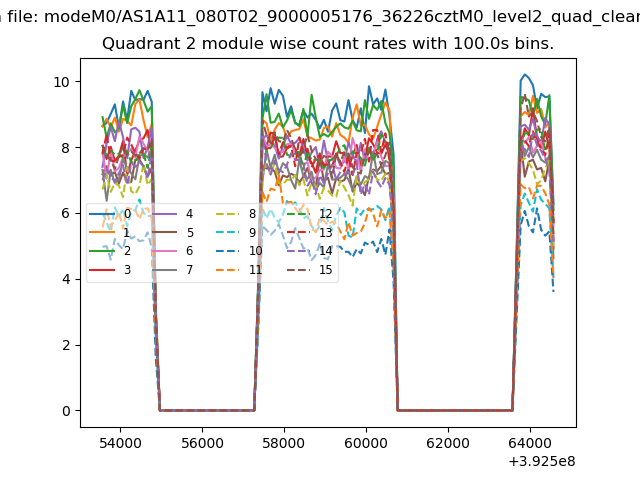

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

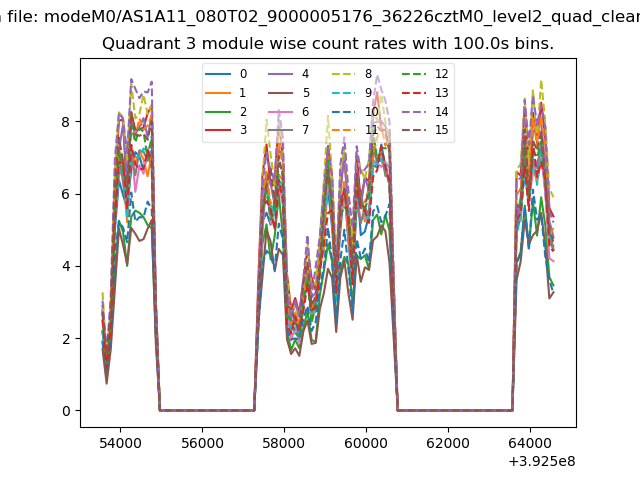

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

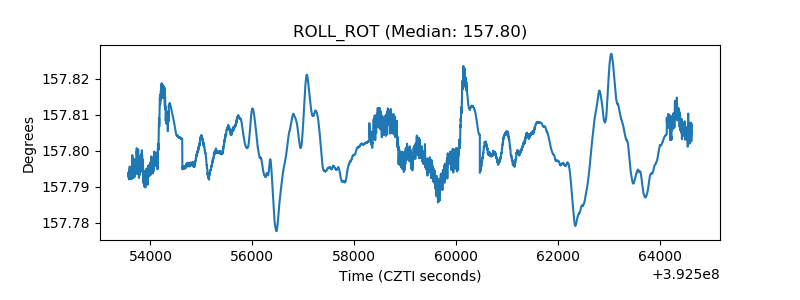

| _ROLL_ROT |  |
| _Roll_DEC |  |

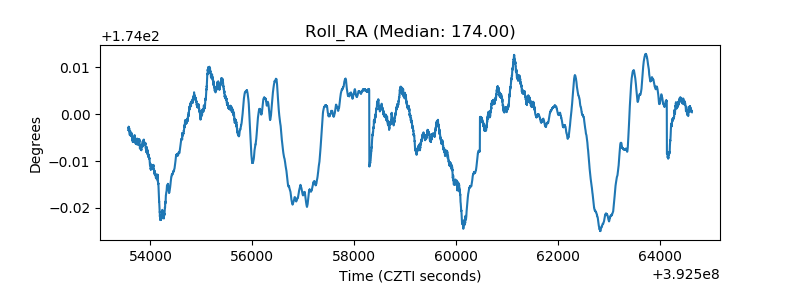

| _Roll_RA |  |
| Veto Counter |  |
