| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A11_080T02_9000005176_36229cztM0_level2.evt | modeM0/AS1A11_080T02_9000005176_36229cztM0_level2_quad_clean.evt |
| Size (bytes) | 697,639,680 | 61,986,240 |
| Size | 665.3 MB | 59.1 MB |
| Events in quadrant A | 2,606,360 | 436,010 |
| Events in quadrant B | 4,120,430 | 420,354 |
| Events in quadrant C | 2,848,829 | 427,436 |
| Events in quadrant D | 11,193,705 | 220,414 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18 | 0 |
| B | 0 | 18 | 0 |
| C | 0 | 18 | 0 |
| D | 0 | 18 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11168 | 4 |
| B | 0 | 15782 | 2 |
| C | 0 | 11707 | 2 |
| D | 0 | 36824 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 108 | 0 |
| B | 0 | 108 | 0 |
| C | 0 | 108 | 0 |
| D | 0 | 108 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5302 | 7 | 0.132026% |
| B | 5302 | 392 | 7.393436% |
| C | 5302 | 50 | 0.943040% |
| D | 5302 | 3670 | 69.219163% |

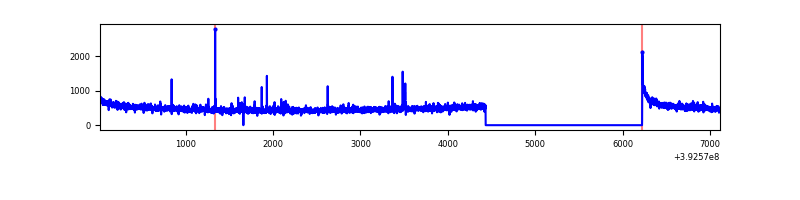

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7095 | 5304 | 2 | 2 | 0.03% | 0.04% |  |
| B | 7094 | 5303 | 267 | 267 | 3.76% | 5.03% |  |
| C | 7095 | 5304 | 36 | 36 | 0.51% | 0.68% |  |
| D | 7095 | 5304 | 3516 | 3516 | 49.56% | 66.29% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 171689 | 1382.2 | 613 | 602 | 123.8 |
| A | 13 | 6 | 25594 | 201.91 | 613 | 602 | 123.8 |
| A | 9 | 143 | 18918 | 147.97 | 613 | 602 | 123.8 |
| B | 5 | 236 | 832093 | 7370.98 | 595 | 580 | 112.8 |
| B | 5 | 172 | 371970 | 3292.2 | 595 | 580 | 112.8 |
| B | 0 | 213 | 317927 | 2813.14 | 595 | 580 | 112.8 |
| C | 0 | 10 | 275024 | 1964.49 | 598 | 602 | 139.7 |
| C | 15 | 214 | 223175 | 1593.32 | 598 | 602 | 139.7 |
| C | 12 | 250 | 14705 | 100.96 | 598 | 602 | 139.7 |
| D | 12 | 227 | 6802745 | 71893.04 | 385 | 374 | 94.6 |
| D | 12 | 6 | 2332125 | 24643.86 | 385 | 374 | 94.6 |
| D | 12 | 235 | 373939 | 3948.14 | 385 | 374 | 94.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

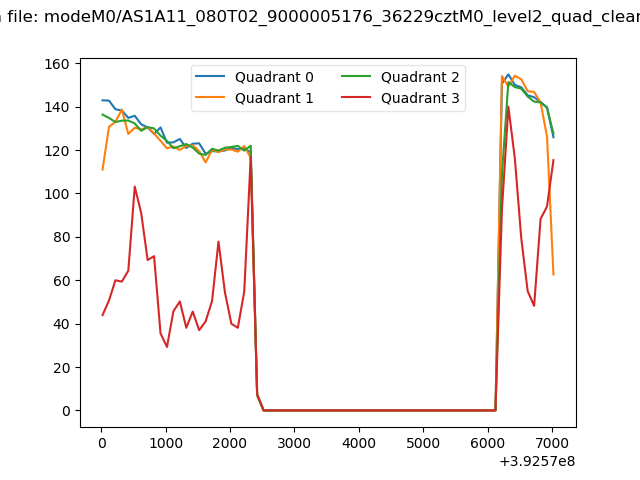

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

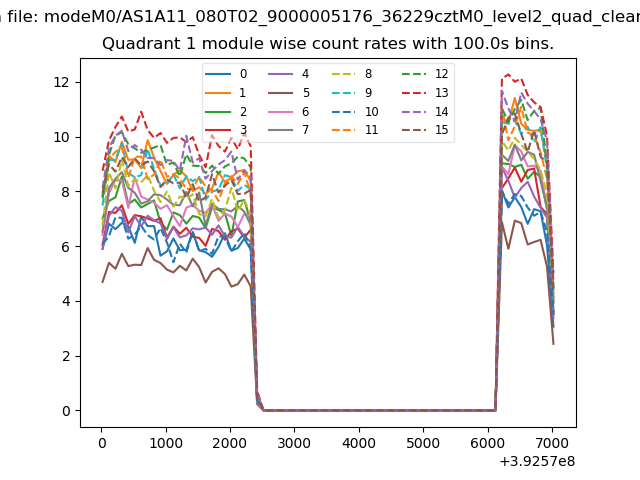

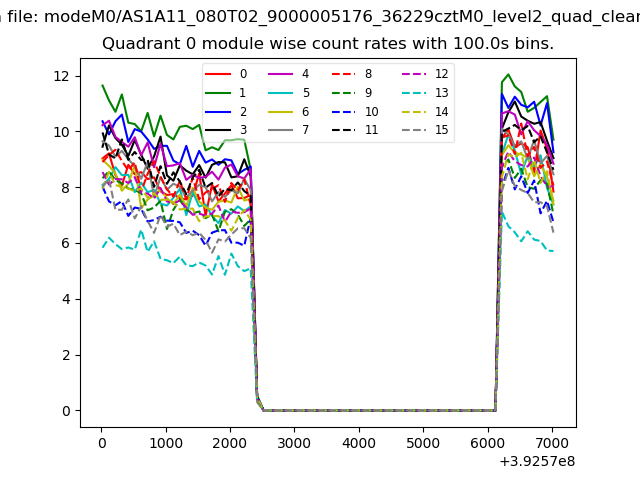

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

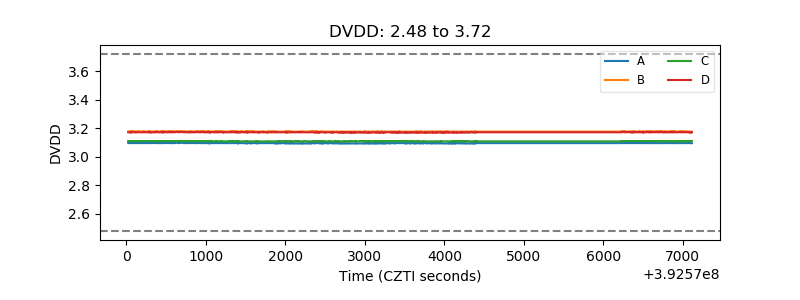

| D_VDD |  |

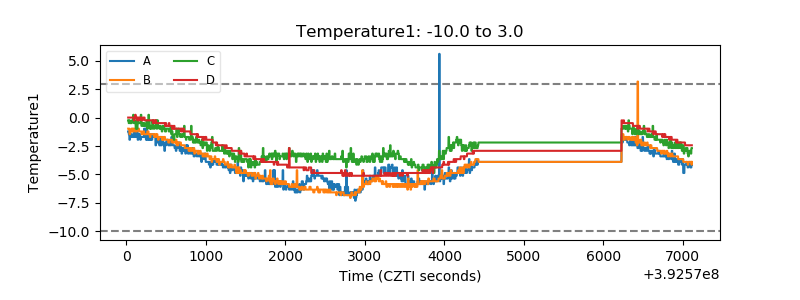

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

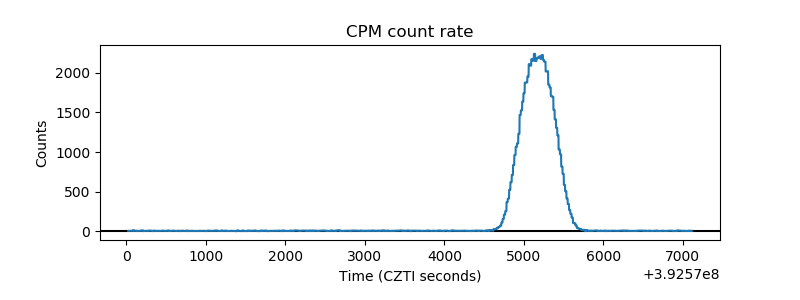

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

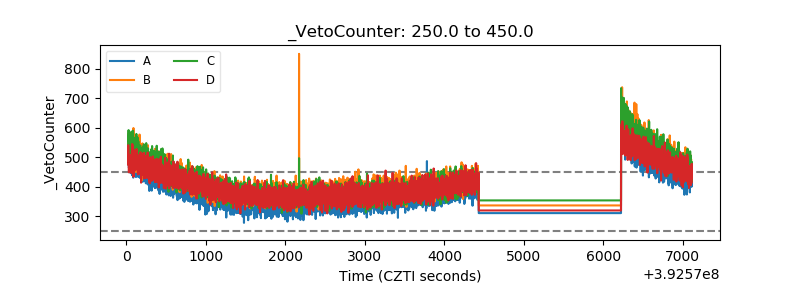

| Veto Counter |  |
