| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_071T34_9000005178_36242cztM0_level2.evt | modeM0/AS1A10_071T34_9000005178_36242cztM0_level2_quad_clean.evt |
| Size (bytes) | 421,439,040 | 76,746,240 |
| Size | 401.9 MB | 73.2 MB |
| Events in quadrant A | 2,672,162 | 497,385 |
| Events in quadrant B | 3,136,391 | 494,446 |
| Events in quadrant C | 2,814,607 | 488,749 |
| Events in quadrant D | 3,770,907 | 463,006 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 110 | 0 |
| B | 0 | 110 | 0 |
| C | 0 | 110 | 0 |
| D | 0 | 110 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 22 | 0 |
| B | 0 | 22 | 0 |
| C | 0 | 22 | 0 |
| D | 0 | 23 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11523 | 3 |
| B | 0 | 12856 | 2 |
| C | 0 | 11634 | 2 |
| D | 0 | 14955 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5435 | 14 | 0.257590% |
| B | 5435 | 104 | 1.913523% |
| C | 5435 | 39 | 0.717571% |
| D | 5435 | 165 | 3.035879% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7138 | 5436 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7138 | 5436 | 66 | 66 | 0.92% | 1.21% |  |
| C | 7138 | 5436 | 21 | 21 | 0.29% | 0.39% |  |
| D | 7138 | 5436 | 146 | 146 | 2.05% | 2.69% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 183506 | 1404.14 | 639 | 625 | 130.2 |
| A | 9 | 143 | 15830 | 116.74 | 639 | 625 | 130.2 |
| A | 13 | 254 | 9407 | 67.43 | 639 | 625 | 130.2 |
| B | 5 | 236 | 305977 | 2505.77 | 632 | 615 | 121.9 |
| B | 5 | 172 | 187644 | 1534.74 | 632 | 615 | 121.9 |
| B | 0 | 190 | 106623 | 869.89 | 632 | 615 | 121.9 |
| C | 15 | 214 | 226564 | 1531.43 | 623 | 627 | 147.5 |
| C | 0 | 10 | 155115 | 1047.14 | 623 | 627 | 147.5 |
| C | 13 | 61 | 4209 | 24.28 | 623 | 627 | 147.5 |
| D | 12 | 235 | 466623 | 3110.45 | 617 | 600 | 149.8 |
| D | 12 | 6 | 301425 | 2007.84 | 617 | 600 | 149.8 |
| D | 13 | 171 | 147668 | 981.6 | 617 | 600 | 149.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

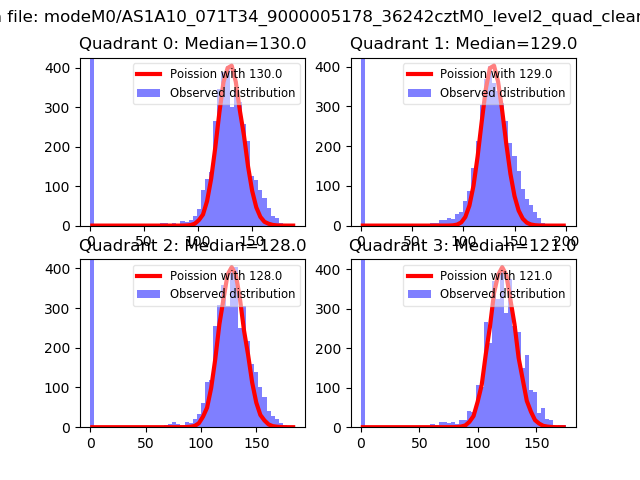

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

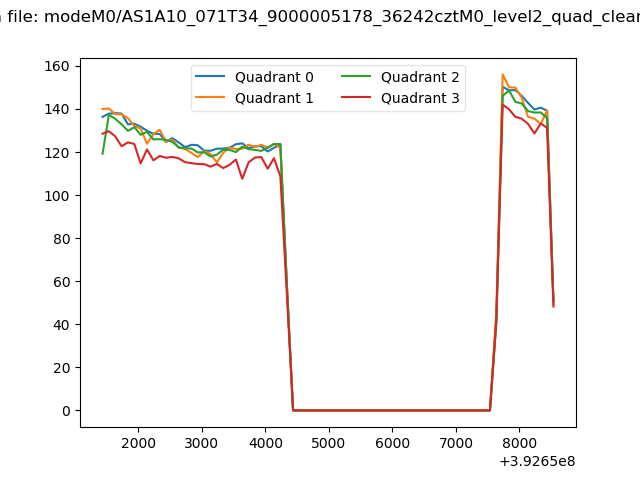

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

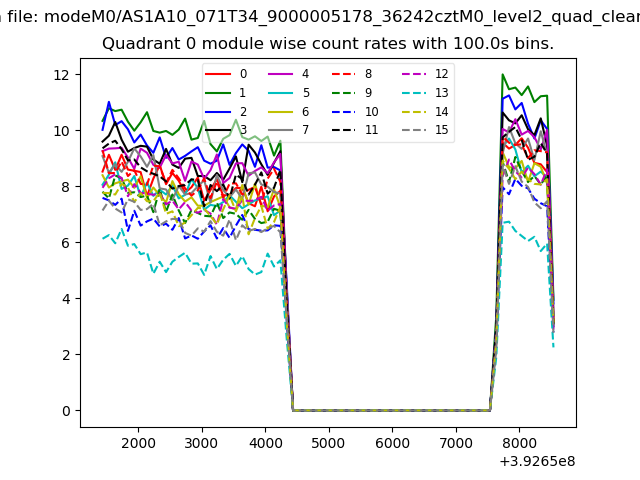

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

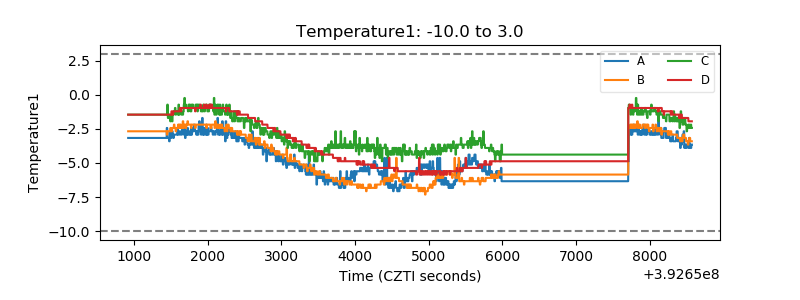

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

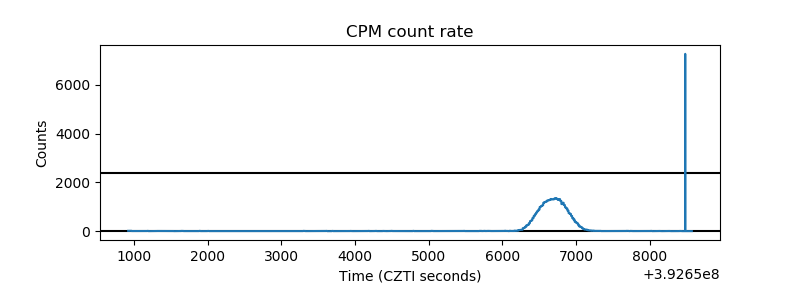

| _CPM_Rate |  |

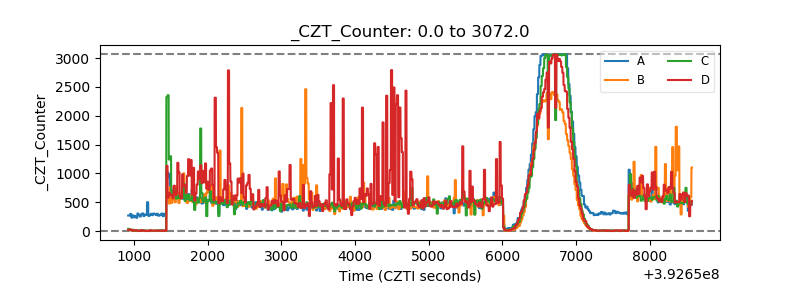

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

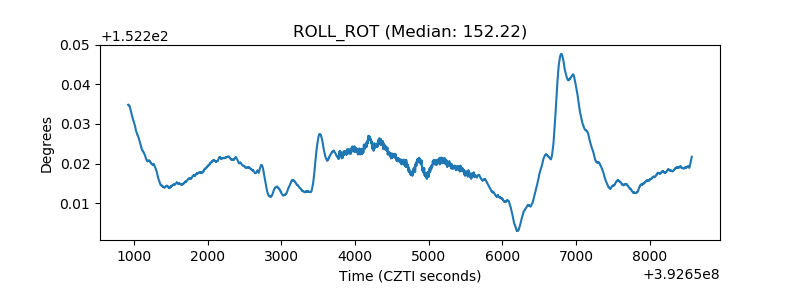

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

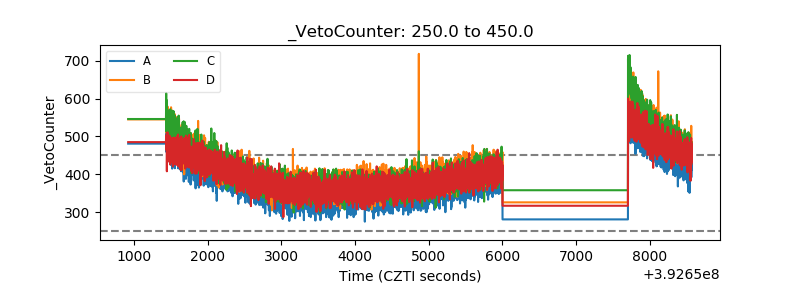

| Veto Counter |  |
