| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_071T36_9000005182_36263cztM0_level2.evt | modeM0/AS1A10_071T36_9000005182_36263cztM0_level2_quad_clean.evt |
| Size (bytes) | 418,898,880 | 50,768,640 |
| Size | 399.5 MB | 48.4 MB |
| Events in quadrant A | 2,511,758 | 303,984 |
| Events in quadrant B | 2,854,619 | 311,856 |
| Events in quadrant C | 2,748,235 | 297,957 |
| Events in quadrant D | 4,235,770 | 276,002 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 102 | 0 |
| B | 0 | 102 | 0 |
| C | 0 | 102 | 0 |
| D | 0 | 102 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 30 | 0 |
| B | 0 | 30 | 0 |
| C | 0 | 30 | 0 |
| D | 0 | 31 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10499 | 3 |
| B | 0 | 11622 | 2 |
| C | 0 | 11094 | 2 |
| D | 0 | 15908 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 4943 | 18 | 0.364151% |
| B | 4943 | 74 | 1.497067% |
| C | 4943 | 59 | 1.193607% |
| D | 4943 | 321 | 6.494032% |

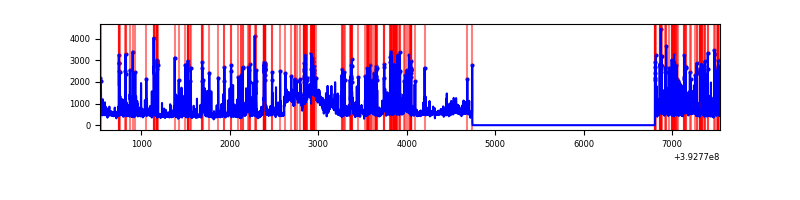

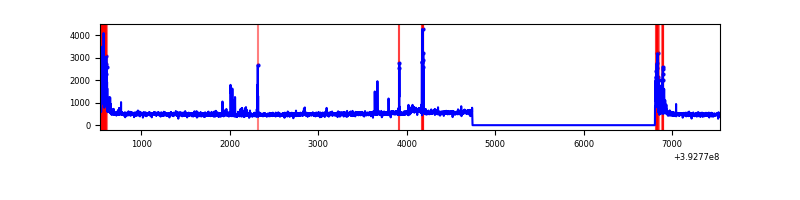

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7006 | 4944 | 7 | 7 | 0.10% | 0.14% |  |
| B | 7006 | 4944 | 58 | 58 | 0.83% | 1.17% |  |
| C | 7006 | 4944 | 53 | 53 | 0.76% | 1.07% |  |
| D | 7006 | 4944 | 303 | 303 | 4.32% | 6.13% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 167244 | 1402.34 | 583 | 570 | 118.9 |
| A | 9 | 143 | 69799 | 582.47 | 583 | 570 | 118.9 |
| A | 10 | 255 | 16740 | 136.05 | 583 | 570 | 118.9 |
| B | 5 | 172 | 320310 | 2849.57 | 582 | 570 | 112.2 |
| B | 5 | 236 | 117344 | 1040.71 | 582 | 570 | 112.2 |
| B | 8 | 128 | 30310 | 265.05 | 582 | 570 | 112.2 |
| C | 0 | 10 | 220583 | 1665.4 | 566 | 570 | 132.1 |
| C | 15 | 214 | 206978 | 1562.41 | 566 | 570 | 132.1 |
| C | 0 | 207 | 70021 | 525.71 | 566 | 570 | 132.1 |
| D | 12 | 6 | 743704 | 5467.36 | 548 | 533 | 135.9 |
| D | 13 | 249 | 550872 | 4048.73 | 548 | 533 | 135.9 |
| D | 1 | 216 | 338374 | 2485.43 | 548 | 533 | 135.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

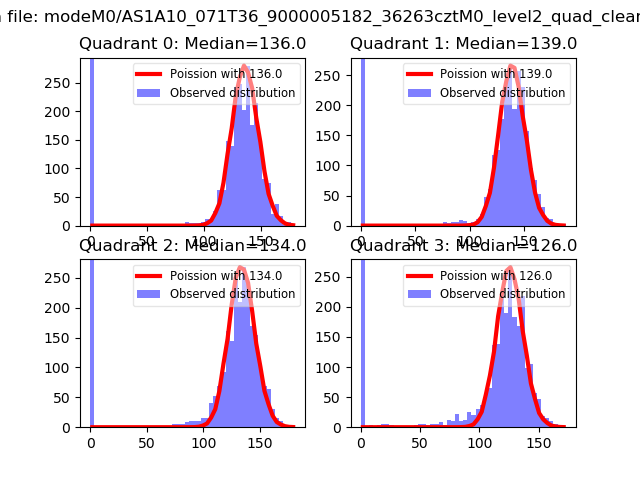

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

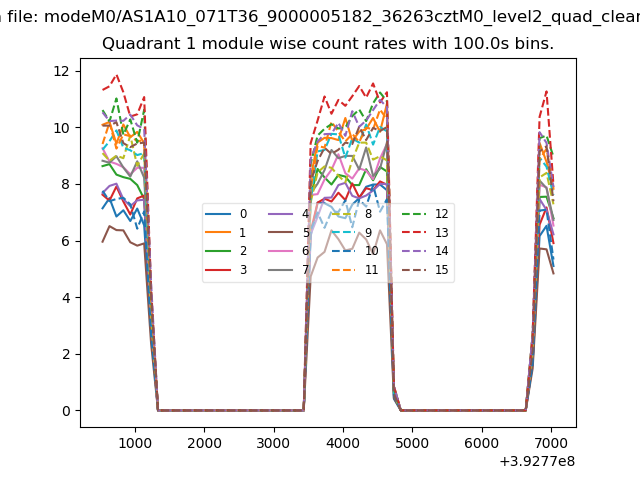

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

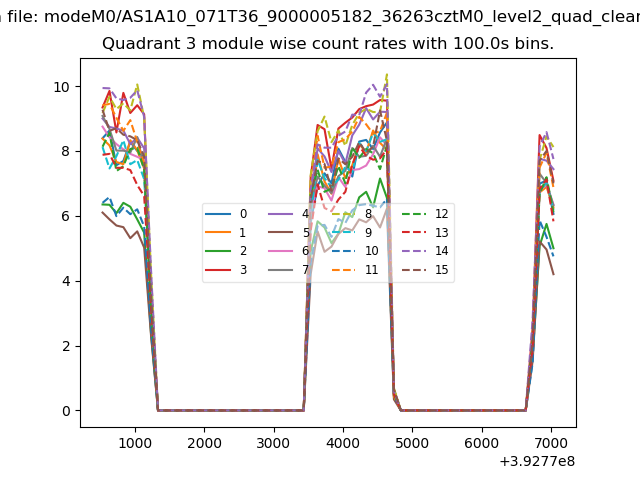

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |

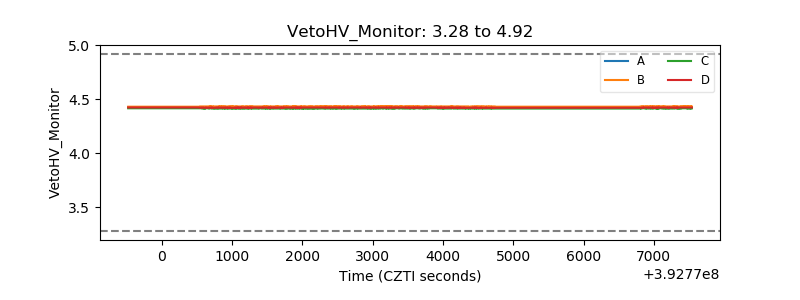

| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

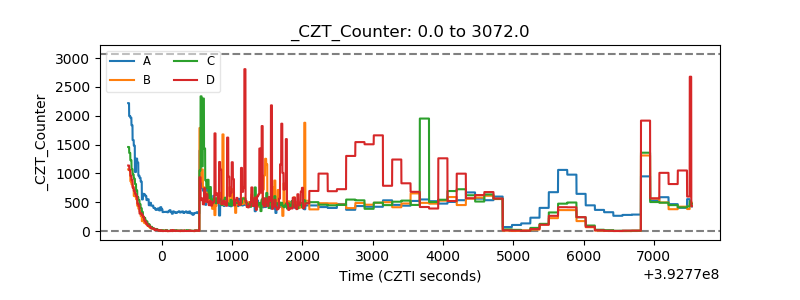

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

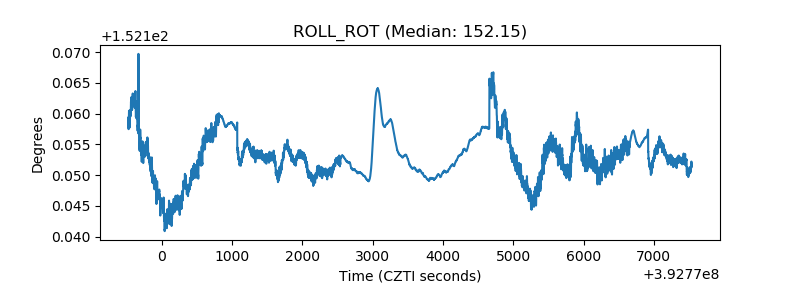

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
