| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_071T35_9000005184_36281cztM0_level2.evt | modeM0/AS1A10_071T35_9000005184_36281cztM0_level2_quad_clean.evt |
| Size (bytes) | 483,266,880 | 73,543,680 |
| Size | 460.9 MB | 70.1 MB |
| Events in quadrant A | 3,016,645 | 457,184 |
| Events in quadrant B | 3,486,565 | 459,696 |
| Events in quadrant C | 3,395,323 | 452,774 |
| Events in quadrant D | 4,311,908 | 419,770 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12822 | 3 |
| B | 0 | 14406 | 2 |
| C | 0 | 13716 | 2 |
| D | 0 | 16994 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 26 | 0 |
| B | 0 | 26 | 0 |
| C | 0 | 26 | 0 |
| D | 0 | 26 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6263 | 10 | 0.159668% |
| B | 6263 | 181 | 2.889989% |
| C | 6263 | 29 | 0.463037% |
| D | 6263 | 262 | 4.183299% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8887 | 6265 | 0 | 0 | 0.00% | 0.00% |  |
| B | 8887 | 6265 | 139 | 139 | 1.56% | 2.22% |  |
| C | 8887 | 6265 | 17 | 17 | 0.19% | 0.27% |  |
| D | 8887 | 6265 | 245 | 245 | 2.76% | 3.91% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 192363 | 1298.44 | 724 | 711 | 147.6 |
| A | 13 | 6 | 14873 | 95.94 | 724 | 711 | 147.6 |
| A | 13 | 254 | 10076 | 63.44 | 724 | 711 | 147.6 |
| B | 8 | 128 | 331153 | 2381.95 | 710 | 690 | 138.7 |
| B | 5 | 172 | 287565 | 2067.77 | 710 | 690 | 138.7 |
| B | 0 | 219 | 24517 | 171.74 | 710 | 690 | 138.7 |
| C | 15 | 214 | 261561 | 1570.75 | 704 | 708 | 166.1 |
| C | 0 | 207 | 217976 | 1308.3 | 704 | 708 | 166.1 |
| C | 0 | 10 | 139137 | 833.56 | 704 | 708 | 166.1 |
| D | 12 | 6 | 610195 | 3549.51 | 692 | 671 | 171.7 |
| D | 12 | 227 | 369469 | 2147.66 | 692 | 671 | 171.7 |
| D | 13 | 249 | 224509 | 1303.5 | 692 | 671 | 171.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

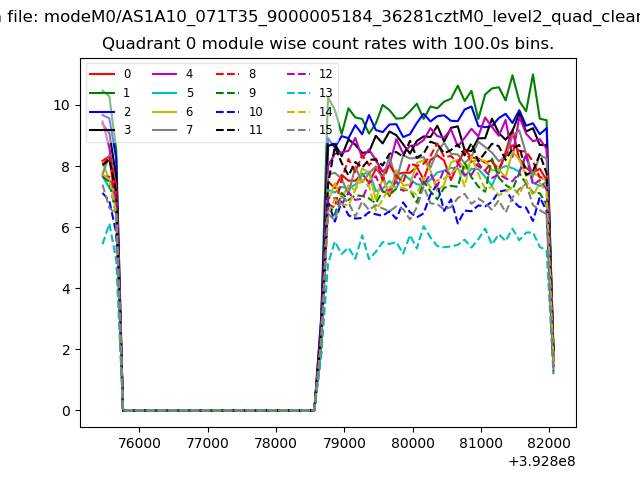

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

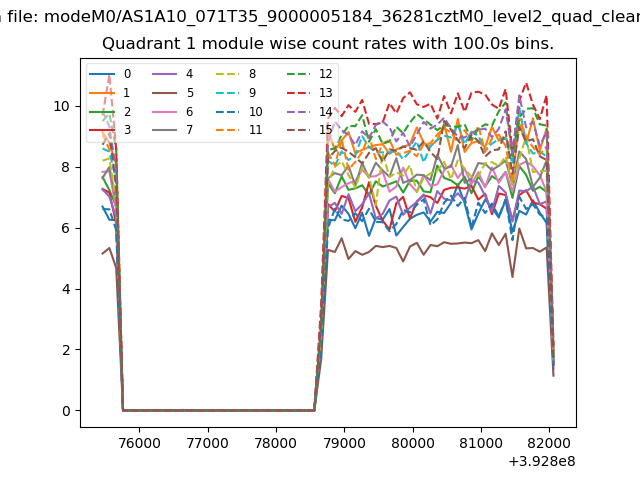

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

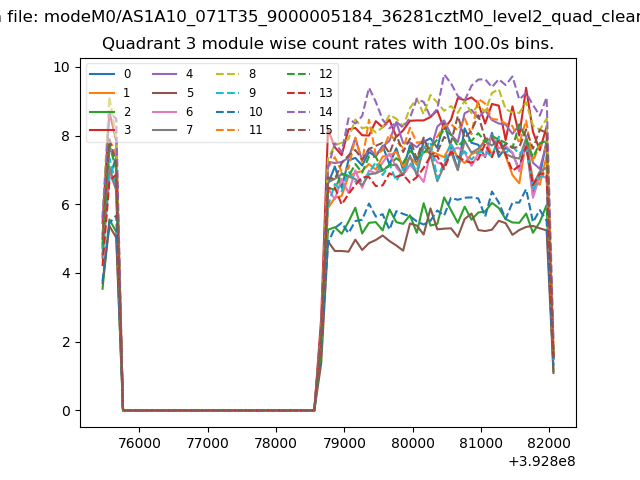

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

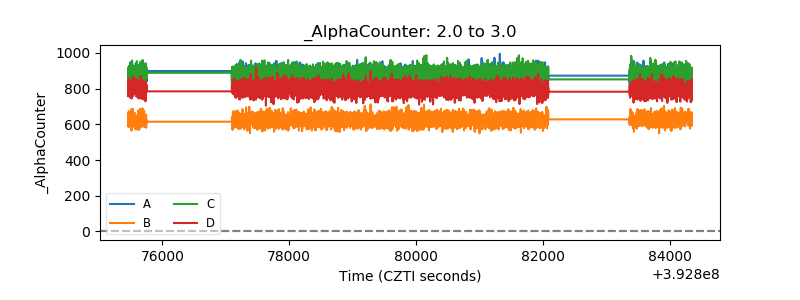

| Alpha Counter |  |

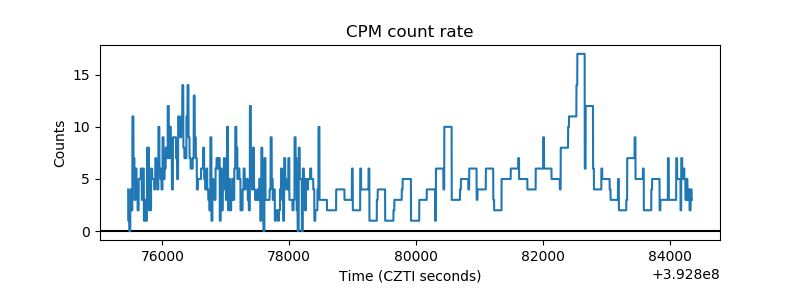

| _CPM_Rate |  |

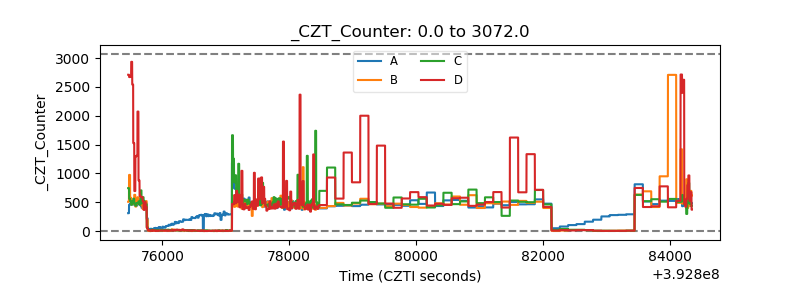

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

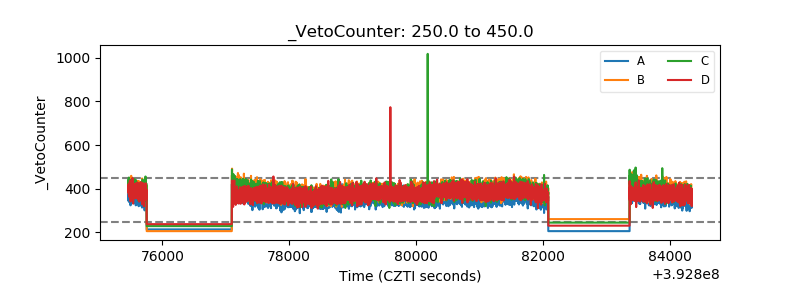

| Veto Counter |  |
