| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_071T33_9000005186_36285cztM0_level2.evt | modeM0/AS1A10_071T33_9000005186_36285cztM0_level2_quad_clean.evt |
| Size (bytes) | 257,184,000 | 33,393,600 |
| Size | 245.3 MB | 31.8 MB |
| Events in quadrant A | 1,422,707 | 216,029 |
| Events in quadrant B | 2,610,991 | 180,900 |
| Events in quadrant C | 1,511,088 | 212,805 |
| Events in quadrant D | 2,052,390 | 200,747 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 6002 | 2 |
| B | 0 | 9569 | 1 |
| C | 0 | 6096 | 1 |
| D | 0 | 7908 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 58 | 0 |
| B | 0 | 58 | 0 |
| C | 0 | 58 | 0 |
| D | 0 | 58 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17 | 0 |
| B | 0 | 17 | 0 |
| C | 0 | 17 | 0 |
| D | 0 | 17 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 2798 | 10 | 0.357398% |
| B | 2798 | 523 | 18.691923% |
| C | 2798 | 18 | 0.643317% |
| D | 2798 | 112 | 4.002859% |

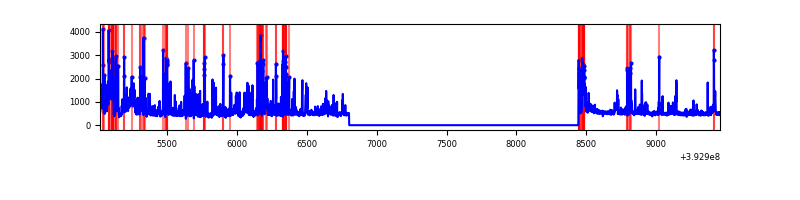

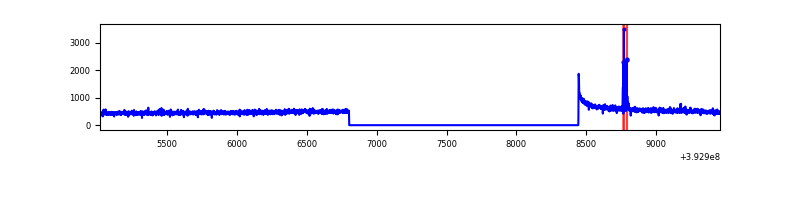

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 4440 | 2799 | 5 | 5 | 0.11% | 0.18% |  |
| B | 4440 | 2799 | 360 | 360 | 8.11% | 12.86% |  |
| C | 4440 | 2799 | 15 | 15 | 0.34% | 0.54% |  |
| D | 4440 | 2799 | 107 | 107 | 2.41% | 3.82% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 92321 | 1341.6 | 335 | 328 | 68.6 |
| A | 9 | 143 | 27077 | 390.1 | 335 | 328 | 68.6 |
| A | 13 | 6 | 6260 | 86.51 | 335 | 328 | 68.6 |
| B | 4 | 171 | 997834 | 16712.02 | 299 | 290 | 59.7 |
| B | 8 | 128 | 193499 | 3236.86 | 299 | 290 | 59.7 |
| B | 5 | 172 | 150992 | 2524.74 | 299 | 290 | 59.7 |
| C | 15 | 214 | 117425 | 1509.2 | 325 | 327 | 77.6 |
| C | 0 | 10 | 97093 | 1247.16 | 325 | 327 | 77.6 |
| C | 0 | 207 | 23522 | 298.95 | 325 | 327 | 77.6 |
| D | 12 | 6 | 351866 | 4432.57 | 320 | 312 | 79.3 |
| D | 13 | 171 | 261013 | 3287.05 | 320 | 312 | 79.3 |
| D | 13 | 249 | 67053 | 841.5 | 320 | 312 | 79.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

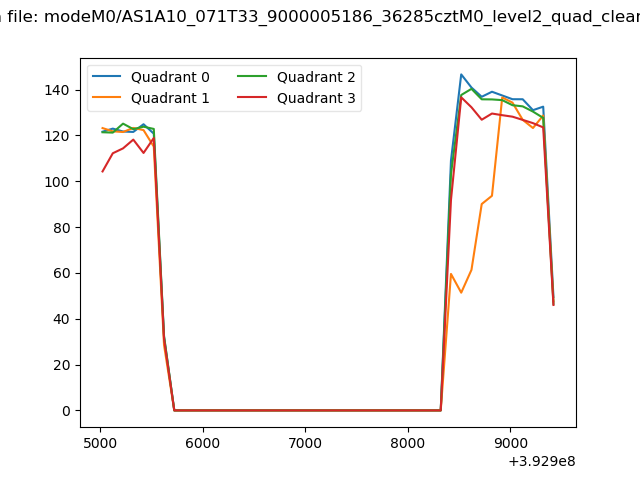

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

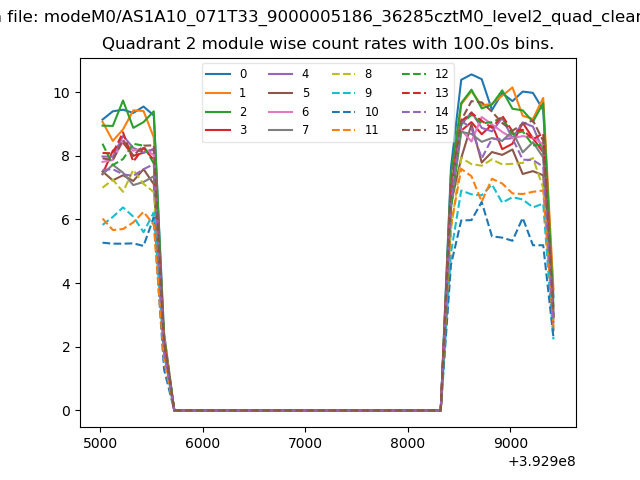

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

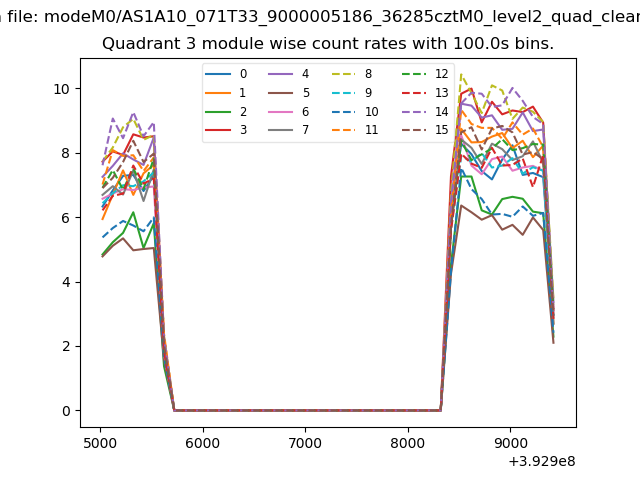

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

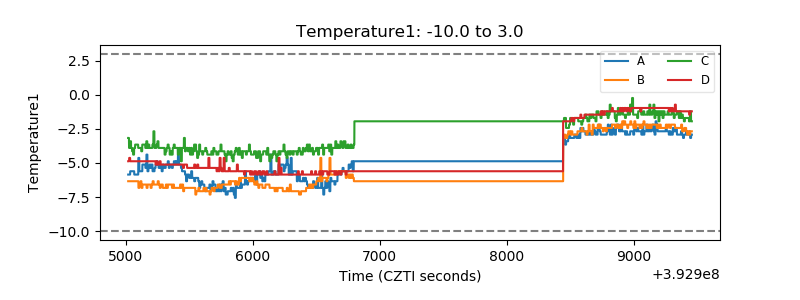

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

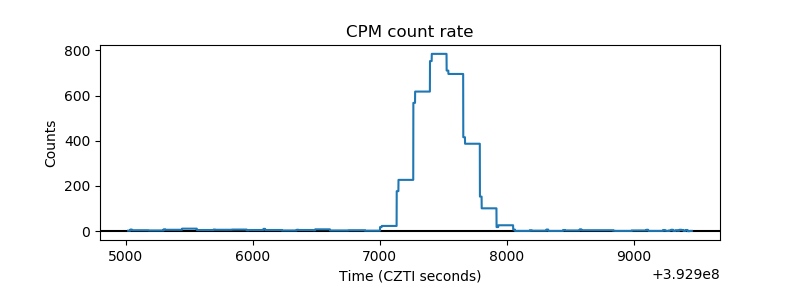

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

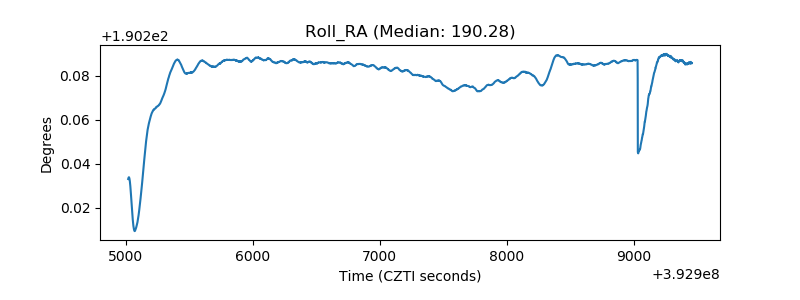

| _Roll_RA |  |
| Veto Counter |  |
