| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A11_089T02_9000005188_36302cztM0_level2.evt | modeM0/AS1A11_089T02_9000005188_36302cztM0_level2_quad_clean.evt |
| Size (bytes) | 518,014,080 | 85,720,320 |
| Size | 494.0 MB | 81.7 MB |
| Events in quadrant A | 2,908,466 | 596,100 |
| Events in quadrant B | 5,532,712 | 499,820 |
| Events in quadrant C | 3,122,209 | 569,168 |
| Events in quadrant D | 3,755,234 | 548,961 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 19 | 0 |
| B | 0 | 19 | 0 |
| C | 0 | 19 | 0 |
| D | 0 | 19 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12047 | 3 |
| B | 0 | 19986 | 2 |
| C | 0 | 12647 | 2 |
| D | 0 | 14676 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 110 | 0 |
| B | 0 | 110 | 0 |
| C | 0 | 110 | 0 |
| D | 0 | 110 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5450 | 24 | 0.440367% |
| B | 5450 | 1139 | 20.899083% |
| C | 5450 | 75 | 1.376147% |
| D | 5451 | 186 | 3.412218% |

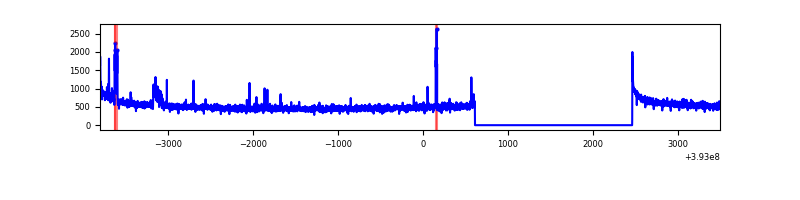

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7303 | 5451 | 5 | 5 | 0.07% | 0.09% |  |
| B | 7302 | 5450 | 958 | 958 | 13.12% | 17.58% |  |
| C | 7303 | 5451 | 58 | 58 | 0.79% | 1.06% |  |
| D | 7304 | 5452 | 186 | 186 | 2.55% | 3.41% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 192905 | 1426.61 | 666 | 654 | 134.8 |
| A | 15 | 223 | 74618 | 548.85 | 666 | 654 | 134.8 |
| A | 13 | 6 | 22833 | 164.58 | 666 | 654 | 134.8 |
| B | 5 | 172 | 1898773 | 16988.09 | 584 | 571 | 111.7 |
| B | 5 | 236 | 649274 | 5805.61 | 584 | 571 | 111.7 |
| B | 4 | 171 | 474475 | 4241.24 | 584 | 571 | 111.7 |
| C | 15 | 214 | 230843 | 1570.81 | 629 | 634 | 146.6 |
| C | 0 | 10 | 213892 | 1455.15 | 629 | 634 | 146.6 |
| C | 0 | 207 | 197158 | 1340.97 | 629 | 634 | 146.6 |
| D | 12 | 6 | 381162 | 2429.39 | 634 | 614 | 156.6 |
| D | 7 | 223 | 271259 | 1727.78 | 634 | 614 | 156.6 |
| D | 2 | 250 | 230204 | 1465.69 | 634 | 614 | 156.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

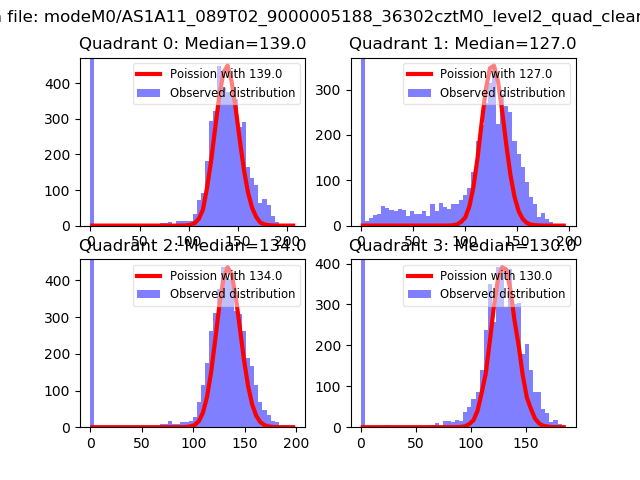

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

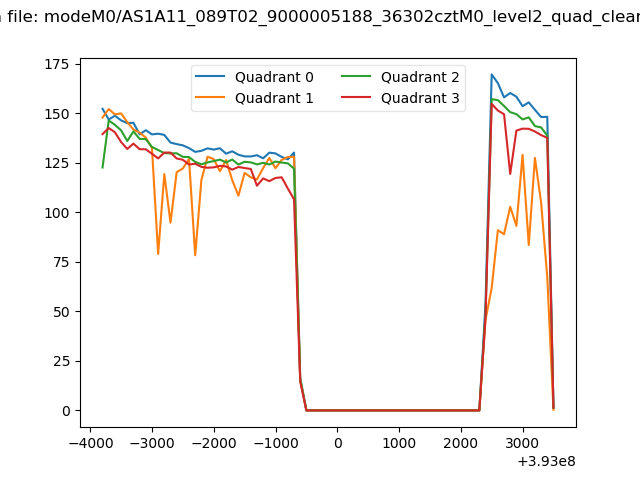

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

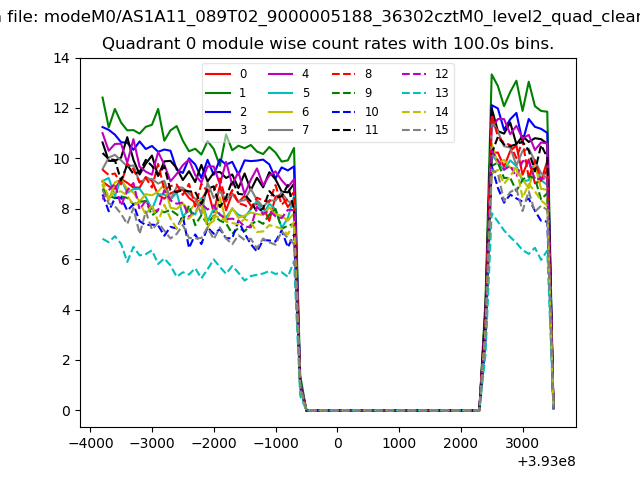

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

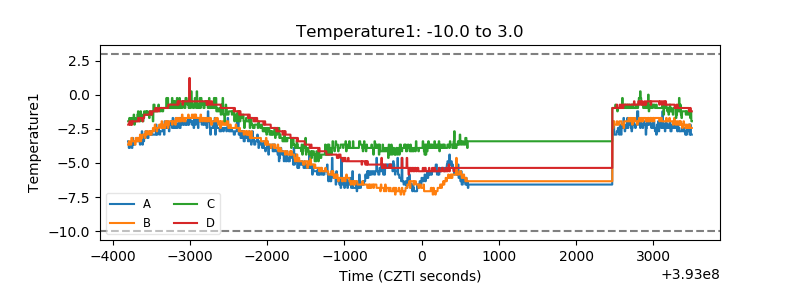

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

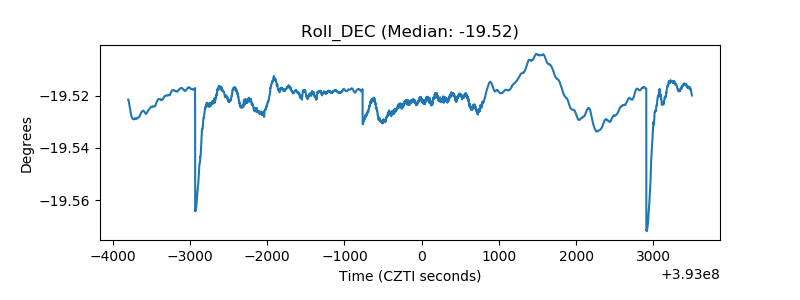

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
