| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A11_089T02_9000005188_36305cztM0_level2.evt | modeM0/AS1A11_089T02_9000005188_36305cztM0_level2_quad_clean.evt |
| Size (bytes) | 466,712,640 | 59,973,120 |
| Size | 445.1 MB | 57.2 MB |
| Events in quadrant A | 2,507,954 | 386,405 |
| Events in quadrant B | 5,479,436 | 369,115 |
| Events in quadrant C | 2,748,696 | 363,869 |
| Events in quadrant D | 3,067,959 | 354,669 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 36 | 0 |
| B | 0 | 36 | 0 |
| C | 0 | 36 | 0 |
| D | 0 | 37 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10462 | 3 |
| B | 0 | 19663 | 2 |
| C | 0 | 10990 | 2 |
| D | 0 | 12257 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 100 | 0 |
| B | 0 | 100 | 0 |
| C | 0 | 100 | 0 |
| D | 0 | 100 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 4866 | 7 | 0.143855% |
| B | 4866 | 1031 | 21.187834% |
| C | 4866 | 129 | 2.651048% |
| D | 4866 | 88 | 1.808467% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

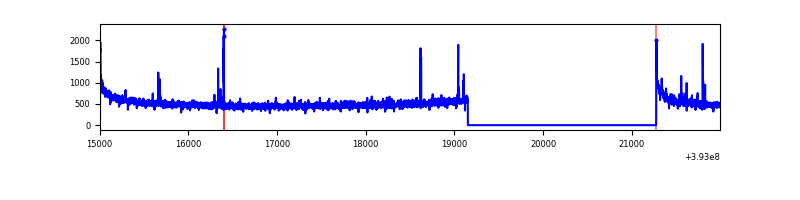

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 6990 | 4867 | 3 | 3 | 0.04% | 0.06% |  |
| B | 6990 | 4867 | 658 | 658 | 9.41% | 13.52% |  |
| C | 6990 | 4867 | 112 | 112 | 1.60% | 2.30% |  |
| D | 6990 | 4867 | 101 | 101 | 1.44% | 2.08% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 179626 | 1518.61 | 587 | 578 | 117.9 |
| A | 9 | 143 | 32291 | 268.98 | 587 | 578 | 117.9 |
| A | 13 | 6 | 8280 | 65.33 | 587 | 578 | 117.9 |
| B | 4 | 171 | 2139236 | 20801.63 | 541 | 530 | 102.8 |
| B | 5 | 172 | 615576 | 5982.1 | 541 | 530 | 102.8 |
| B | 0 | 213 | 226992 | 2202.63 | 541 | 530 | 102.8 |
| C | 0 | 10 | 360101 | 2771.56 | 557 | 563 | 129.7 |
| C | 15 | 214 | 204553 | 1572.49 | 557 | 563 | 129.7 |
| C | 15 | 159 | 8751 | 63.12 | 557 | 563 | 129.7 |
| D | 12 | 6 | 420796 | 3060.96 | 557 | 542 | 137.3 |
| D | 2 | 153 | 112778 | 817.48 | 557 | 542 | 137.3 |
| D | 12 | 235 | 104193 | 754.95 | 557 | 542 | 137.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

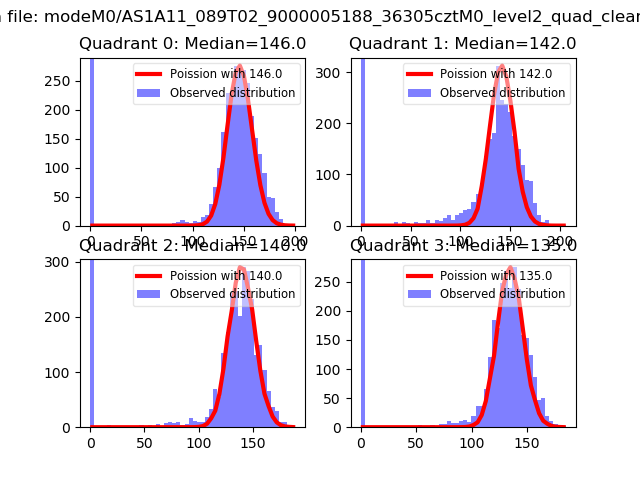

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

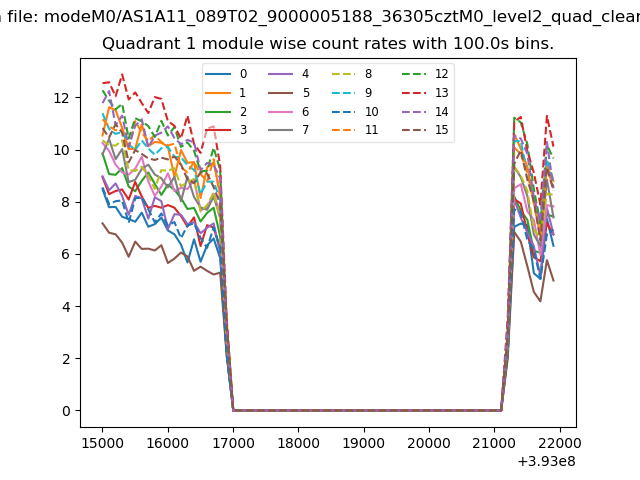

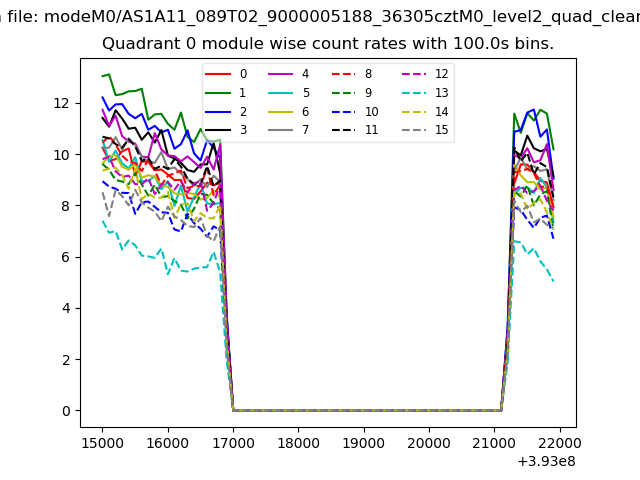

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

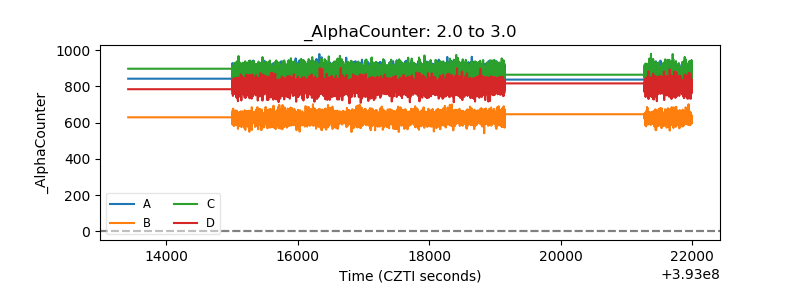

| Alpha Counter |  |

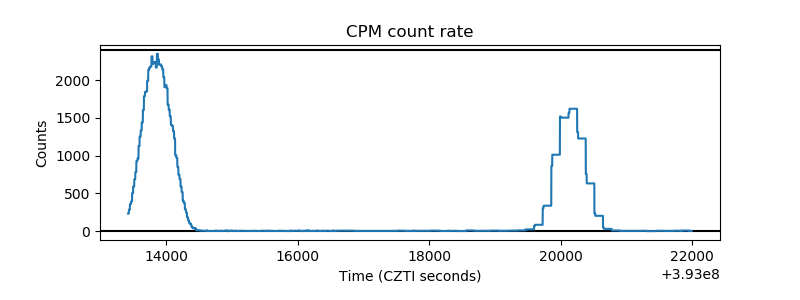

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

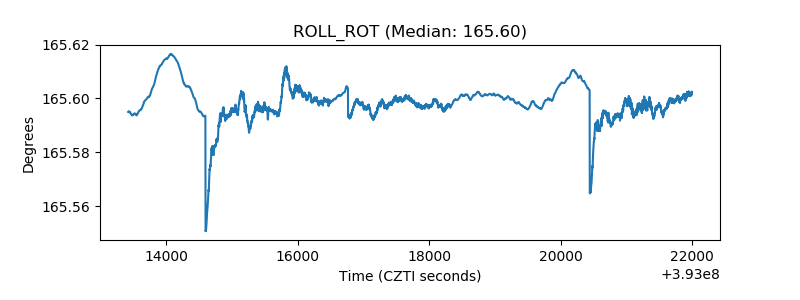

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

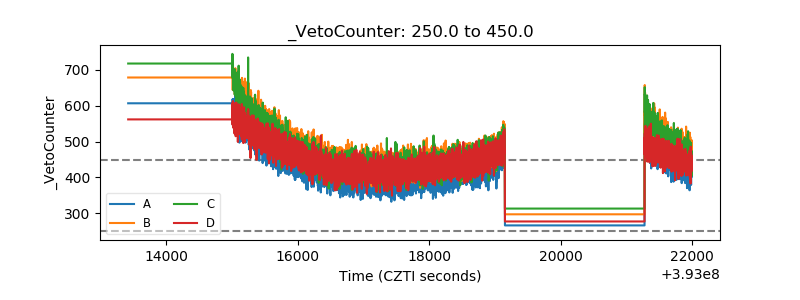

| Veto Counter |  |
