| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A11_089T02_9000005188_36309cztM0_level2.evt | modeM0/AS1A11_089T02_9000005188_36309cztM0_level2_quad_clean.evt |
| Size (bytes) | 544,161,600 | 60,459,840 |
| Size | 519.0 MB | 57.7 MB |
| Events in quadrant A | 2,855,507 | 377,373 |
| Events in quadrant B | 4,850,350 | 343,002 |
| Events in quadrant C | 3,011,592 | 365,655 |
| Events in quadrant D | 5,360,347 | 329,346 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 30 | 0 |
| B | 0 | 30 | 0 |
| C | 0 | 30 | 0 |
| D | 0 | 30 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12236 | 3 |
| B | 0 | 18433 | 2 |
| C | 0 | 12600 | 2 |
| D | 0 | 20095 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 120 | 0 |
| B | 0 | 120 | 0 |
| C | 0 | 120 | 0 |
| D | 0 | 120 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5945 | 7 | 0.117746% |
| B | 5945 | 640 | 10.765349% |
| C | 5945 | 62 | 1.042893% |
| D | 5945 | 580 | 9.756098% |

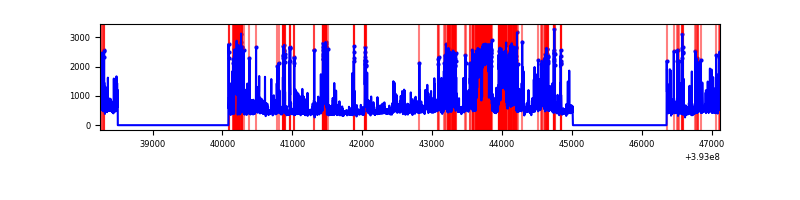

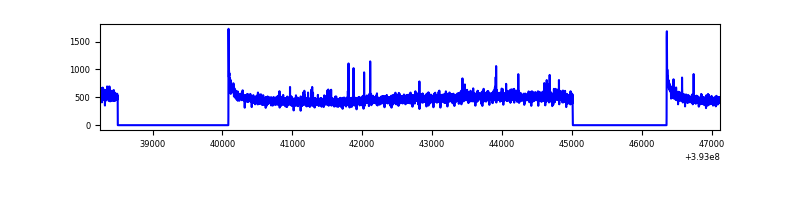

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8871 | 5947 | 0 | 0 | 0.00% | 0.00% |  |
| B | 8871 | 5947 | 519 | 519 | 5.85% | 8.73% |  |
| C | 8871 | 5947 | 53 | 53 | 0.60% | 0.89% |  |
| D | 8871 | 5945 | 574 | 574 | 6.47% | 9.66% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 192786 | 1413.7 | 675 | 663 | 135.9 |
| A | 9 | 143 | 17377 | 122.99 | 675 | 663 | 135.9 |
| A | 13 | 6 | 13777 | 96.5 | 675 | 663 | 135.9 |
| B | 5 | 172 | 1523577 | 12390.46 | 637 | 619 | 122.9 |
| B | 4 | 171 | 361593 | 2936.81 | 637 | 619 | 122.9 |
| B | 5 | 236 | 252371 | 2048.2 | 637 | 619 | 122.9 |
| C | 15 | 214 | 251321 | 1651.64 | 646 | 649 | 151.8 |
| C | 0 | 10 | 217057 | 1425.88 | 646 | 649 | 151.8 |
| C | 0 | 207 | 14391 | 90.54 | 646 | 649 | 151.8 |
| D | 12 | 235 | 821141 | 5326.94 | 626 | 608 | 154.0 |
| D | 12 | 227 | 660276 | 4282.6 | 626 | 608 | 154.0 |
| D | 12 | 6 | 644910 | 4182.84 | 626 | 608 | 154.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

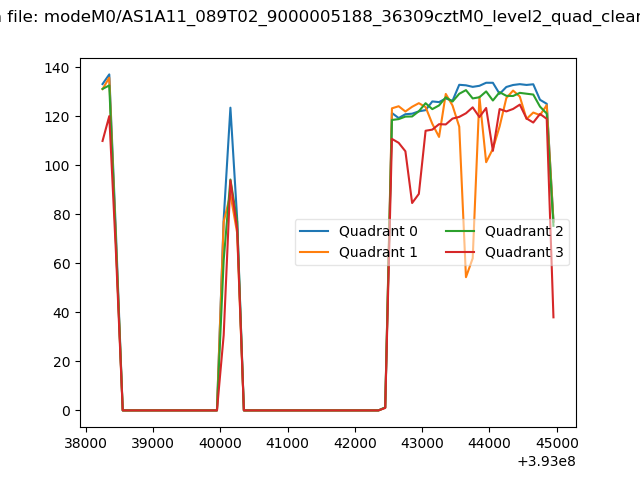

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

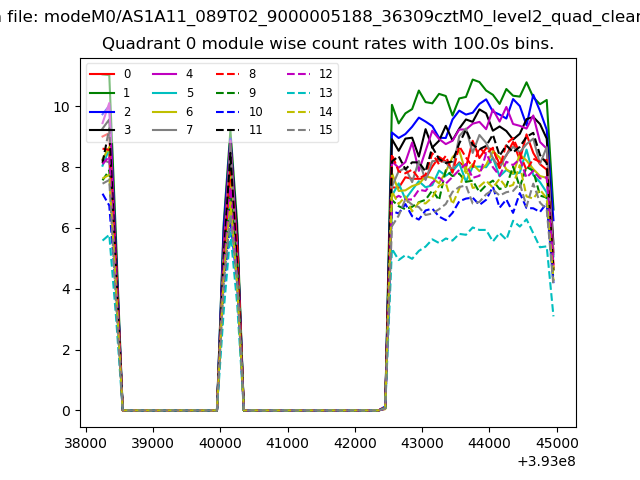

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

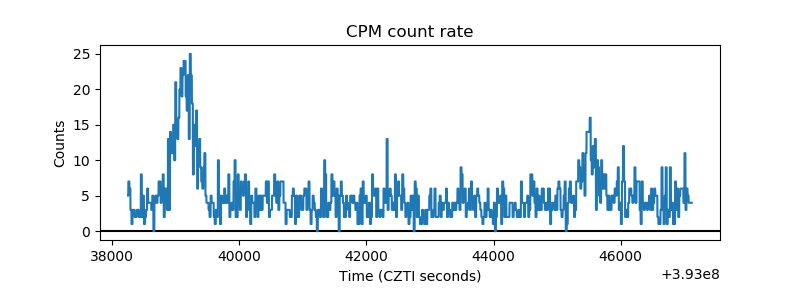

| _CPM_Rate |  |

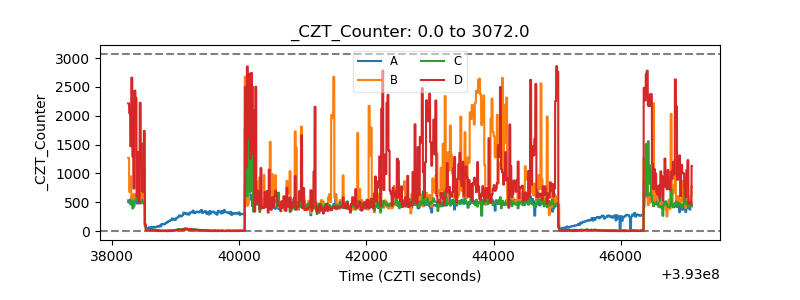

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

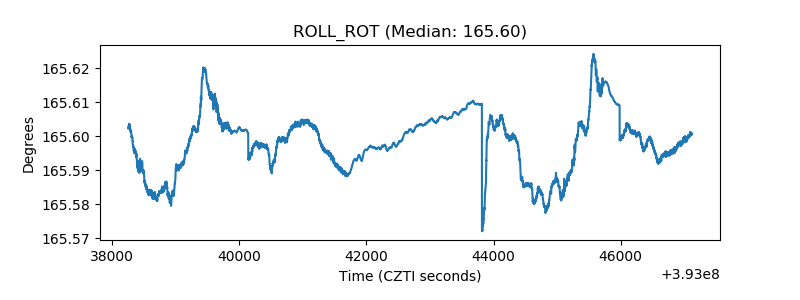

| _ROLL_ROT |  |
| _Roll_DEC |  |

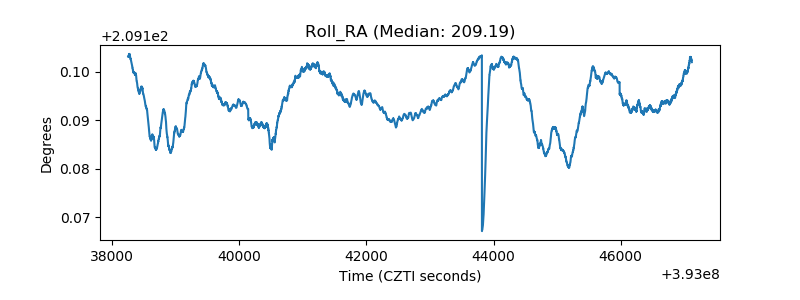

| _Roll_RA |  |
| Veto Counter |  |
