| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A11_097T17_9000005194_36351cztM0_level2.evt | modeM0/AS1A11_097T17_9000005194_36351cztM0_level2_quad_clean.evt |
| Size (bytes) | 254,574,720 | 33,989,760 |
| Size | 242.8 MB | 32.4 MB |
| Events in quadrant A | 1,564,630 | 206,551 |
| Events in quadrant B | 1,932,040 | 207,131 |
| Events in quadrant C | 2,201,462 | 203,255 |
| Events in quadrant D | 1,804,746 | 196,511 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 62 | 0 |
| B | 0 | 62 | 0 |
| C | 0 | 62 | 0 |
| D | 0 | 62 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 6493 | 2 |
| B | 0 | 7755 | 1 |
| C | 0 | 8348 | 1 |
| D | 0 | 7434 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18 | 0 |
| B | 0 | 18 | 0 |
| C | 0 | 18 | 0 |
| D | 0 | 18 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 3023 | 14 | 0.463116% |
| B | 3023 | 83 | 2.745617% |
| C | 3023 | 207 | 6.847502% |
| D | 3023 | 69 | 2.282501% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

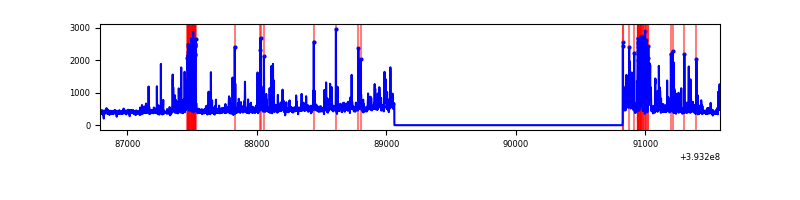

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 4785 | 3024 | 4 | 4 | 0.08% | 0.13% |  |
| B | 4785 | 3024 | 43 | 43 | 0.90% | 1.42% |  |
| C | 4785 | 3023 | 221 | 221 | 4.62% | 7.31% |  |
| D | 4785 | 3024 | 68 | 68 | 1.42% | 2.25% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 95983 | 1304.67 | 353 | 345 | 73.3 |
| A | 9 | 143 | 77692 | 1055.15 | 353 | 345 | 73.3 |
| A | 12 | 189 | 14127 | 188.01 | 353 | 345 | 73.3 |
| B | 5 | 236 | 272856 | 3973.79 | 347 | 337 | 68.6 |
| B | 0 | 189 | 130284 | 1894.85 | 347 | 337 | 68.6 |
| B | 5 | 172 | 89147 | 1295.0 | 347 | 337 | 68.6 |
| C | 0 | 207 | 667244 | 8399.61 | 335 | 337 | 79.4 |
| C | 15 | 214 | 126092 | 1583.87 | 335 | 337 | 79.4 |
| C | 0 | 10 | 102912 | 1291.92 | 335 | 337 | 79.4 |
| D | 12 | 6 | 254092 | 3006.21 | 340 | 329 | 84.4 |
| D | 2 | 250 | 84337 | 995.2 | 340 | 329 | 84.4 |
| D | 2 | 249 | 50378 | 592.91 | 340 | 329 | 84.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

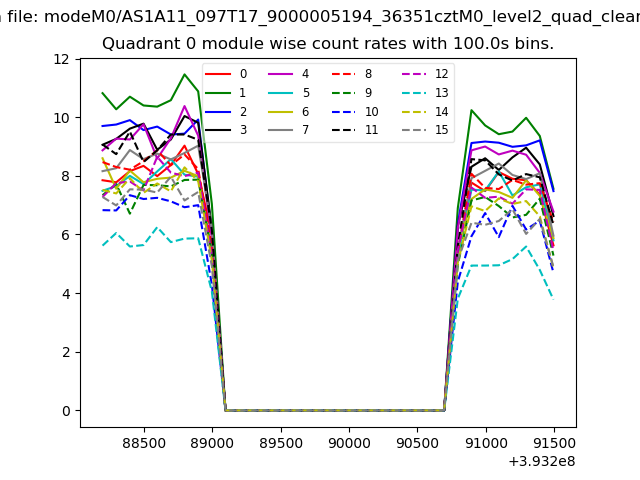

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

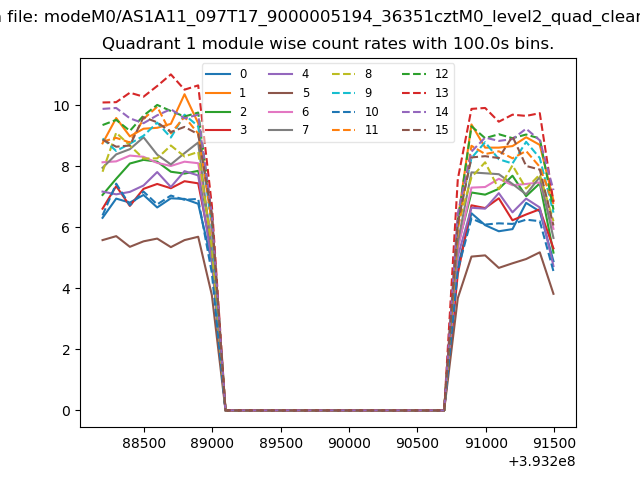

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

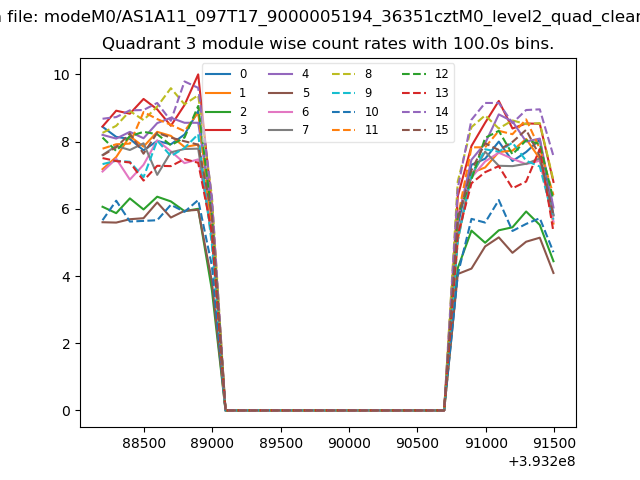

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

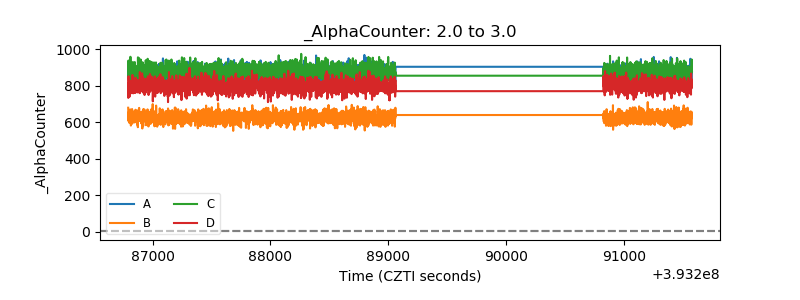

| Alpha Counter |  |

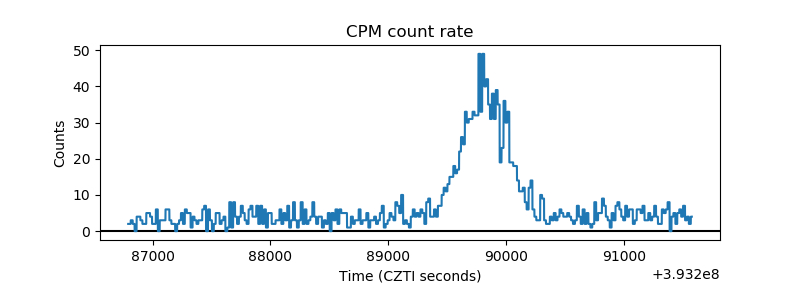

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

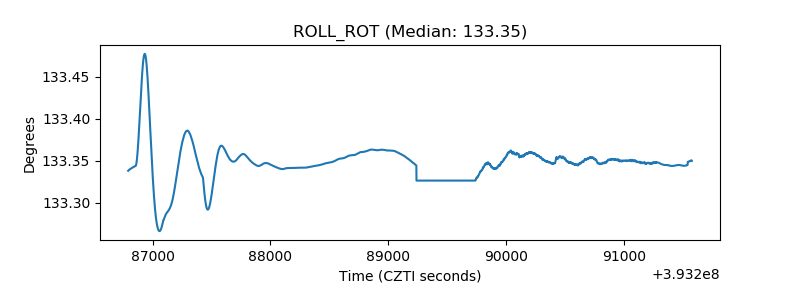

| _ROLL_ROT |  |
| _Roll_DEC |  |

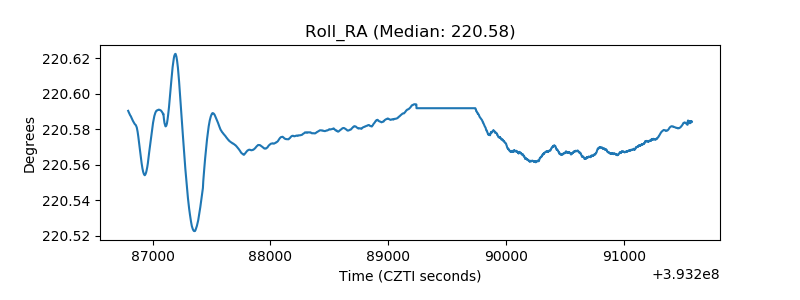

| _Roll_RA |  |
| Veto Counter |  |
