| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A11_097T17_9000005194_36352cztM0_level2.evt | modeM0/AS1A11_097T17_9000005194_36352cztM0_level2_quad_clean.evt |
| Size (bytes) | 473,762,880 | 72,048,960 |
| Size | 451.8 MB | 68.7 MB |
| Events in quadrant A | 2,893,326 | 446,222 |
| Events in quadrant B | 3,918,768 | 445,304 |
| Events in quadrant C | 3,450,474 | 445,918 |
| Events in quadrant D | 3,680,775 | 427,702 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 124 | 0 |
| B | 0 | 124 | 0 |
| C | 0 | 124 | 0 |
| D | 0 | 124 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12467 | 3 |
| B | 0 | 15722 | 2 |
| C | 0 | 13967 | 2 |
| D | 0 | 15063 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 32 | 0 |
| B | 0 | 32 | 0 |
| C | 0 | 32 | 0 |
| D | 0 | 32 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5959 | 15 | 0.251720% |
| B | 5959 | 223 | 3.742239% |
| C | 5959 | 78 | 1.308944% |
| D | 5959 | 169 | 2.836046% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 9153 | 5961 | 4 | 4 | 0.04% | 0.07% |  |
| B | 9153 | 5961 | 161 | 161 | 1.76% | 2.70% |  |
| C | 9153 | 5960 | 88 | 88 | 0.96% | 1.48% |  |
| D | 9153 | 5961 | 176 | 176 | 1.92% | 2.95% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 189196 | 1379.09 | 674 | 659 | 136.7 |
| A | 9 | 143 | 77229 | 560.09 | 674 | 659 | 136.7 |
| A | 12 | 189 | 15696 | 109.99 | 674 | 659 | 136.7 |
| B | 5 | 236 | 561036 | 4397.39 | 660 | 641 | 127.4 |
| B | 5 | 172 | 360379 | 2822.84 | 660 | 641 | 127.4 |
| B | 0 | 189 | 138512 | 1081.87 | 660 | 641 | 127.4 |
| C | 0 | 207 | 453241 | 2936.26 | 656 | 660 | 154.1 |
| C | 15 | 214 | 254776 | 1648.66 | 656 | 660 | 154.1 |
| C | 0 | 10 | 187337 | 1211.13 | 656 | 660 | 154.1 |
| D | 12 | 6 | 389576 | 2433.26 | 651 | 631 | 159.8 |
| D | 2 | 249 | 340077 | 2123.59 | 651 | 631 | 159.8 |
| D | 13 | 249 | 111327 | 692.52 | 651 | 631 | 159.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

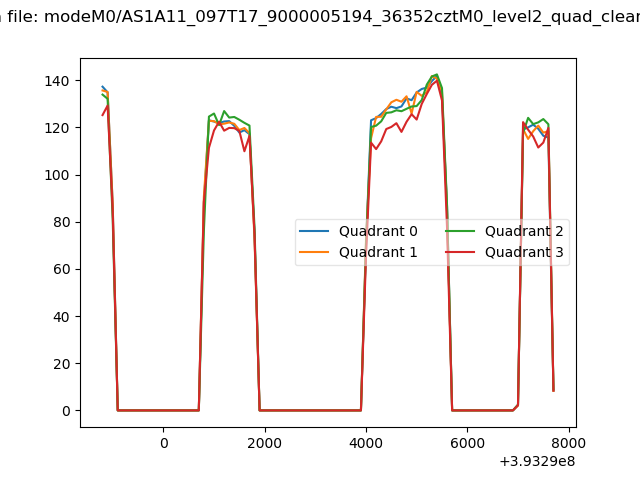

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

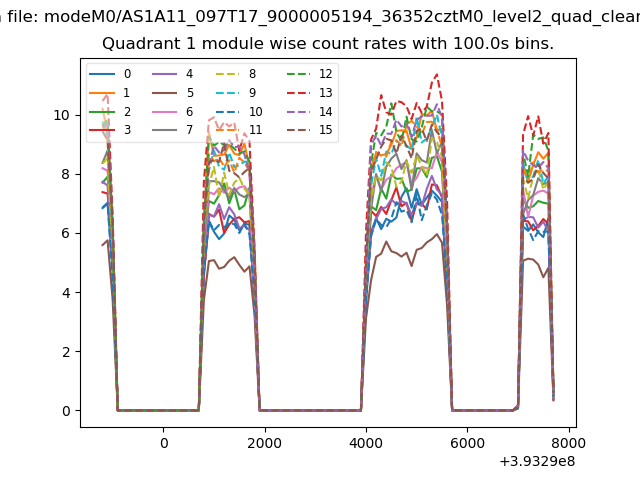

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

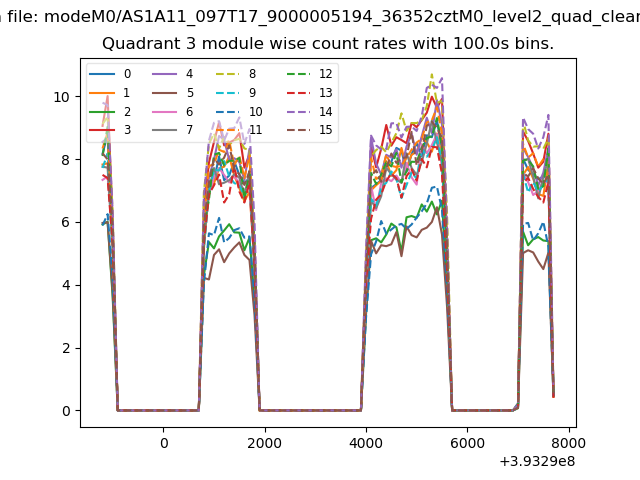

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

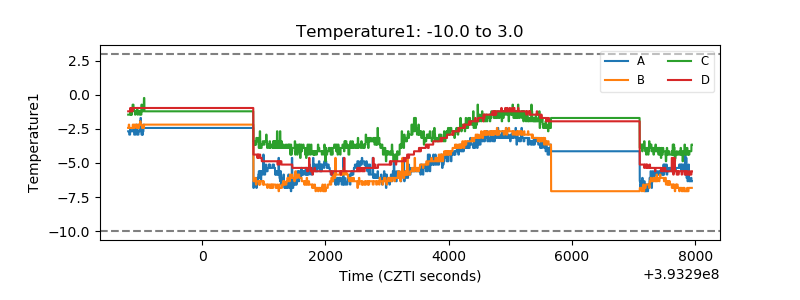

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

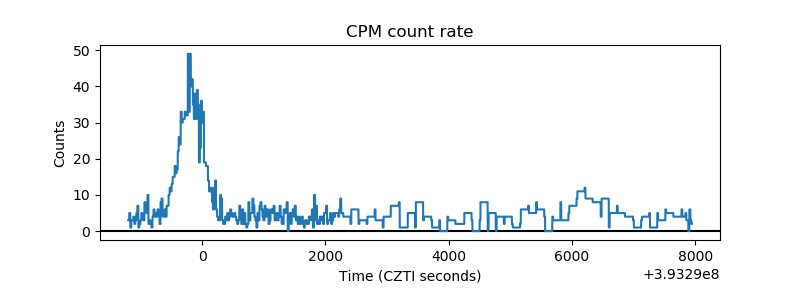

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

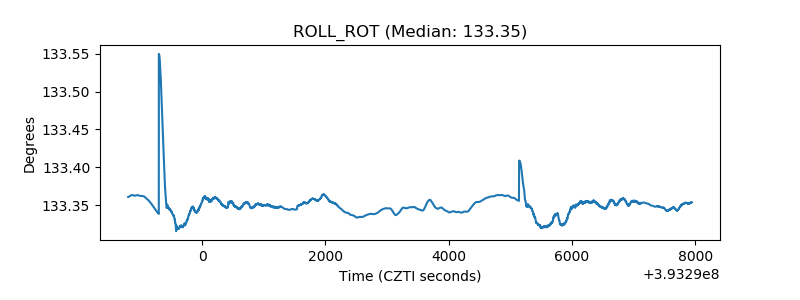

| _ROLL_ROT |  |
