| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A11_097T17_9000005194_36353cztM0_level2.evt | modeM0/AS1A11_097T17_9000005194_36353cztM0_level2_quad_clean.evt |
| Size (bytes) | 518,849,280 | 72,000,000 |
| Size | 494.8 MB | 68.7 MB |
| Events in quadrant A | 3,080,835 | 438,787 |
| Events in quadrant B | 4,113,641 | 435,899 |
| Events in quadrant C | 4,380,007 | 438,377 |
| Events in quadrant D | 3,706,053 | 421,858 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13212 | 3 |
| B | 0 | 16357 | 2 |
| C | 0 | 17012 | 2 |
| D | 0 | 15440 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 27 | 0 |
| B | 0 | 27 | 0 |
| C | 0 | 27 | 0 |
| D | 0 | 27 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6378 | 15 | 0.235183% |
| B | 6378 | 213 | 3.339605% |
| C | 6378 | 325 | 5.095641% |
| D | 6378 | 133 | 2.085293% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 9122 | 6380 | 4 | 4 | 0.04% | 0.06% |  |
| B | 9122 | 6380 | 152 | 152 | 1.67% | 2.38% |  |
| C | 9122 | 6380 | 327 | 327 | 3.58% | 5.13% |  |
| D | 9122 | 6380 | 134 | 134 | 1.47% | 2.10% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 202037 | 1368.73 | 724 | 710 | 147.1 |
| A | 9 | 143 | 40842 | 272.84 | 724 | 710 | 147.1 |
| A | 12 | 189 | 22454 | 147.83 | 724 | 710 | 147.1 |
| B | 5 | 236 | 806266 | 5835.92 | 712 | 691 | 138.0 |
| B | 5 | 172 | 280476 | 2026.88 | 712 | 691 | 138.0 |
| B | 4 | 171 | 101335 | 729.11 | 712 | 691 | 138.0 |
| C | 0 | 207 | 1229828 | 7574.62 | 694 | 698 | 162.3 |
| C | 15 | 214 | 266369 | 1637.22 | 694 | 698 | 162.3 |
| C | 0 | 10 | 176976 | 1086.33 | 694 | 698 | 162.3 |
| D | 12 | 6 | 300180 | 1731.64 | 706 | 686 | 173.0 |
| D | 2 | 249 | 176352 | 1015.68 | 706 | 686 | 173.0 |
| D | 13 | 171 | 144893 | 833.79 | 706 | 686 | 173.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

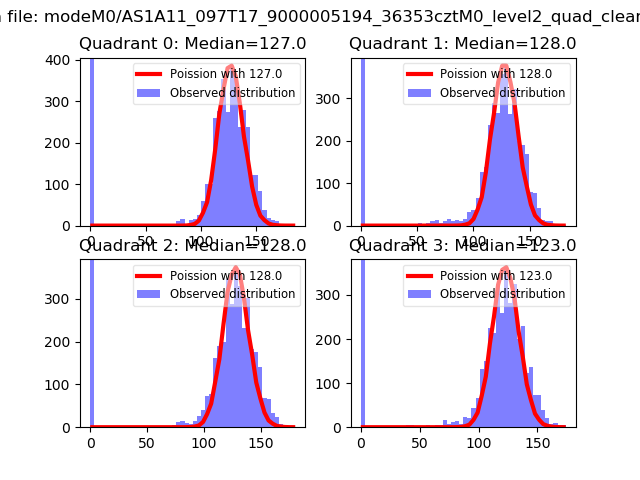

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

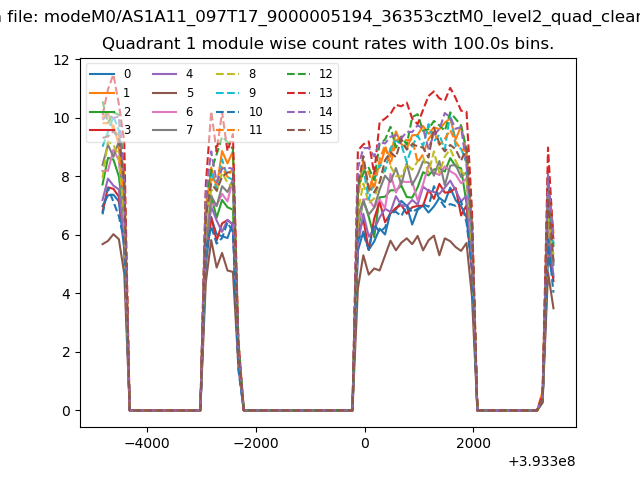

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
