| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A11_097T17_9000005194_36362cztM0_level2.evt | modeM0/AS1A11_097T17_9000005194_36362cztM0_level2_quad_clean.evt |
| Size (bytes) | 417,294,720 | 87,416,640 |
| Size | 398.0 MB | 83.4 MB |
| Events in quadrant A | 2,634,330 | 582,145 |
| Events in quadrant B | 3,015,347 | 579,184 |
| Events in quadrant C | 2,805,613 | 583,172 |
| Events in quadrant D | 3,841,344 | 550,686 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 102 | 0 |
| B | 0 | 102 | 0 |
| C | 0 | 102 | 0 |
| D | 0 | 102 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10924 | 3 |
| B | 0 | 12119 | 2 |
| C | 0 | 11288 | 2 |
| D | 0 | 14745 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 21 | 0 |
| B | 0 | 21 | 0 |
| C | 0 | 21 | 0 |
| D | 0 | 21 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5024 | 8 | 0.159236% |
| B | 5024 | 118 | 2.348726% |
| C | 5024 | 65 | 1.293790% |
| D | 5024 | 187 | 3.722134% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7116 | 5025 | 4 | 4 | 0.06% | 0.08% |  |
| B | 7116 | 5025 | 99 | 99 | 1.39% | 1.97% |  |
| C | 7116 | 5025 | 41 | 41 | 0.58% | 0.82% |  |
| D | 7116 | 5025 | 196 | 196 | 2.75% | 3.90% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 172175 | 1375.63 | 622 | 613 | 124.7 |
| A | 12 | 189 | 26100 | 204.36 | 622 | 613 | 124.7 |
| A | 10 | 248 | 18960 | 147.11 | 622 | 613 | 124.7 |
| B | 5 | 172 | 465931 | 4085.26 | 612 | 598 | 113.9 |
| B | 0 | 189 | 55930 | 485.77 | 612 | 598 | 113.9 |
| B | 0 | 213 | 47203 | 409.16 | 612 | 598 | 113.9 |
| C | 15 | 214 | 212690 | 1496.31 | 613 | 619 | 141.7 |
| C | 0 | 10 | 199799 | 1405.36 | 613 | 619 | 141.7 |
| C | 13 | 61 | 4064 | 24.31 | 613 | 619 | 141.7 |
| D | 12 | 6 | 734119 | 5010.45 | 608 | 594 | 146.4 |
| D | 7 | 223 | 237448 | 1617.86 | 608 | 594 | 146.4 |
| D | 2 | 153 | 140443 | 955.26 | 608 | 594 | 146.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

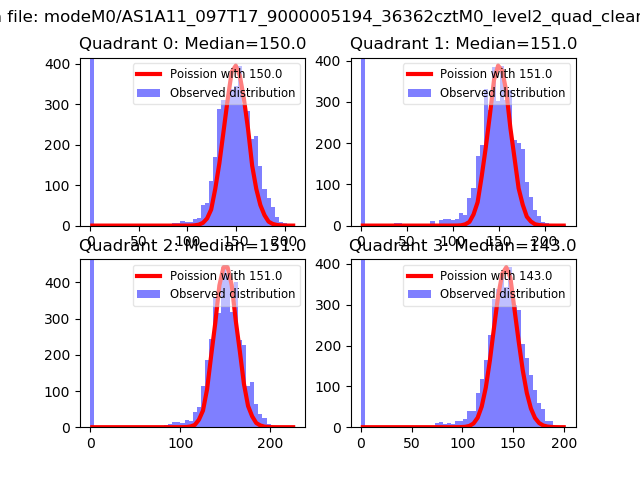

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

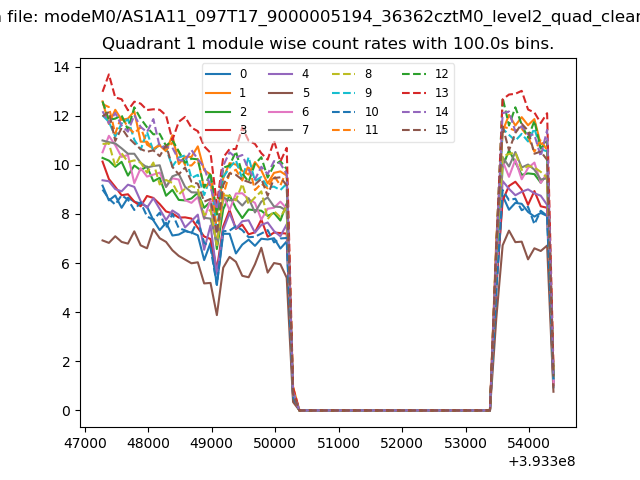

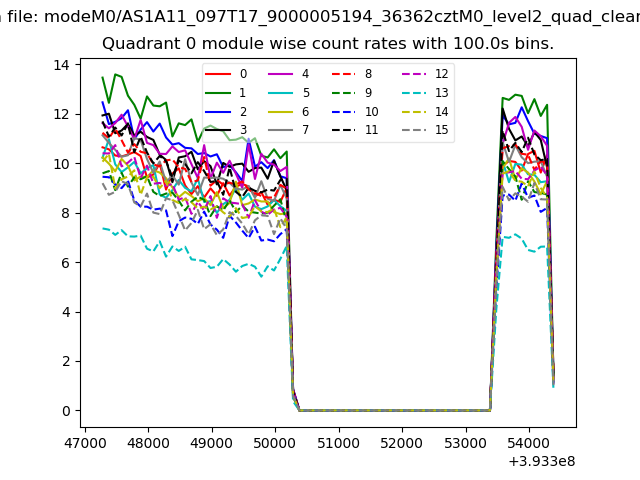

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

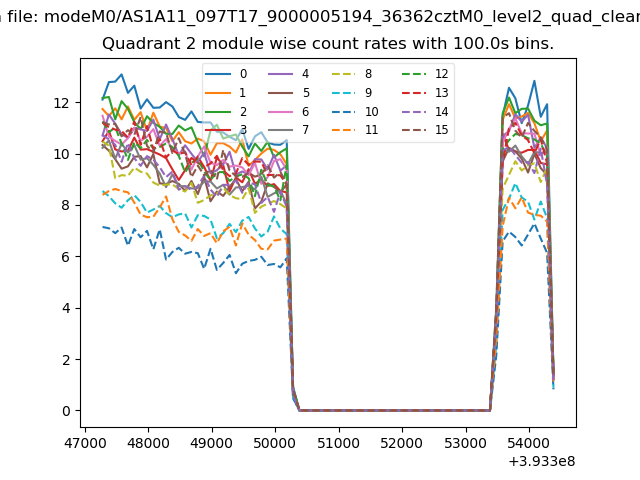

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

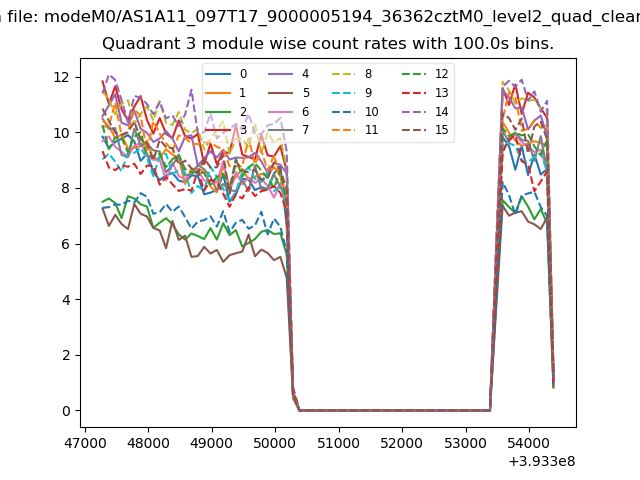

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

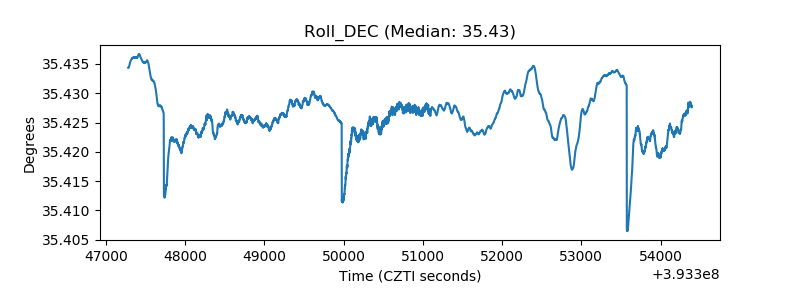

| _Roll_DEC |  |

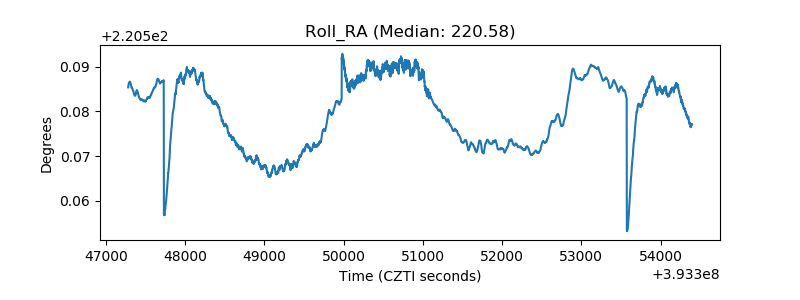

| _Roll_RA |  |

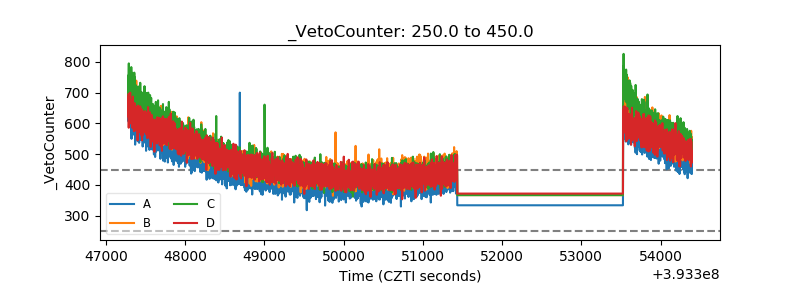

| Veto Counter |  |
