| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A11_097T24_9000005196_36366cztM0_level2.evt | modeM0/AS1A11_097T24_9000005196_36366cztM0_level2_quad_clean.evt |
| Size (bytes) | 485,619,840 | 75,597,120 |
| Size | 463.1 MB | 72.1 MB |
| Events in quadrant A | 2,747,705 | 497,656 |
| Events in quadrant B | 4,759,554 | 480,742 |
| Events in quadrant C | 2,986,404 | 473,610 |
| Events in quadrant D | 3,835,866 | 447,856 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 114 | 0 |
| B | 0 | 114 | 0 |
| C | 0 | 114 | 0 |
| D | 0 | 114 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 27 | 0 |
| B | 0 | 27 | 0 |
| C | 0 | 27 | 0 |
| D | 0 | 28 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11796 | 3 |
| B | 0 | 17919 | 2 |
| C | 0 | 12332 | 2 |
| D | 0 | 15271 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5559 | 10 | 0.179888% |
| B | 5559 | 614 | 11.045152% |
| C | 5559 | 102 | 1.834862% |
| D | 5559 | 258 | 4.641123% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7112 | 5560 | 3 | 3 | 0.04% | 0.05% |  |
| B | 7112 | 5559 | 460 | 460 | 6.47% | 8.27% |  |
| C | 7112 | 5560 | 93 | 93 | 1.31% | 1.67% |  |
| D | 7112 | 5560 | 257 | 257 | 3.61% | 4.62% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 185750 | 1450.99 | 629 | 616 | 127.6 |
| A | 12 | 189 | 74253 | 577.13 | 629 | 616 | 127.6 |
| A | 9 | 143 | 38180 | 294.41 | 629 | 616 | 127.6 |
| B | 5 | 172 | 1715939 | 15022.42 | 595 | 581 | 114.2 |
| B | 4 | 171 | 448585 | 3923.44 | 595 | 581 | 114.2 |
| B | 0 | 189 | 78022 | 678.2 | 595 | 581 | 114.2 |
| C | 15 | 214 | 236902 | 1661.73 | 604 | 609 | 142.2 |
| C | 0 | 207 | 210774 | 1477.99 | 604 | 609 | 142.2 |
| C | 0 | 10 | 182339 | 1278.02 | 604 | 609 | 142.2 |
| D | 12 | 6 | 949746 | 6512.08 | 596 | 580 | 145.8 |
| D | 2 | 249 | 218792 | 1497.12 | 596 | 580 | 145.8 |
| D | 13 | 249 | 112937 | 770.86 | 596 | 580 | 145.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

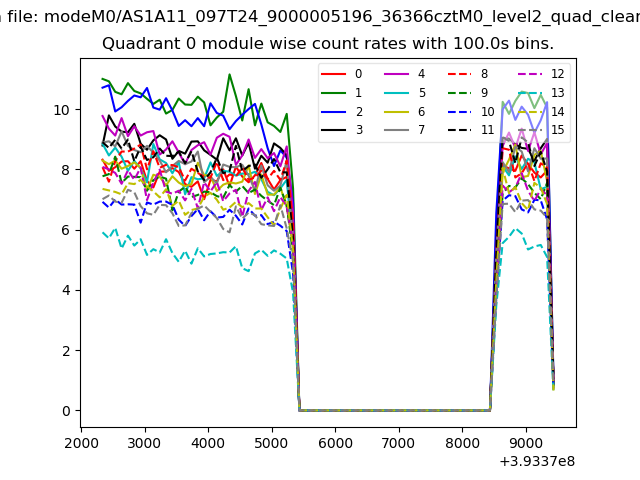

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

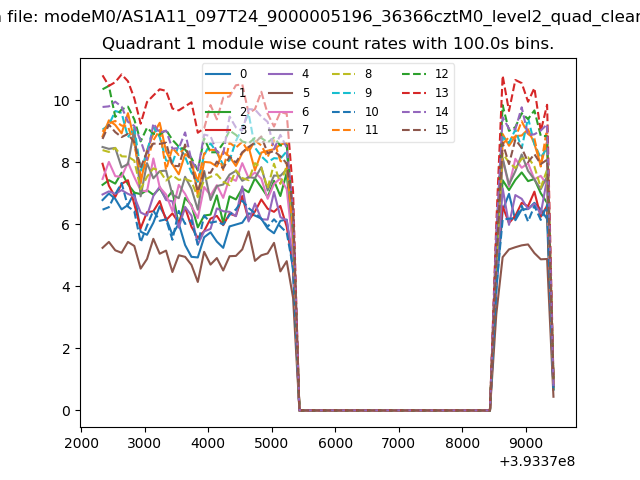

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
