| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A11_097T24_9000005196_36367cztM0_level2.evt | modeM0/AS1A11_097T24_9000005196_36367cztM0_level2_quad_clean.evt |
| Size (bytes) | 476,303,040 | 68,500,800 |
| Size | 454.2 MB | 65.3 MB |
| Events in quadrant A | 2,817,490 | 434,495 |
| Events in quadrant B | 3,749,630 | 426,860 |
| Events in quadrant C | 3,006,275 | 419,365 |
| Events in quadrant D | 4,458,521 | 388,480 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 116 | 0 |
| B | 0 | 116 | 0 |
| C | 0 | 116 | 0 |
| D | 0 | 116 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 26 | 0 |
| B | 0 | 26 | 0 |
| C | 0 | 26 | 0 |
| D | 0 | 27 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12186 | 3 |
| B | 0 | 14996 | 2 |
| C | 0 | 12566 | 2 |
| D | 0 | 17316 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5796 | 23 | 0.396825% |
| B | 5796 | 157 | 2.708765% |
| C | 5796 | 44 | 0.759144% |
| D | 5796 | 327 | 5.641822% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7139 | 5797 | 15 | 15 | 0.21% | 0.26% |  |
| B | 7139 | 5797 | 112 | 112 | 1.57% | 1.93% |  |
| C | 7139 | 5797 | 30 | 30 | 0.42% | 0.52% |  |
| D | 7139 | 5797 | 373 | 373 | 5.22% | 6.43% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 187914 | 1430.1 | 651 | 640 | 131.0 |
| A | 9 | 143 | 63529 | 480.25 | 651 | 640 | 131.0 |
| A | 12 | 189 | 29091 | 217.26 | 651 | 640 | 131.0 |
| B | 5 | 172 | 706652 | 5715.03 | 642 | 624 | 123.5 |
| B | 4 | 171 | 366122 | 2958.57 | 642 | 624 | 123.5 |
| B | 5 | 236 | 51898 | 415.04 | 642 | 624 | 123.5 |
| C | 15 | 214 | 248228 | 1673.21 | 630 | 635 | 148.0 |
| C | 0 | 207 | 224007 | 1509.53 | 630 | 635 | 148.0 |
| C | 0 | 10 | 74676 | 500.36 | 630 | 635 | 148.0 |
| D | 12 | 6 | 1130749 | 7505.88 | 617 | 601 | 150.6 |
| D | 12 | 235 | 278315 | 1844.44 | 617 | 601 | 150.6 |
| D | 2 | 249 | 193431 | 1280.68 | 617 | 601 | 150.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

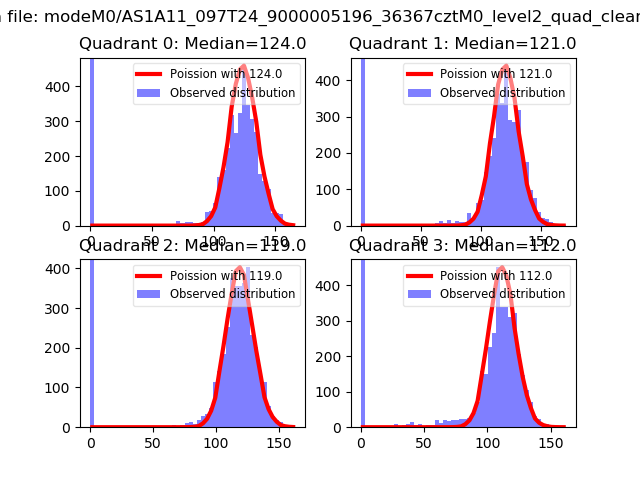

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

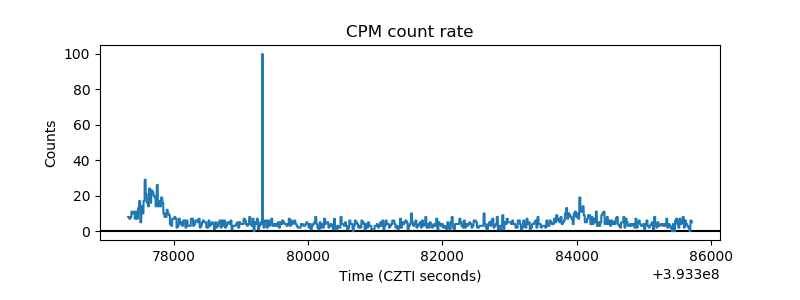

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

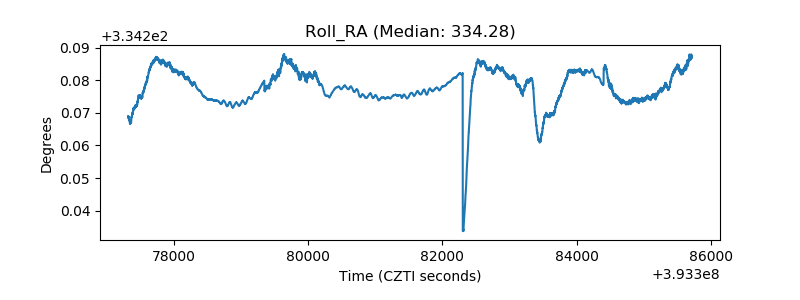

| _Roll_RA |  |

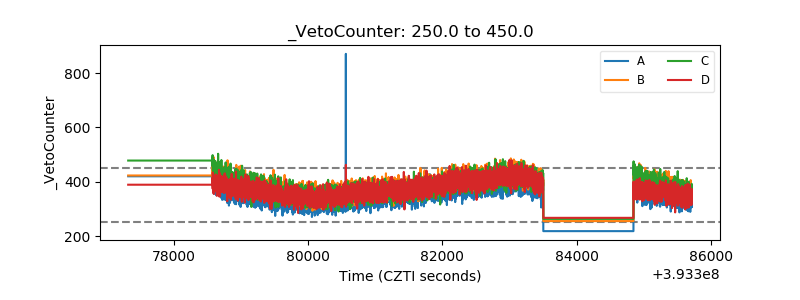

| Veto Counter |  |
