| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A11_097T24_9000005196_36372cztM0_level2.evt | modeM0/AS1A11_097T24_9000005196_36372cztM0_level2_quad_clean.evt |
| Size (bytes) | 568,679,040 | 51,240,960 |
| Size | 542.3 MB | 48.9 MB |
| Events in quadrant A | 2,853,683 | 315,739 |
| Events in quadrant B | 4,941,798 | 289,835 |
| Events in quadrant C | 2,817,549 | 304,917 |
| Events in quadrant D | 6,237,876 | 256,300 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 112 | 0 |
| B | 0 | 112 | 0 |
| C | 0 | 112 | 0 |
| D | 0 | 112 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 22 | 0 |
| B | 0 | 22 | 0 |
| C | 0 | 22 | 0 |
| D | 0 | 23 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11806 | 3 |
| B | 0 | 18284 | 2 |
| C | 0 | 11578 | 2 |
| D | 0 | 22250 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5485 | 28 | 0.510483% |
| B | 5485 | 753 | 13.728350% |
| C | 5485 | 52 | 0.948040% |
| D | 5485 | 1104 | 20.127621% |

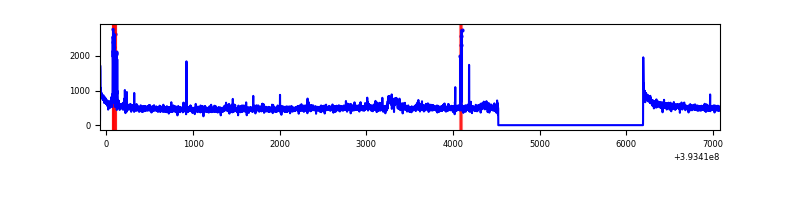

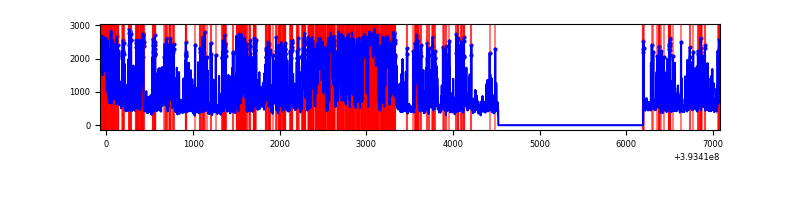

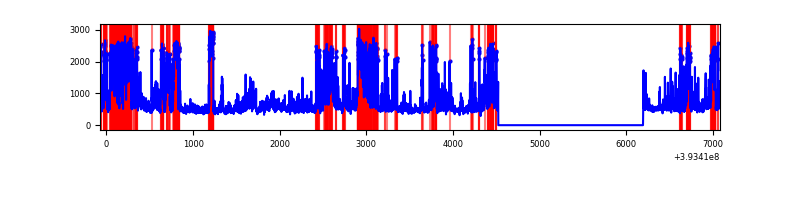

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7157 | 5486 | 15 | 15 | 0.21% | 0.27% |  |
| B | 7156 | 5484 | 622 | 622 | 8.69% | 11.34% |  |
| C | 7156 | 5484 | 36 | 36 | 0.50% | 0.66% |  |
| D | 7156 | 5484 | 1097 | 1097 | 15.33% | 20.00% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 185763 | 1421.72 | 644 | 631 | 130.2 |
| A | 12 | 189 | 90211 | 687.93 | 644 | 631 | 130.2 |
| A | 9 | 143 | 82983 | 632.42 | 644 | 631 | 130.2 |
| B | 5 | 172 | 2109889 | 18110.11 | 599 | 584 | 116.5 |
| B | 0 | 182 | 188693 | 1615.07 | 599 | 584 | 116.5 |
| B | 0 | 189 | 96690 | 825.15 | 599 | 584 | 116.5 |
| C | 15 | 214 | 235214 | 1616.26 | 617 | 620 | 145.1 |
| C | 0 | 10 | 167457 | 1149.44 | 617 | 620 | 145.1 |
| C | 4 | 254 | 13012 | 85.38 | 617 | 620 | 145.1 |
| D | 2 | 250 | 2012848 | 14441.06 | 566 | 550 | 139.3 |
| D | 12 | 6 | 708094 | 5077.62 | 566 | 550 | 139.3 |
| D | 2 | 249 | 593309 | 4253.88 | 566 | 550 | 139.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

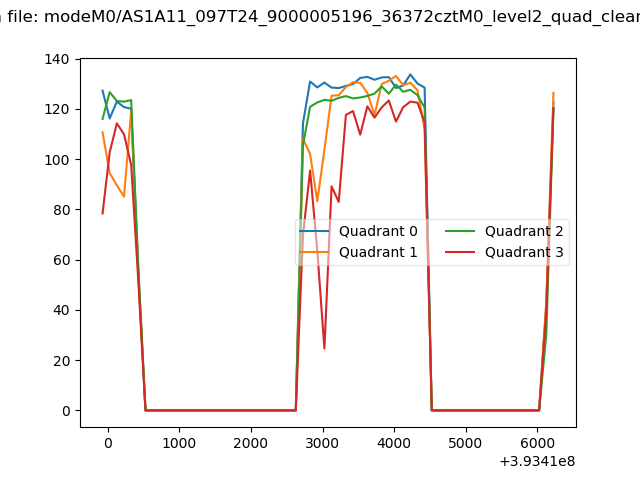

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

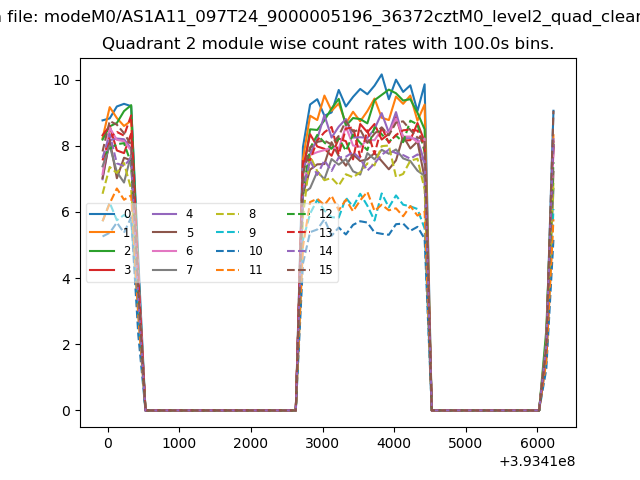

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

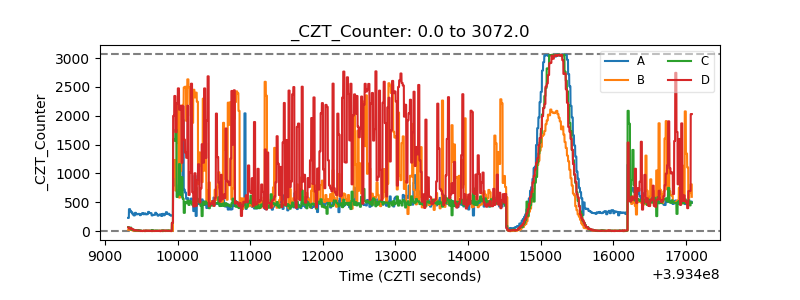

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

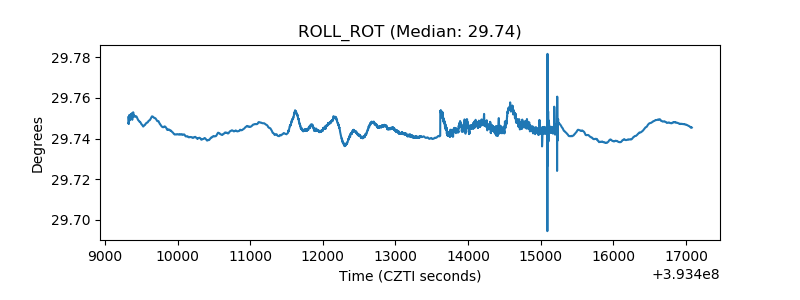

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

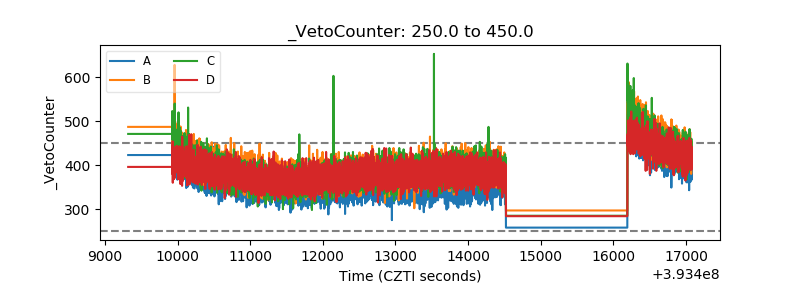

| Veto Counter |  |
