| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A11_097T24_9000005196_36380cztM0_level2.evt | modeM0/AS1A11_097T24_9000005196_36380cztM0_level2_quad_clean.evt |
| Size (bytes) | 567,339,840 | 76,092,480 |
| Size | 541.1 MB | 72.6 MB |
| Events in quadrant A | 5,332,454 | 436,294 |
| Events in quadrant B | 4,481,975 | 497,632 |
| Events in quadrant C | 2,831,408 | 518,265 |
| Events in quadrant D | 4,181,455 | 484,300 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 108 | 0 |
| B | 0 | 108 | 0 |
| C | 0 | 108 | 0 |
| D | 0 | 108 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 32 | 0 |
| B | 0 | 32 | 0 |
| C | 0 | 32 | 0 |
| D | 0 | 33 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 19142 | 3 |
| B | 0 | 16792 | 2 |
| C | 0 | 11530 | 2 |
| D | 0 | 16040 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5231 | 1209 | 23.112216% |
| B | 5231 | 594 | 11.355381% |
| C | 5231 | 74 | 1.414643% |
| D | 5231 | 360 | 6.882049% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

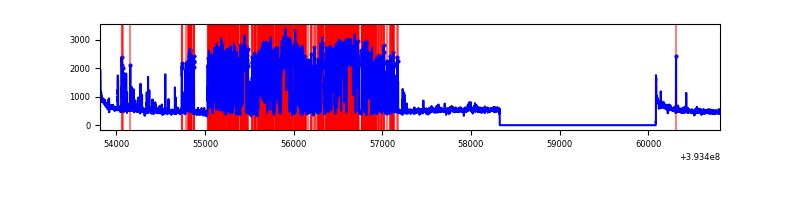

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 6993 | 5232 | 1046 | 1046 | 14.96% | 19.99% |  |
| B | 6993 | 5232 | 500 | 500 | 7.15% | 9.56% |  |
| C | 6993 | 5232 | 48 | 48 | 0.69% | 0.92% |  |
| D | 6993 | 5232 | 342 | 342 | 4.89% | 6.54% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 223 | 3075967 | 28991.26 | 530 | 521 | 106.1 |
| A | 10 | 83 | 169083 | 1588.98 | 530 | 521 | 106.1 |
| A | 12 | 189 | 16002 | 145.93 | 530 | 521 | 106.1 |
| B | 5 | 172 | 1513464 | 13517.1 | 573 | 559 | 111.9 |
| B | 4 | 171 | 350736 | 3128.67 | 573 | 559 | 111.9 |
| B | 5 | 255 | 259711 | 2315.4 | 573 | 559 | 111.9 |
| C | 15 | 214 | 223529 | 1629.48 | 586 | 592 | 136.8 |
| C | 0 | 10 | 221886 | 1617.47 | 586 | 592 | 136.8 |
| C | 4 | 254 | 60995 | 441.49 | 586 | 592 | 136.8 |
| D | 12 | 6 | 709226 | 5078.57 | 571 | 558 | 139.5 |
| D | 12 | 16 | 628300 | 4498.62 | 571 | 558 | 139.5 |
| D | 13 | 249 | 212899 | 1521.71 | 571 | 558 | 139.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

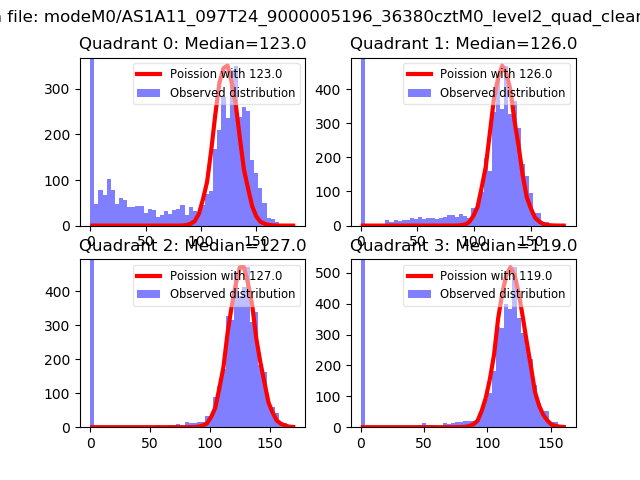

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

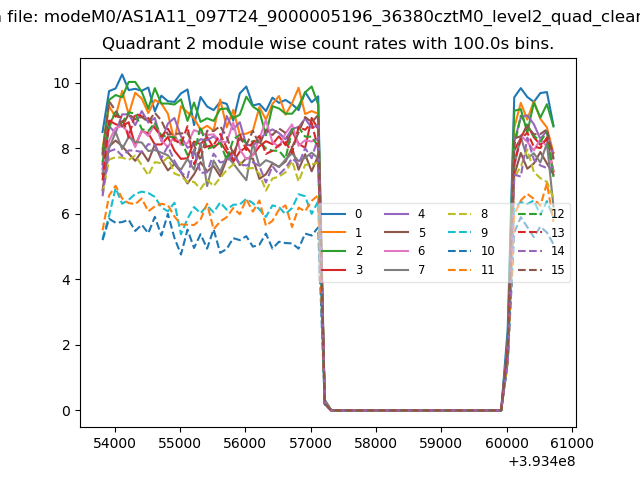

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

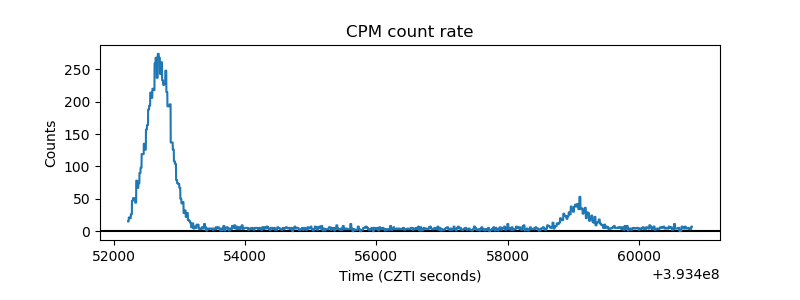

| _CPM_Rate |  |

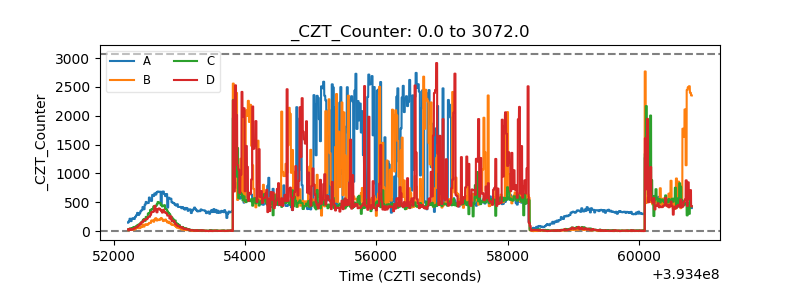

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

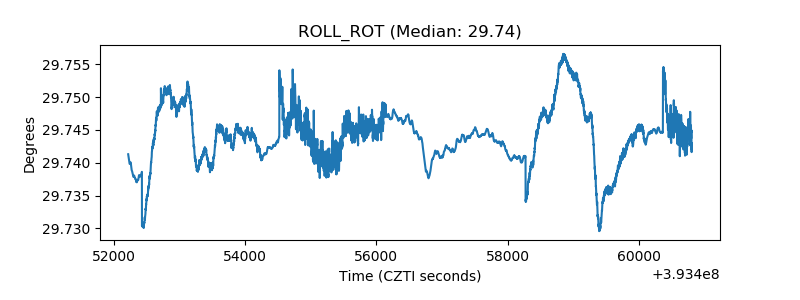

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

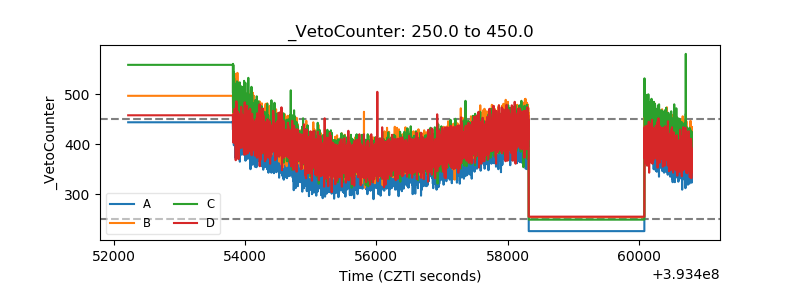

| Veto Counter |  |
