| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A11_097T24_9000005196_36382cztM0_level2.evt | modeM0/AS1A11_097T24_9000005196_36382cztM0_level2_quad_clean.evt |
| Size (bytes) | 586,180,800 | 69,534,720 |
| Size | 559.0 MB | 66.3 MB |
| Events in quadrant A | 5,152,298 | 413,500 |
| Events in quadrant B | 3,907,049 | 434,869 |
| Events in quadrant C | 3,199,200 | 431,770 |
| Events in quadrant D | 5,077,031 | 394,854 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 28 | 0 |
| B | 0 | 28 | 0 |
| C | 0 | 28 | 0 |
| D | 0 | 28 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 19291 | 3 |
| B | 0 | 15684 | 2 |
| C | 0 | 13238 | 2 |
| D | 0 | 19299 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6162 | 600 | 9.737098% |
| B | 6162 | 228 | 3.700097% |
| C | 6162 | 41 | 0.665368% |
| D | 6162 | 494 | 8.016878% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

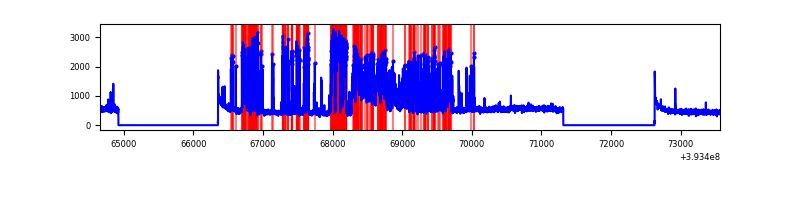

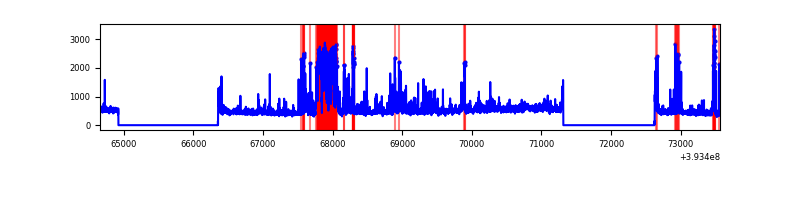

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8905 | 6164 | 514 | 514 | 5.77% | 8.34% |  |
| B | 8905 | 6164 | 204 | 204 | 2.29% | 3.31% |  |
| C | 8905 | 6164 | 31 | 31 | 0.35% | 0.50% |  |
| D | 8905 | 6164 | 504 | 504 | 5.66% | 8.18% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 223 | 2285501 | 16736.42 | 679 | 667 | 136.5 |
| A | 10 | 83 | 188175 | 1373.5 | 679 | 667 | 136.5 |
| A | 9 | 143 | 29289 | 209.66 | 679 | 667 | 136.5 |
| B | 5 | 172 | 685165 | 5081.42 | 692 | 674 | 134.7 |
| B | 5 | 255 | 241109 | 1784.9 | 692 | 674 | 134.7 |
| B | 4 | 171 | 133255 | 984.23 | 692 | 674 | 134.7 |
| C | 15 | 214 | 260091 | 1623.65 | 683 | 686 | 159.8 |
| C | 0 | 10 | 130061 | 809.77 | 683 | 686 | 159.8 |
| C | 0 | 207 | 80514 | 499.65 | 683 | 686 | 159.8 |
| D | 12 | 6 | 861530 | 5330.4 | 659 | 641 | 161.5 |
| D | 13 | 249 | 712349 | 4406.71 | 659 | 641 | 161.5 |
| D | 2 | 249 | 385774 | 2384.64 | 659 | 641 | 161.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

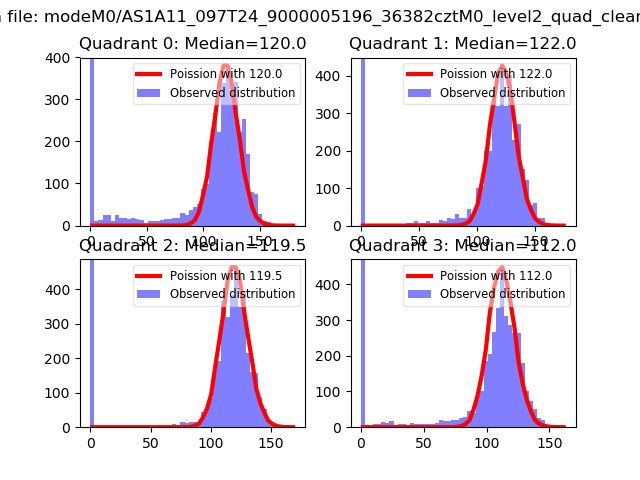

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

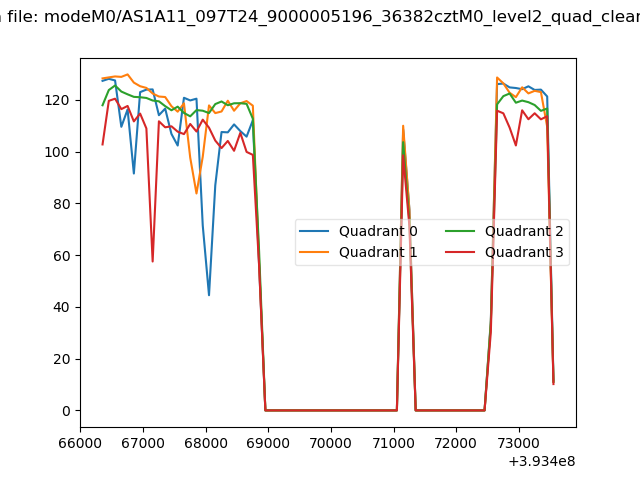

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

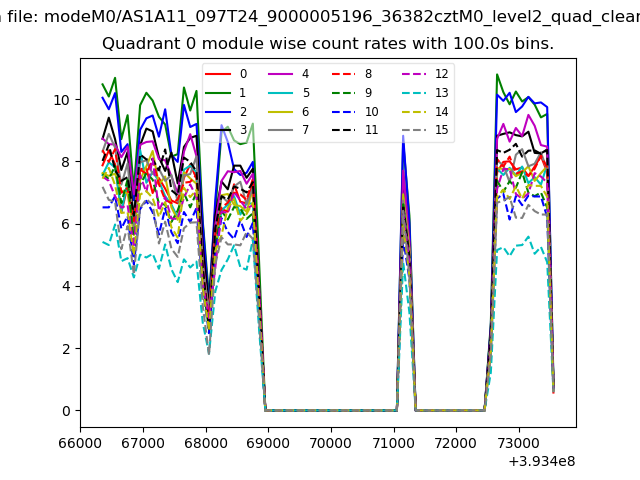

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

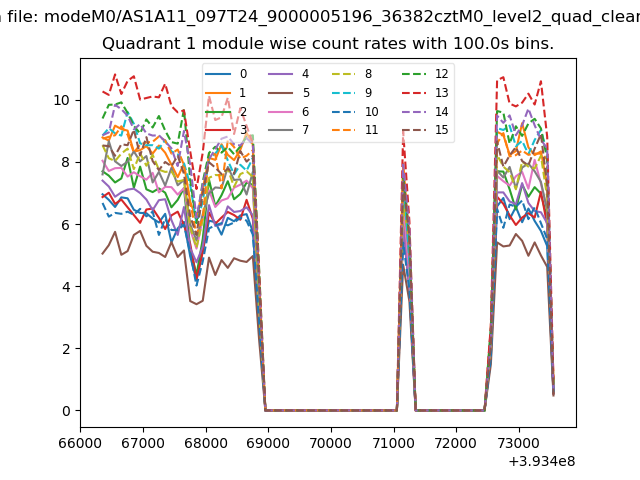

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

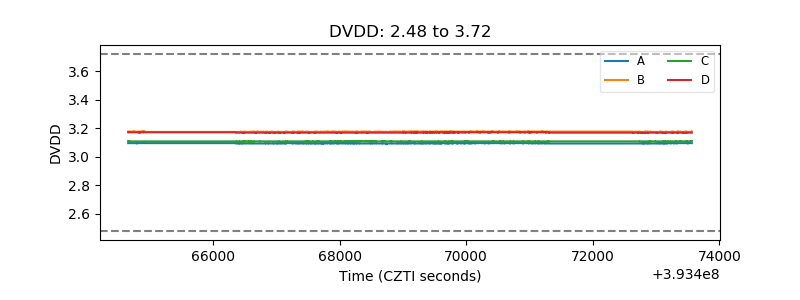

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

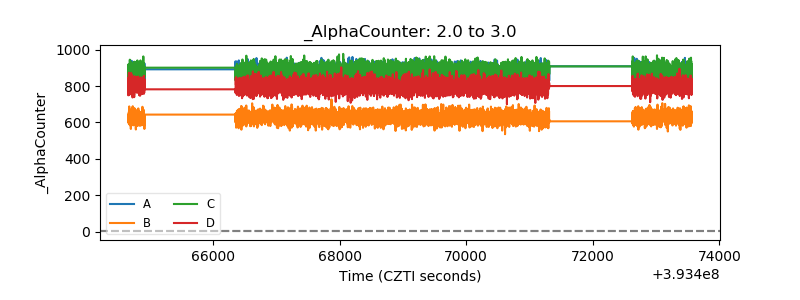

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
