| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A11_097T24_9000005196_36391cztM0_level2.evt | modeM0/AS1A11_097T24_9000005196_36391cztM0_level2_quad_clean.evt |
| Size (bytes) | 484,626,240 | 61,868,160 |
| Size | 462.2 MB | 59.0 MB |
| Events in quadrant A | 3,242,234 | 374,754 |
| Events in quadrant B | 3,539,436 | 370,923 |
| Events in quadrant C | 3,309,372 | 353,425 |
| Events in quadrant D | 4,160,739 | 336,542 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18 | 0 |
| B | 0 | 18 | 0 |
| C | 0 | 18 | 0 |
| D | 0 | 18 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13191 | 1 |
| B | 0 | 14241 | 1 |
| C | 0 | 13227 | 1 |
| D | 0 | 16410 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6263 | 8 | 0.127734% |
| B | 6263 | 44 | 0.702539% |
| C | 6263 | 34 | 0.542871% |
| D | 6263 | 188 | 3.001756% |

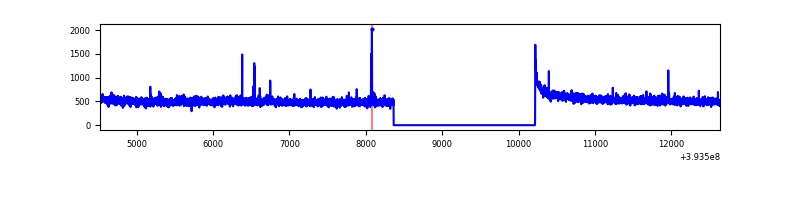

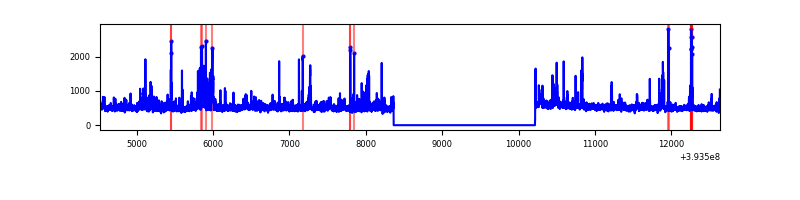

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8115 | 6264 | 1 | 1 | 0.01% | 0.02% |  |
| B | 8115 | 6264 | 19 | 19 | 0.23% | 0.30% |  |
| C | 8115 | 6264 | 21 | 21 | 0.26% | 0.34% |  |
| D | 8115 | 6264 | 180 | 180 | 2.22% | 2.87% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 157979 | 999.73 | 787 | 775 | 157.2 |
| A | 7 | 3 | 14676 | 88.4 | 787 | 775 | 157.2 |
| A | 13 | 254 | 11004 | 65.05 | 787 | 775 | 157.2 |
| B | 5 | 172 | 141138 | 960.35 | 771 | 753 | 146.2 |
| B | 0 | 189 | 110735 | 752.37 | 771 | 753 | 146.2 |
| B | 4 | 232 | 80354 | 544.54 | 771 | 753 | 146.2 |
| C | 15 | 214 | 259537 | 1496.68 | 750 | 758 | 172.9 |
| C | 0 | 10 | 106539 | 611.8 | 750 | 758 | 172.9 |
| C | 0 | 207 | 12711 | 69.13 | 750 | 758 | 172.9 |
| D | 12 | 6 | 688950 | 3783.62 | 751 | 733 | 181.9 |
| D | 12 | 227 | 164116 | 898.23 | 751 | 733 | 181.9 |
| D | 2 | 250 | 93527 | 510.15 | 751 | 733 | 181.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

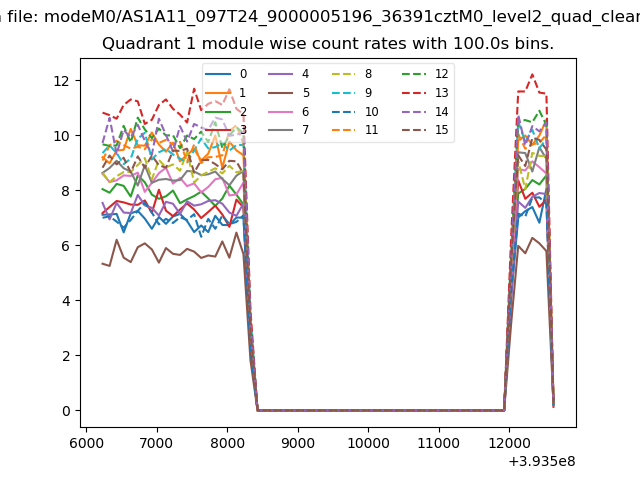

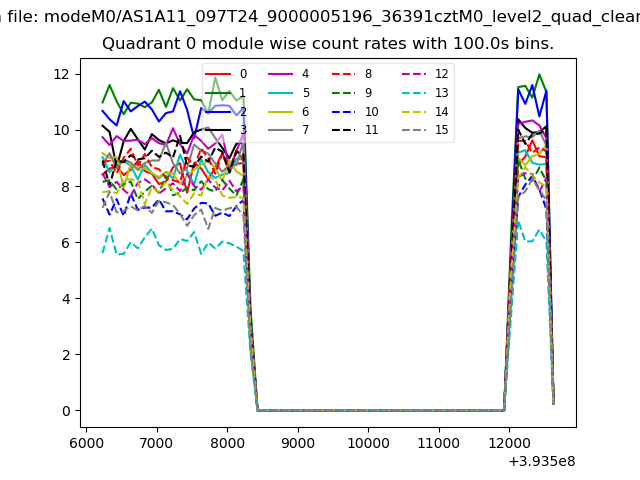

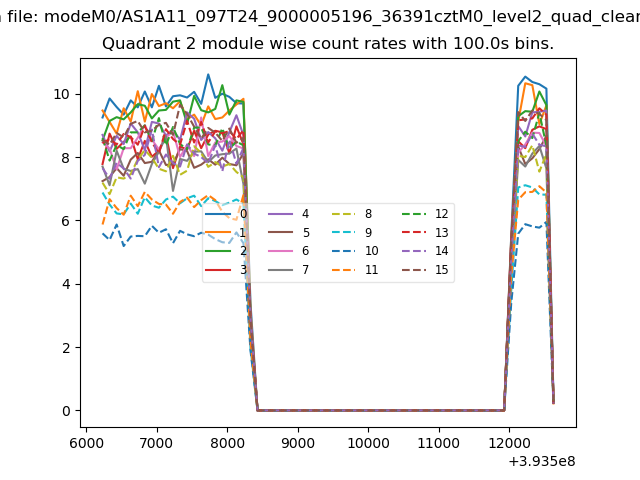

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

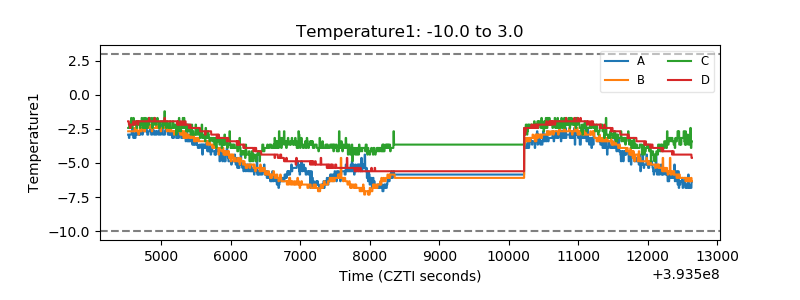

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

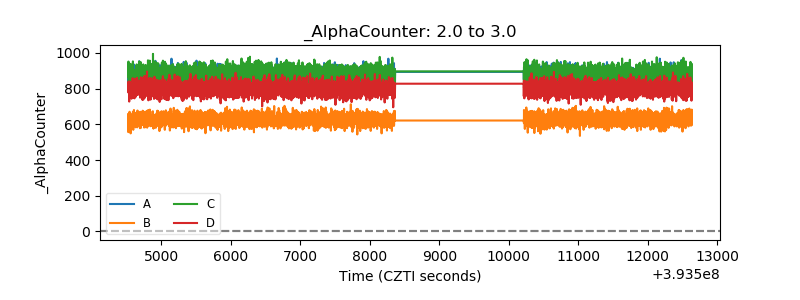

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

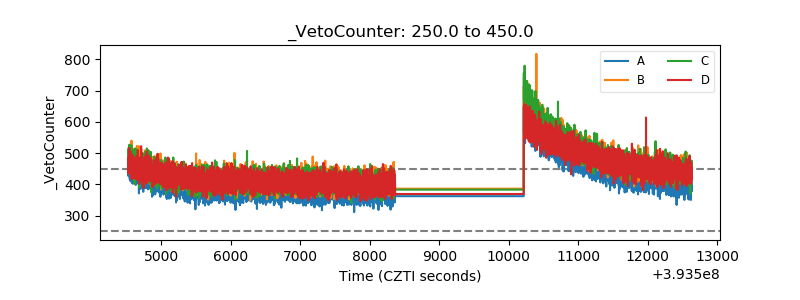

| Veto Counter |  |
