| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T04_084T01_9000005198_36390cztM0_level2.evt | modeM0/AS1T04_084T01_9000005198_36390cztM0_level2_quad_clean.evt |
| Size (bytes) | 189,624,960 | 27,302,400 |
| Size | 180.8 MB | 26.0 MB |
| Events in quadrant A | 1,235,443 | 169,764 |
| Events in quadrant B | 1,566,265 | 168,113 |
| Events in quadrant C | 1,311,737 | 167,547 |
| Events in quadrant D | 1,475,164 | 158,872 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 5031 | 2 |
| B | 0 | 6152 | 1 |
| C | 0 | 5100 | 1 |
| D | 0 | 5834 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 46 | 0 |
| B | 0 | 46 | 0 |
| C | 0 | 46 | 0 |
| D | 0 | 46 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 20 | 0 |
| B | 0 | 20 | 0 |
| C | 0 | 20 | 0 |
| D | 0 | 20 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 2244 | 3 | 0.133690% |
| B | 2244 | 63 | 2.807487% |
| C | 2244 | 27 | 1.203209% |
| D | 2244 | 42 | 1.871658% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 4216 | 2245 | 0 | 0 | 0.00% | 0.00% |  |
| B | 4216 | 2245 | 42 | 42 | 1.00% | 1.87% |  |
| C | 4216 | 2245 | 21 | 21 | 0.50% | 0.94% |  |
| D | 4216 | 2245 | 39 | 39 | 0.93% | 1.74% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 86269 | 1416.81 | 295 | 290 | 60.7 |
| A | 13 | 254 | 3869 | 58.98 | 295 | 290 | 60.7 |
| A | 9 | 143 | 2864 | 42.42 | 295 | 290 | 60.7 |
| B | 5 | 172 | 227457 | 4007.51 | 292 | 285 | 56.7 |
| B | 5 | 255 | 55843 | 980.09 | 292 | 285 | 56.7 |
| B | 0 | 189 | 55649 | 976.67 | 292 | 285 | 56.7 |
| C | 15 | 214 | 97589 | 1438.88 | 286 | 289 | 67.6 |
| C | 0 | 10 | 94577 | 1394.33 | 286 | 289 | 67.6 |
| C | 2 | 16 | 2545 | 33.36 | 286 | 289 | 67.6 |
| D | 13 | 249 | 103710 | 1464.14 | 286 | 279 | 70.6 |
| D | 12 | 6 | 97411 | 1374.97 | 286 | 279 | 70.6 |
| D | 2 | 249 | 55316 | 779.09 | 286 | 279 | 70.6 |

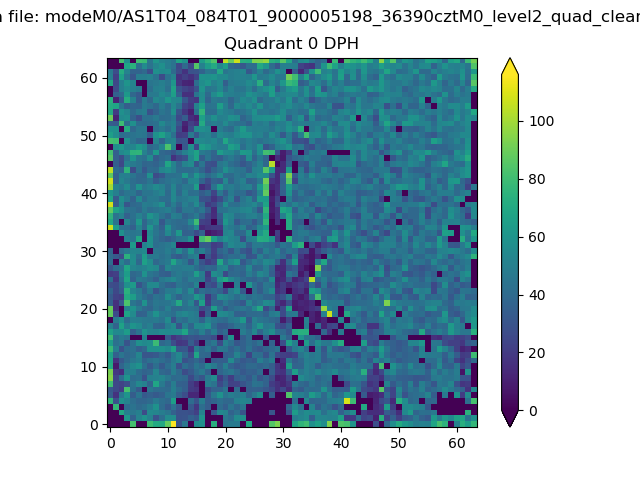

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

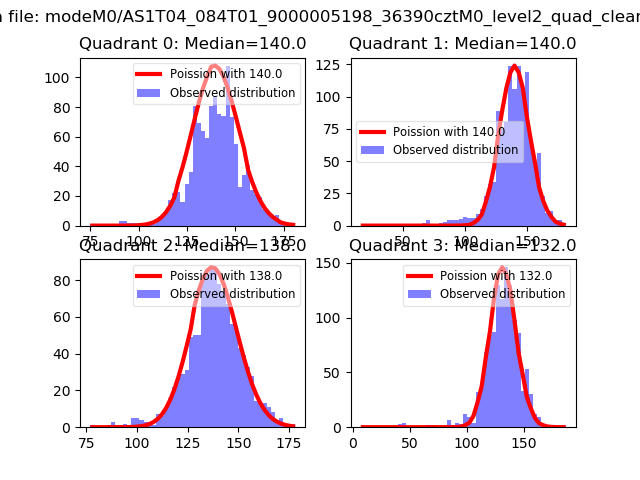

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

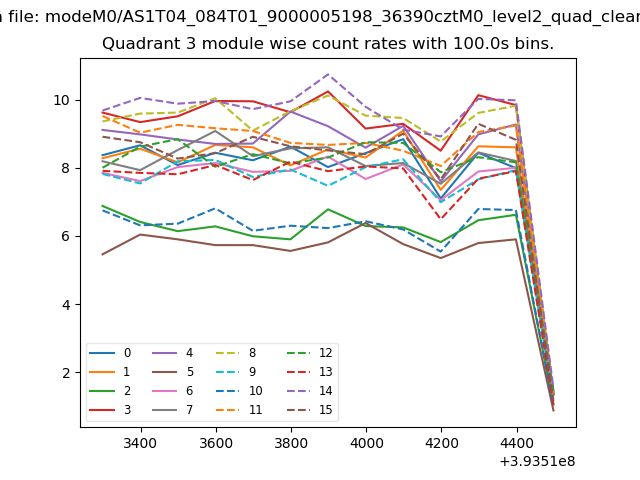

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

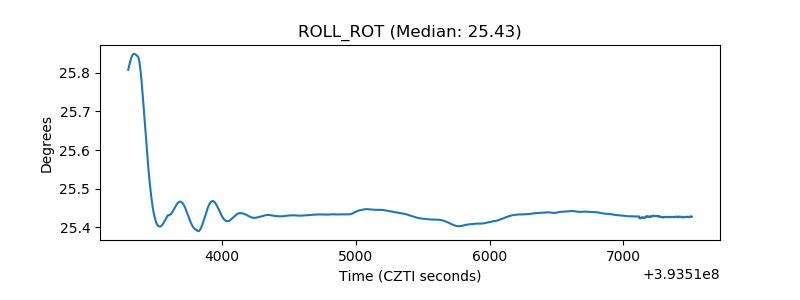

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

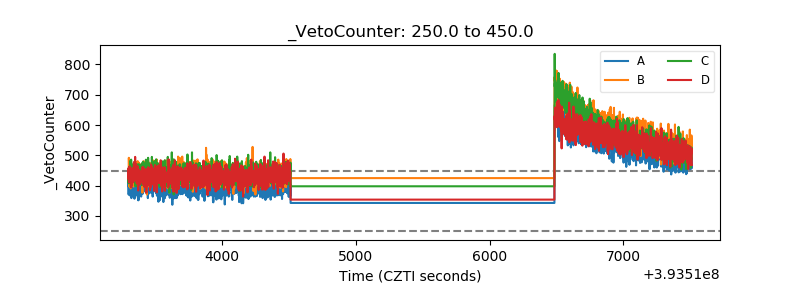

| Veto Counter |  |
