| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T04_084T01_9000005198_36409cztM0_level2.evt | modeM0/AS1T04_084T01_9000005198_36409cztM0_level2_quad_clean.evt |
| Size (bytes) | 447,742,080 | 81,028,800 |
| Size | 427.0 MB | 77.3 MB |
| Events in quadrant A | 2,627,366 | 531,919 |
| Events in quadrant B | 3,837,974 | 530,087 |
| Events in quadrant C | 2,919,775 | 523,164 |
| Events in quadrant D | 3,808,214 | 490,565 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11245 | 3 |
| B | 0 | 14988 | 2 |
| C | 0 | 11841 | 2 |
| D | 0 | 14919 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 110 | 0 |
| B | 0 | 110 | 0 |
| C | 0 | 110 | 0 |
| D | 0 | 110 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 35 | 0 |
| B | 0 | 35 | 0 |
| C | 0 | 35 | 0 |
| D | 0 | 36 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5398 | 10 | 0.185254% |
| B | 5398 | 167 | 3.093738% |
| C | 5398 | 113 | 2.093368% |
| D | 5398 | 255 | 4.723972% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

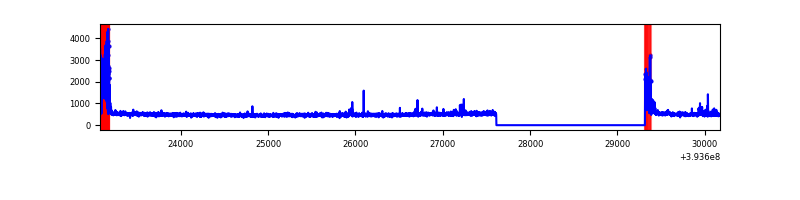

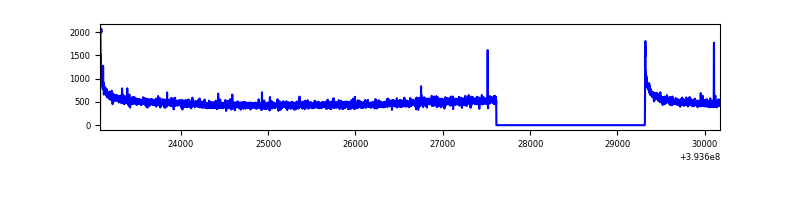

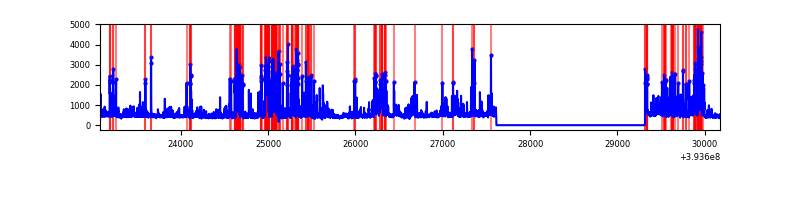

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7101 | 5399 | 3 | 3 | 0.04% | 0.06% |  |
| B | 7101 | 5399 | 93 | 93 | 1.31% | 1.72% |  |
| C | 7101 | 5399 | 71 | 71 | 1.00% | 1.32% |  |
| D | 7101 | 5399 | 254 | 254 | 3.58% | 4.70% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 184551 | 1449.76 | 626 | 614 | 126.9 |
| A | 13 | 254 | 10240 | 75.87 | 626 | 614 | 126.9 |
| A | 3 | 137 | 6564 | 46.9 | 626 | 614 | 126.9 |
| B | 5 | 255 | 462630 | 3856.84 | 616 | 600 | 119.8 |
| B | 5 | 172 | 307483 | 2561.74 | 616 | 600 | 119.8 |
| B | 0 | 183 | 262781 | 2188.58 | 616 | 600 | 119.8 |
| C | 0 | 10 | 303581 | 2137.66 | 605 | 609 | 141.7 |
| C | 15 | 214 | 230222 | 1620.07 | 605 | 609 | 141.7 |
| C | 0 | 207 | 24656 | 169.67 | 605 | 609 | 141.7 |
| D | 12 | 6 | 655999 | 4400.48 | 603 | 585 | 148.9 |
| D | 13 | 249 | 315566 | 2114.79 | 603 | 585 | 148.9 |
| D | 2 | 153 | 202167 | 1353.43 | 603 | 585 | 148.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

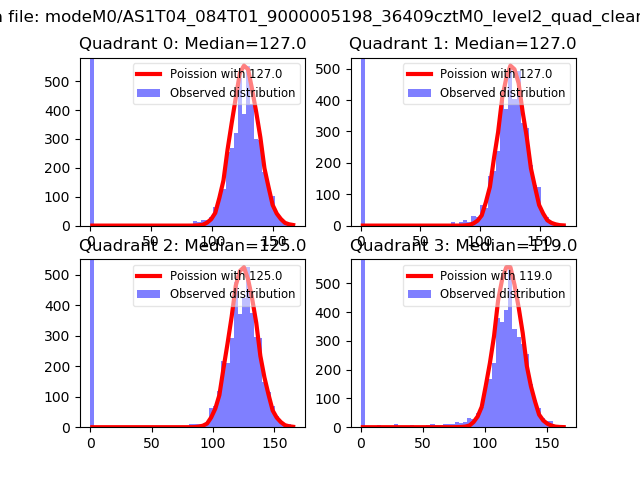

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

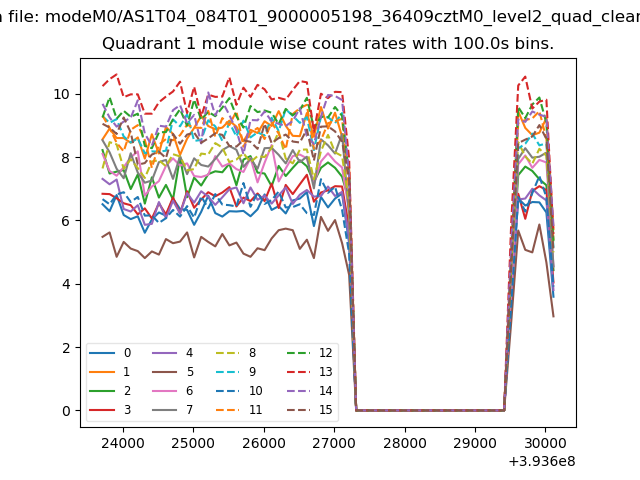

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

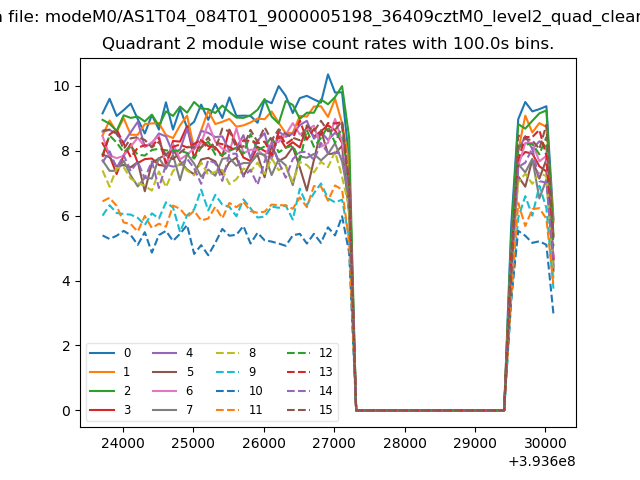

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

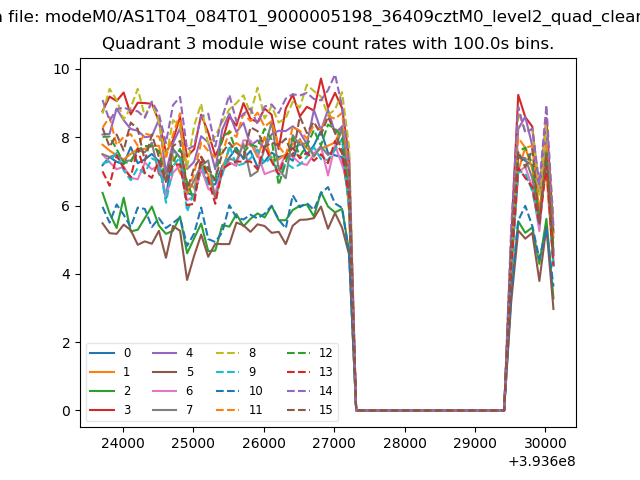

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

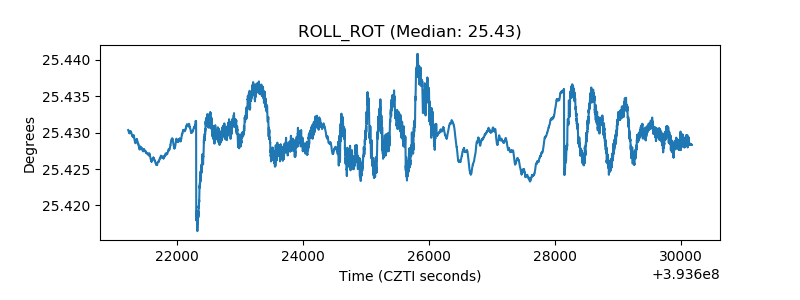

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
