| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C07_009T01_9000005200_36433cztM0_level2.evt | modeM0/AS1C07_009T01_9000005200_36433cztM0_level2_quad_clean.evt |
| Size (bytes) | 403,845,120 | 84,444,480 |
| Size | 385.1 MB | 80.5 MB |
| Events in quadrant A | 2,816,200 | 558,367 |
| Events in quadrant B | 3,167,893 | 553,916 |
| Events in quadrant C | 2,921,146 | 543,637 |
| Events in quadrant D | 2,960,088 | 525,291 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11699 | 3 |
| B | 0 | 12852 | 2 |
| C | 0 | 11855 | 2 |
| D | 0 | 12328 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 108 | 0 |
| B | 0 | 108 | 0 |
| C | 0 | 108 | 0 |
| D | 0 | 108 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 20 | 0 |
| B | 0 | 20 | 0 |
| C | 0 | 20 | 0 |
| D | 0 | 20 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5378 | 29 | 0.539234% |
| B | 5378 | 57 | 1.059874% |
| C | 5378 | 61 | 1.134251% |
| D | 5378 | 54 | 1.004091% |

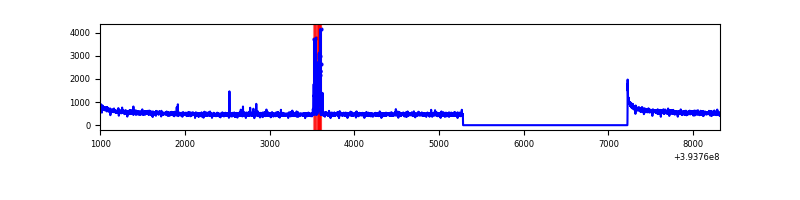

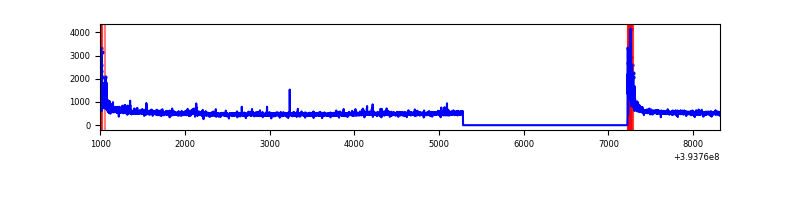

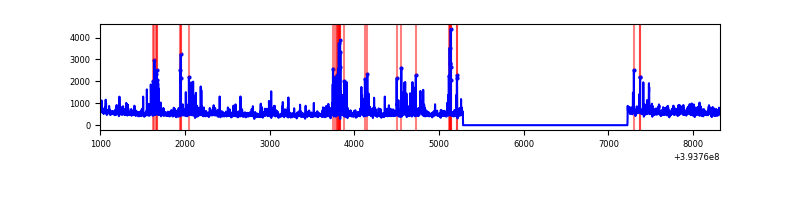

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

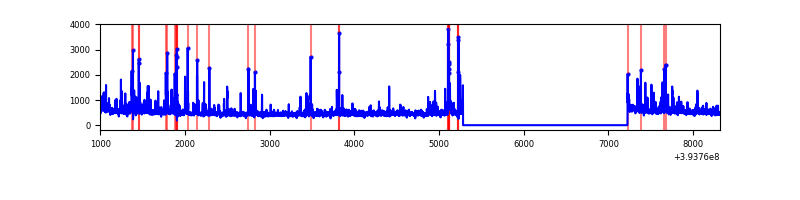

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7321 | 5379 | 20 | 20 | 0.27% | 0.37% |  |
| B | 7321 | 5379 | 38 | 38 | 0.52% | 0.71% |  |
| C | 7321 | 5379 | 34 | 34 | 0.46% | 0.63% |  |
| D | 7321 | 5379 | 32 | 32 | 0.44% | 0.59% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 174807 | 1338.1 | 658 | 645 | 130.2 |
| A | 7 | 3 | 91384 | 697.16 | 658 | 645 | 130.2 |
| A | 13 | 254 | 9526 | 68.23 | 658 | 645 | 130.2 |
| B | 5 | 255 | 219609 | 1835.52 | 644 | 629 | 119.3 |
| B | 0 | 189 | 204049 | 1705.1 | 644 | 629 | 119.3 |
| B | 5 | 172 | 74313 | 617.63 | 644 | 629 | 119.3 |
| C | 0 | 10 | 246824 | 1723.8 | 625 | 630 | 142.8 |
| C | 15 | 214 | 229873 | 1605.11 | 625 | 630 | 142.8 |
| C | 12 | 249 | 5129 | 31.5 | 625 | 630 | 142.8 |
| D | 13 | 171 | 103777 | 674.28 | 639 | 623 | 153.0 |
| D | 10 | 199 | 92354 | 599.61 | 639 | 623 | 153.0 |
| D | 12 | 16 | 82062 | 532.34 | 639 | 623 | 153.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

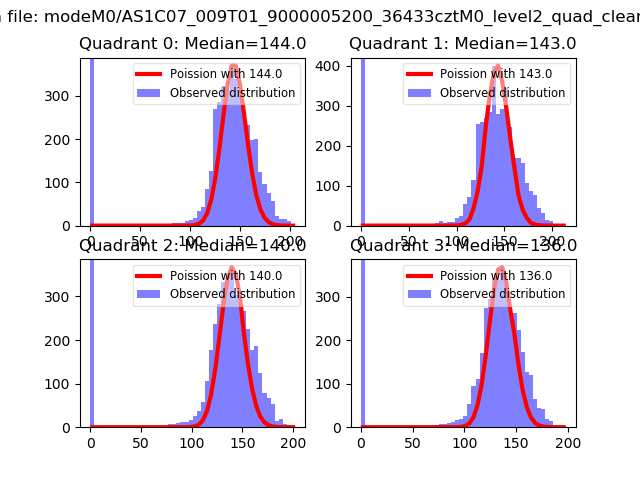

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

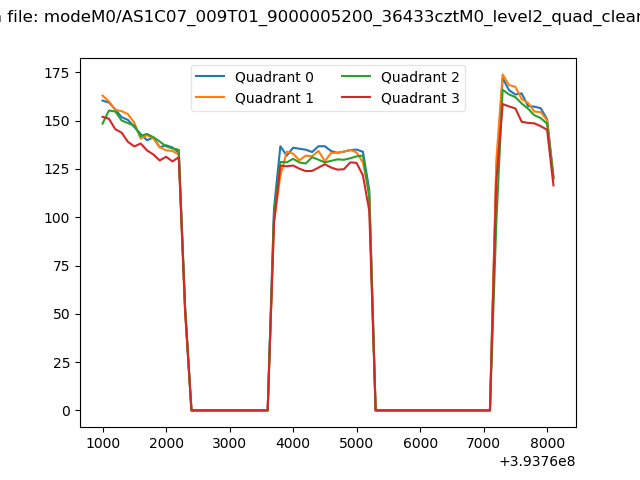

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

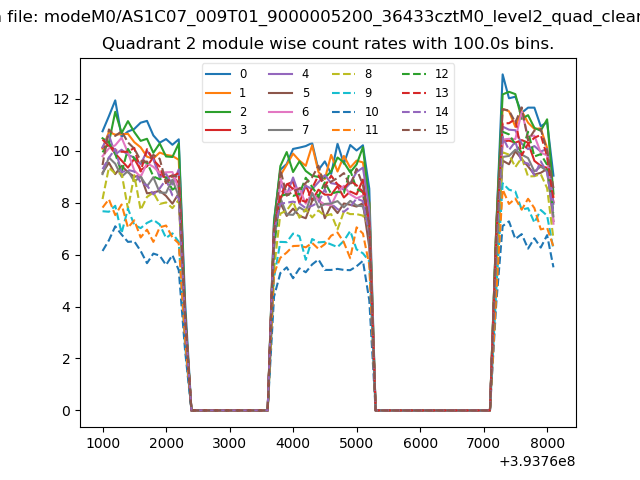

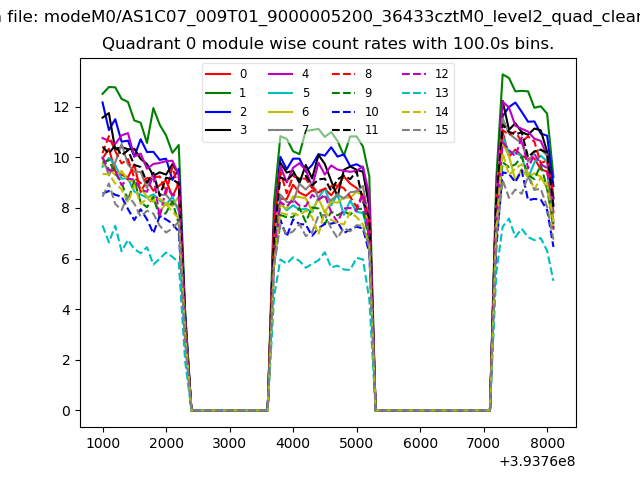

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

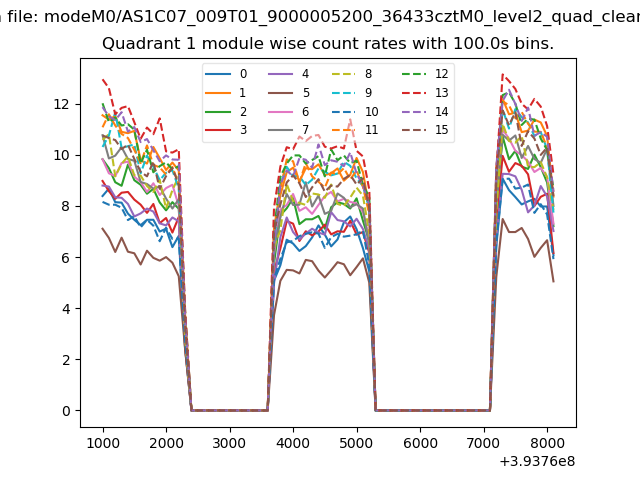

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

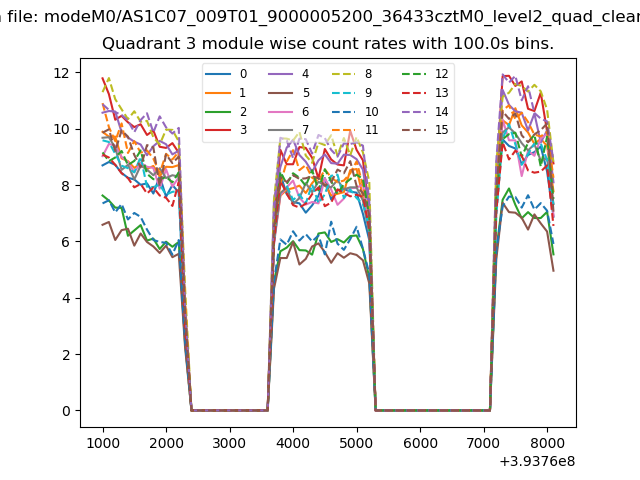

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

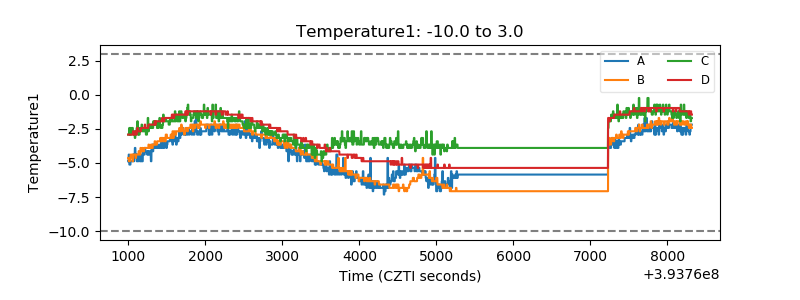

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

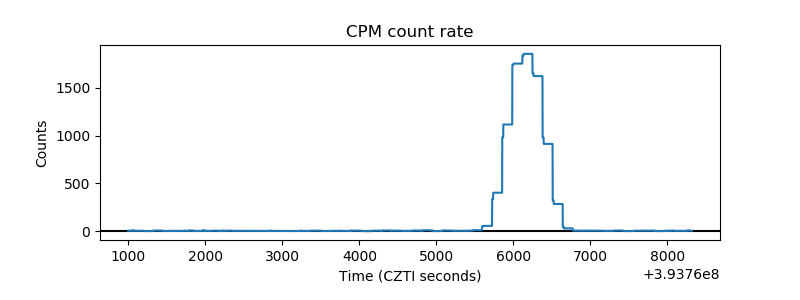

| _CPM_Rate |  |

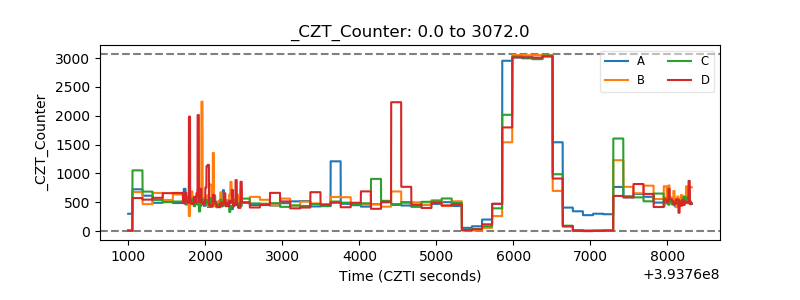

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

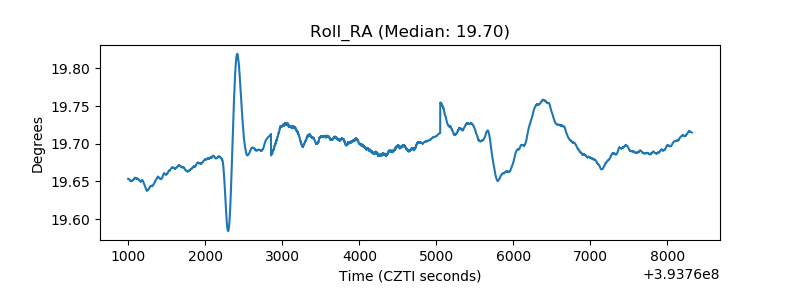

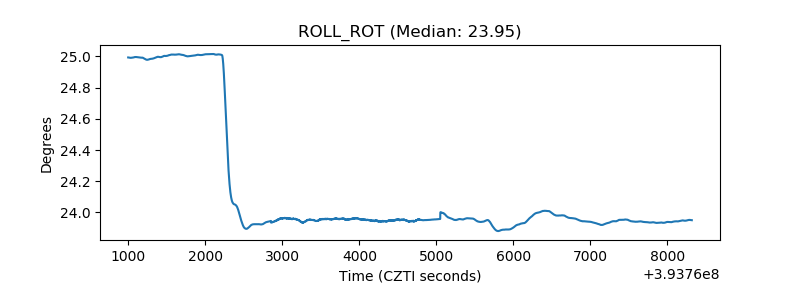

| _ROLL_ROT |  |

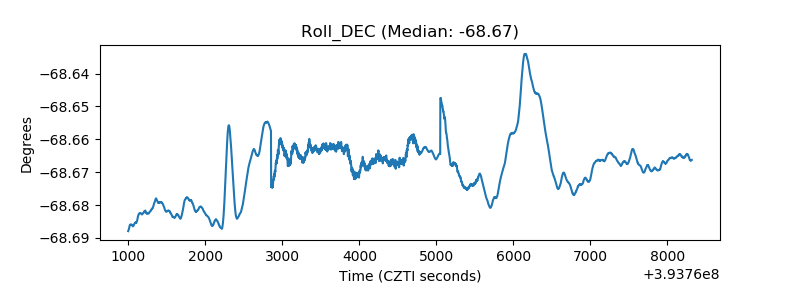

| _Roll_DEC |  |
| _Roll_RA |  |

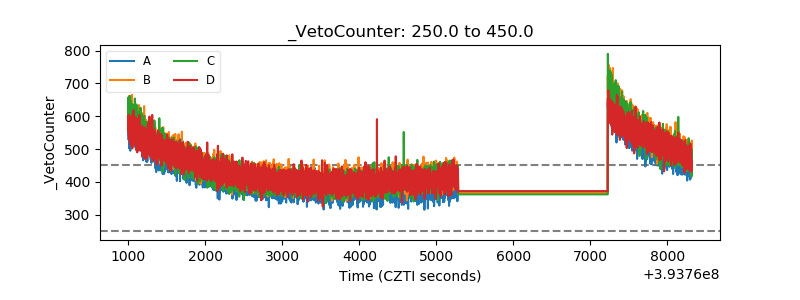

| Veto Counter |  |
