| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C07_009T01_9000005200_36439cztM0_level2.evt | modeM0/AS1C07_009T01_9000005200_36439cztM0_level2_quad_clean.evt |
| Size (bytes) | 425,162,880 | 97,951,680 |
| Size | 405.5 MB | 93.4 MB |
| Events in quadrant A | 2,681,377 | 659,267 |
| Events in quadrant B | 3,698,788 | 650,066 |
| Events in quadrant C | 3,058,621 | 640,599 |
| Events in quadrant D | 3,050,430 | 618,506 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11738 | 3 |
| B | 0 | 14794 | 2 |
| C | 0 | 12578 | 2 |
| D | 0 | 13139 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 116 | 0 |
| B | 0 | 116 | 0 |
| C | 0 | 116 | 0 |
| D | 0 | 116 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 29 | 0 |
| B | 0 | 29 | 0 |
| C | 0 | 29 | 0 |
| D | 0 | 30 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5691 | 7 | 0.123001% |
| B | 5691 | 228 | 4.006326% |
| C | 5691 | 85 | 1.493586% |
| D | 5691 | 114 | 2.003163% |

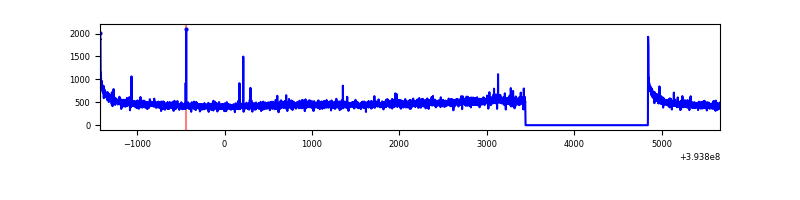

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7094 | 5692 | 2 | 2 | 0.03% | 0.04% |  |
| B | 7094 | 5692 | 124 | 124 | 1.75% | 2.18% |  |
| C | 7094 | 5692 | 60 | 60 | 0.85% | 1.05% |  |
| D | 7094 | 5692 | 92 | 92 | 1.30% | 1.62% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 193589 | 1484.6 | 637 | 624 | 130.0 |
| A | 10 | 255 | 11449 | 83.28 | 637 | 624 | 130.0 |
| A | 13 | 254 | 10467 | 75.72 | 637 | 624 | 130.0 |
| B | 5 | 172 | 451094 | 3756.21 | 624 | 608 | 119.9 |
| B | 5 | 255 | 268924 | 2237.25 | 624 | 608 | 119.9 |
| B | 0 | 189 | 191369 | 1590.59 | 624 | 608 | 119.9 |
| C | 0 | 10 | 284111 | 1997.87 | 617 | 620 | 141.9 |
| C | 15 | 214 | 243425 | 1711.14 | 617 | 620 | 141.9 |
| C | 0 | 207 | 111342 | 780.3 | 617 | 620 | 141.9 |
| D | 13 | 171 | 136788 | 911.49 | 617 | 598 | 149.4 |
| D | 2 | 250 | 115708 | 770.41 | 617 | 598 | 149.4 |
| D | 10 | 118 | 114300 | 760.98 | 617 | 598 | 149.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

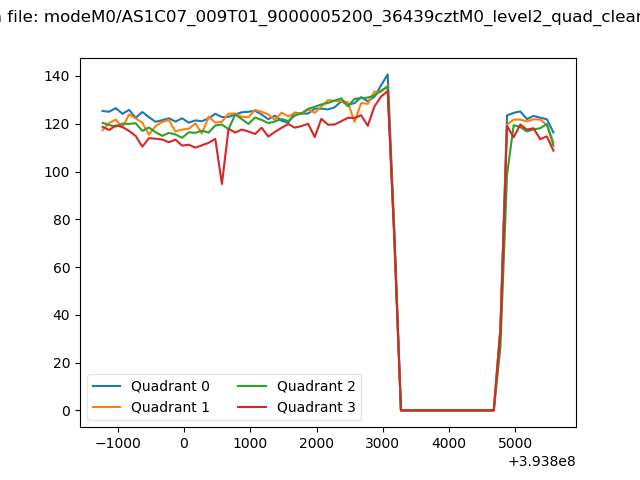

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

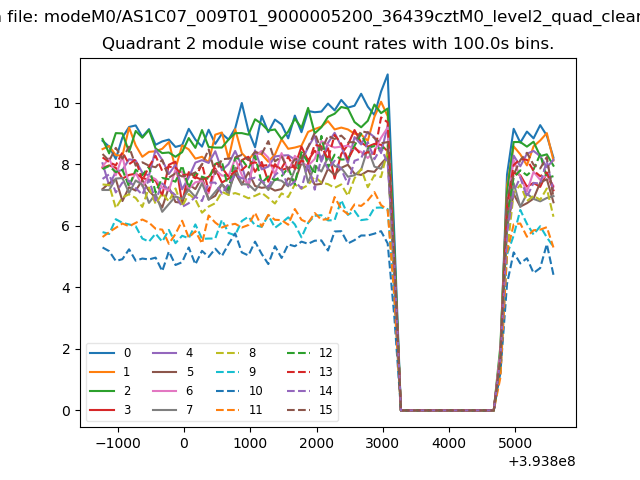

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

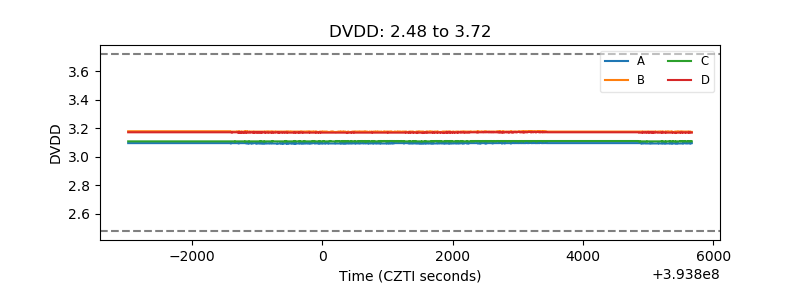

| D_VDD |  |
| Temperature 1 |  |

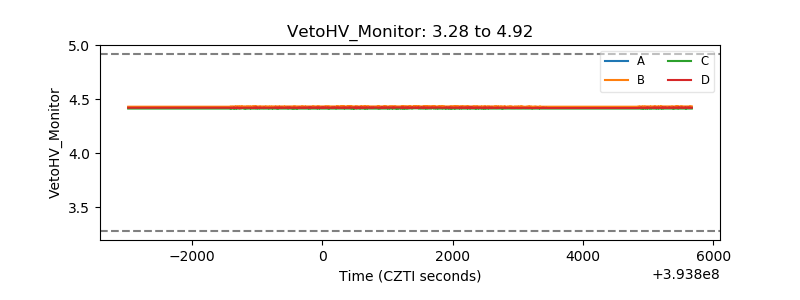

| Veto HV Monitor |  |

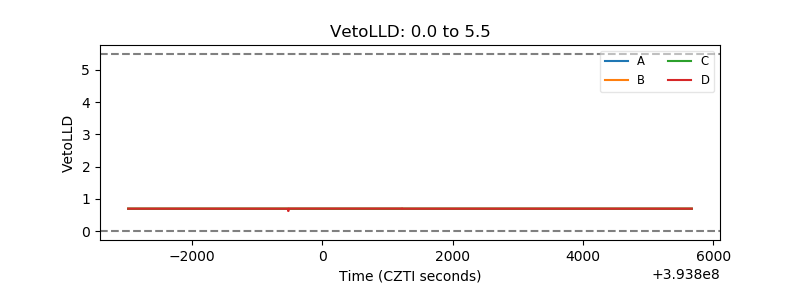

| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

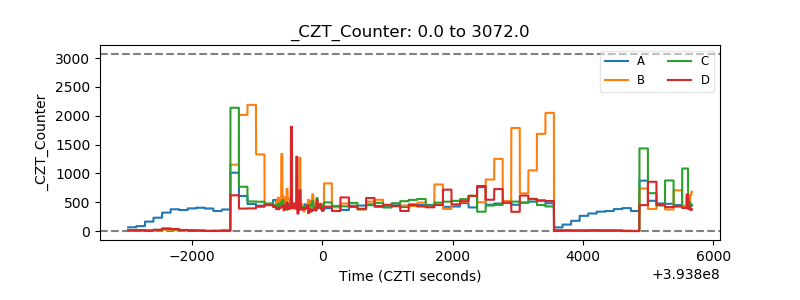

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

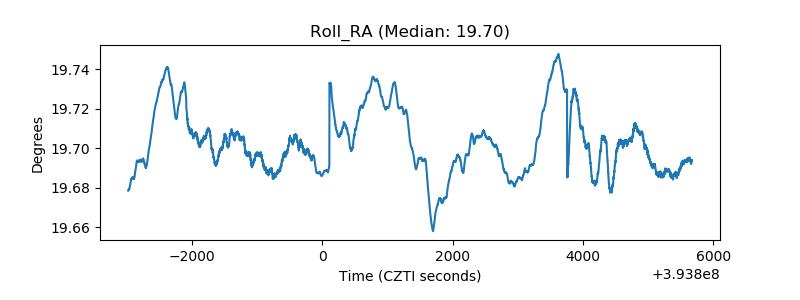

| _Roll_RA |  |
| Veto Counter |  |
