| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C07_009T01_9000005200_36448cztM0_level2.evt | modeM0/AS1C07_009T01_9000005200_36448cztM0_level2_quad_clean.evt |
| Size (bytes) | 417,067,200 | 78,166,080 |
| Size | 397.7 MB | 74.5 MB |
| Events in quadrant A | 2,659,913 | 515,391 |
| Events in quadrant B | 3,520,106 | 506,278 |
| Events in quadrant C | 2,860,778 | 500,023 |
| Events in quadrant D | 3,238,153 | 482,220 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11005 | 2 |
| B | 0 | 13840 | 1 |
| C | 0 | 11516 | 1 |
| D | 0 | 12953 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 106 | 0 |
| B | 0 | 106 | 0 |
| C | 0 | 106 | 0 |
| D | 0 | 106 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 20 | 0 |
| B | 0 | 20 | 0 |
| C | 0 | 20 | 0 |
| D | 0 | 20 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5180 | 10 | 0.193050% |
| B | 5180 | 156 | 3.011583% |
| C | 5180 | 53 | 1.023166% |
| D | 5180 | 107 | 2.065637% |

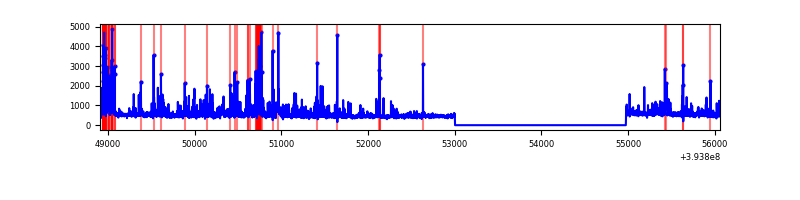

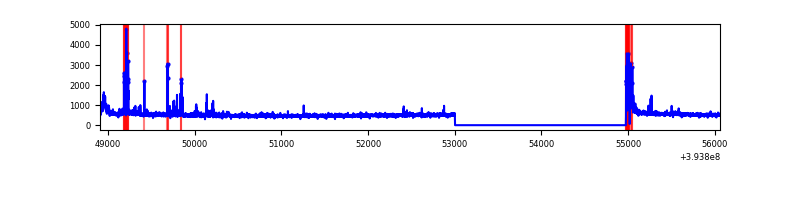

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7153 | 5181 | 1 | 1 | 0.01% | 0.02% |  |
| B | 7153 | 5181 | 95 | 95 | 1.33% | 1.83% |  |
| C | 7153 | 5181 | 35 | 35 | 0.49% | 0.68% |  |
| D | 7153 | 5181 | 82 | 82 | 1.15% | 1.58% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 154305 | 1202.47 | 641 | 630 | 127.8 |
| A | 9 | 143 | 14475 | 108.33 | 641 | 630 | 127.8 |
| A | 13 | 254 | 9370 | 68.39 | 641 | 630 | 127.8 |
| B | 5 | 255 | 500657 | 4330.53 | 620 | 605 | 115.5 |
| B | 5 | 172 | 308538 | 2666.75 | 620 | 605 | 115.5 |
| B | 0 | 189 | 69674 | 598.15 | 620 | 605 | 115.5 |
| C | 15 | 214 | 222402 | 1605.01 | 606 | 612 | 138.2 |
| C | 0 | 207 | 155636 | 1121.85 | 606 | 612 | 138.2 |
| C | 0 | 10 | 113594 | 817.61 | 606 | 612 | 138.2 |
| D | 12 | 233 | 277572 | 1911.56 | 615 | 601 | 144.9 |
| D | 12 | 6 | 196534 | 1352.26 | 615 | 601 | 144.9 |
| D | 13 | 171 | 127995 | 879.23 | 615 | 601 | 144.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

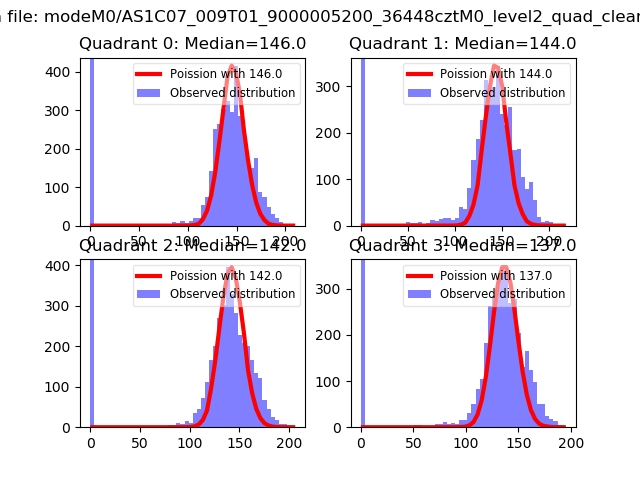

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

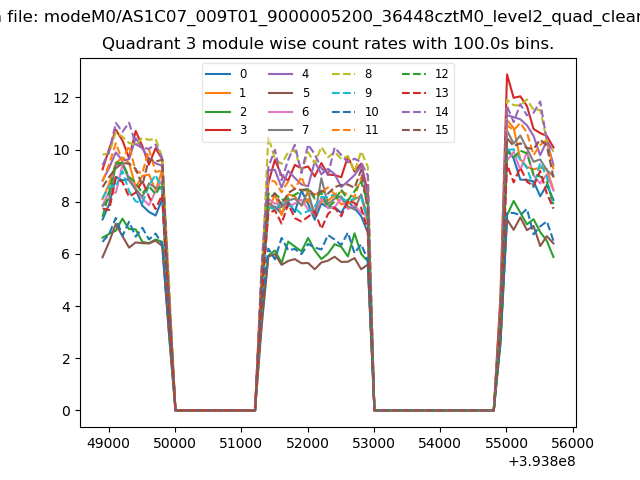

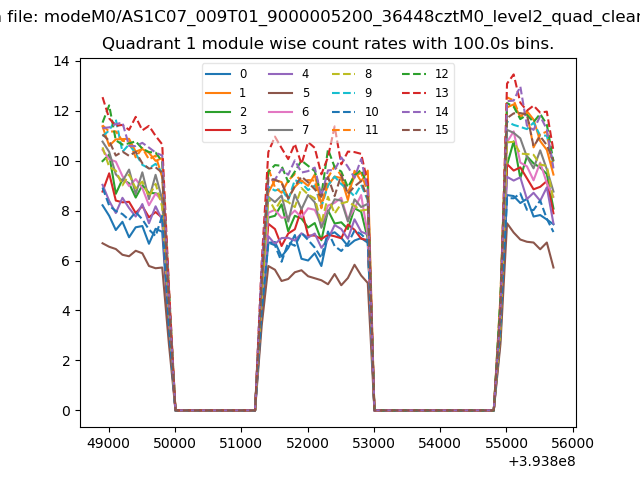

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

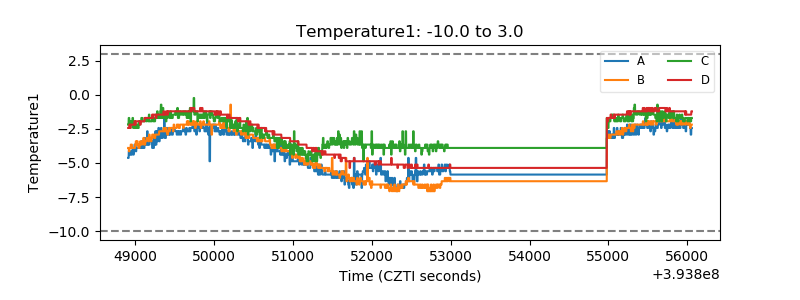

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

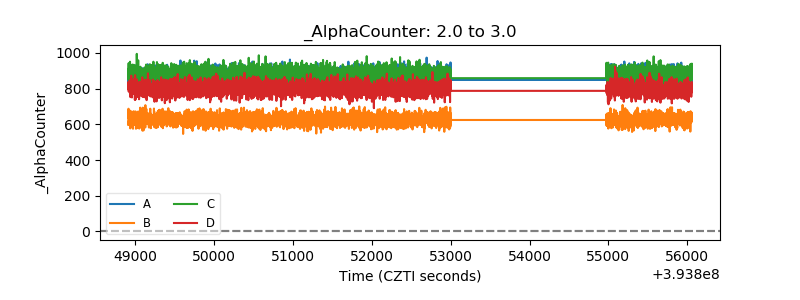

| Alpha Counter |  |

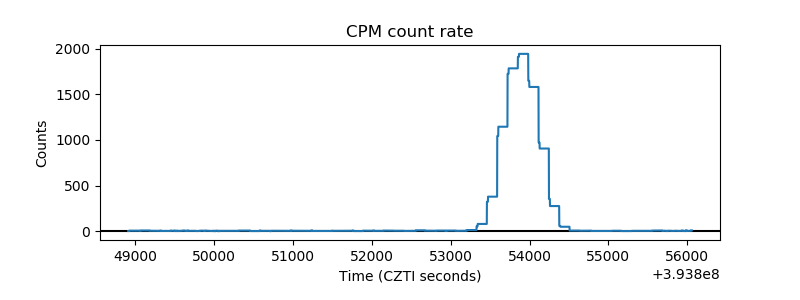

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
