| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A11_003T08_9000005202_36458cztM0_level2.evt | modeM0/AS1A11_003T08_9000005202_36458cztM0_level2_quad_clean.evt |
| Size (bytes) | 399,677,760 | 62,824,320 |
| Size | 381.2 MB | 59.9 MB |
| Events in quadrant A | 2,791,971 | 382,749 |
| Events in quadrant B | 3,161,728 | 382,814 |
| Events in quadrant C | 2,948,810 | 374,726 |
| Events in quadrant D | 2,812,790 | 362,153 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 118 | 0 |
| B | 0 | 118 | 0 |
| C | 0 | 118 | 0 |
| D | 0 | 118 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18 | 0 |
| B | 0 | 18 | 0 |
| C | 0 | 18 | 0 |
| D | 0 | 19 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11832 | 3 |
| B | 0 | 13108 | 2 |
| C | 0 | 12030 | 2 |
| D | 0 | 12353 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5711 | 11 | 0.192611% |
| B | 5711 | 124 | 2.171248% |
| C | 5711 | 42 | 0.735423% |
| D | 5711 | 40 | 0.700403% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7262 | 5712 | 1 | 1 | 0.01% | 0.02% |  |
| B | 7262 | 5712 | 65 | 65 | 0.90% | 1.14% |  |
| C | 7262 | 5712 | 24 | 24 | 0.33% | 0.42% |  |
| D | 7262 | 5712 | 29 | 29 | 0.40% | 0.51% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 200075 | 1513.03 | 659 | 645 | 131.8 |
| A | 7 | 3 | 15994 | 116.45 | 659 | 645 | 131.8 |
| A | 10 | 255 | 10106 | 71.78 | 659 | 645 | 131.8 |
| B | 5 | 172 | 412922 | 3257.43 | 650 | 633 | 126.6 |
| B | 5 | 255 | 112328 | 882.49 | 650 | 633 | 126.6 |
| B | 0 | 245 | 23161 | 177.99 | 650 | 633 | 126.6 |
| C | 15 | 214 | 270808 | 1813.32 | 636 | 640 | 149.0 |
| C | 0 | 10 | 162930 | 1089.26 | 636 | 640 | 149.0 |
| C | 2 | 16 | 9489 | 59.39 | 636 | 640 | 149.0 |
| D | 13 | 249 | 76511 | 481.34 | 637 | 618 | 157.7 |
| D | 2 | 249 | 66854 | 420.09 | 637 | 618 | 157.7 |
| D | 13 | 171 | 45747 | 286.22 | 637 | 618 | 157.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

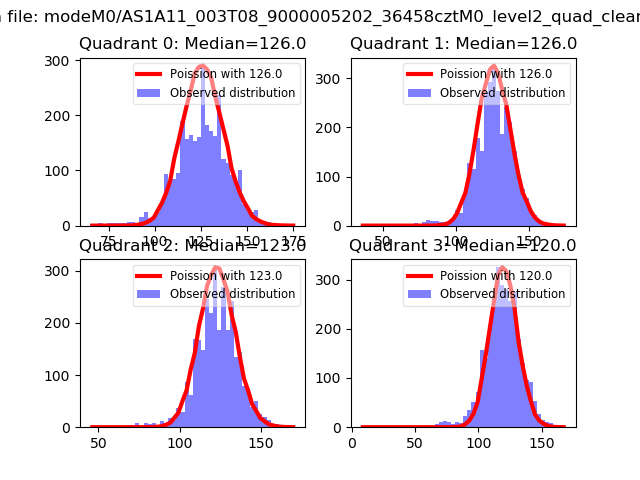

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
