| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A11_049T05_9000005212_36494cztM0_level2.evt | modeM0/AS1A11_049T05_9000005212_36494cztM0_level2_quad_clean.evt |
| Size (bytes) | 233,602,560 | 37,025,280 |
| Size | 222.8 MB | 35.3 MB |
| Events in quadrant A | 1,394,953 | 240,383 |
| Events in quadrant B | 1,591,371 | 234,603 |
| Events in quadrant C | 1,443,350 | 228,445 |
| Events in quadrant D | 2,455,701 | 219,698 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 54 | 0 |
| B | 0 | 54 | 0 |
| C | 0 | 54 | 0 |
| D | 0 | 54 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 5828 | 2 |
| B | 0 | 6502 | 1 |
| C | 0 | 5918 | 1 |
| D | 0 | 9245 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 22 | 0 |
| B | 0 | 22 | 0 |
| C | 0 | 22 | 0 |
| D | 0 | 22 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 2775 | 4 | 0.144144% |
| B | 2775 | 37 | 1.333333% |
| C | 2775 | 33 | 1.189189% |
| D | 2775 | 127 | 4.576577% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 4898 | 2776 | 0 | 0 | 0.00% | 0.00% |  |
| B | 4898 | 2776 | 23 | 23 | 0.47% | 0.83% |  |
| C | 4898 | 2776 | 15 | 15 | 0.31% | 0.54% |  |
| D | 4898 | 2776 | 122 | 122 | 2.49% | 4.39% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 104741 | 1541.78 | 331 | 326 | 67.7 |
| A | 13 | 254 | 5315 | 73.67 | 331 | 326 | 67.7 |
| A | 9 | 143 | 3907 | 52.88 | 331 | 326 | 67.7 |
| B | 5 | 255 | 200510 | 3153.44 | 325 | 316 | 63.5 |
| B | 5 | 172 | 91839 | 1441.66 | 325 | 316 | 63.5 |
| B | 12 | 111 | 7561 | 114.12 | 325 | 316 | 63.5 |
| C | 15 | 214 | 119483 | 1608.03 | 313 | 314 | 74.1 |
| C | 0 | 10 | 103659 | 1394.5 | 313 | 314 | 74.1 |
| C | 13 | 61 | 2166 | 24.99 | 313 | 314 | 74.1 |
| D | 12 | 235 | 688814 | 8914.73 | 312 | 305 | 77.2 |
| D | 2 | 250 | 236189 | 3054.2 | 312 | 305 | 77.2 |
| D | 12 | 227 | 99200 | 1280.48 | 312 | 305 | 77.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

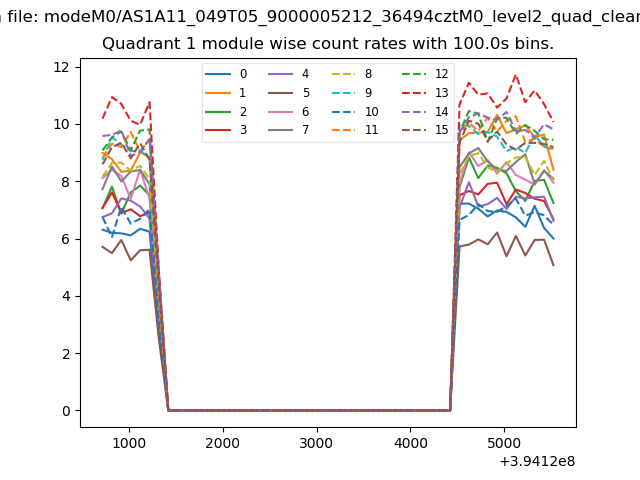

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

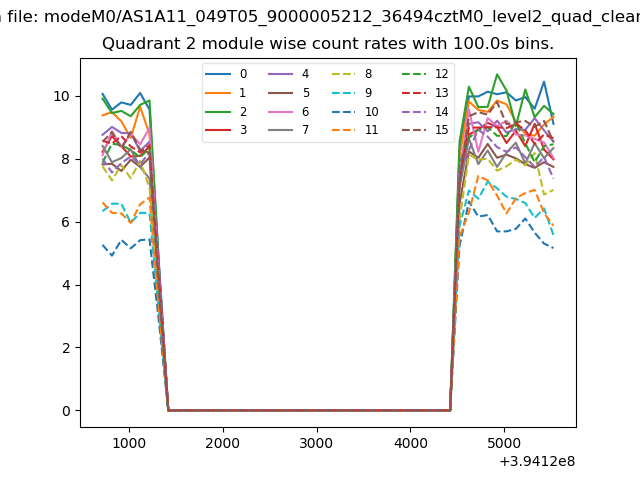

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

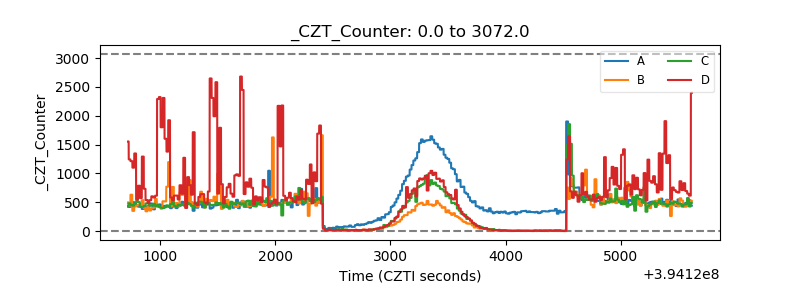

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

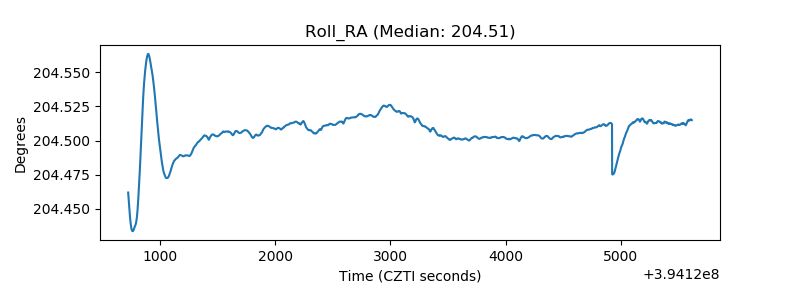

| _Roll_RA |  |

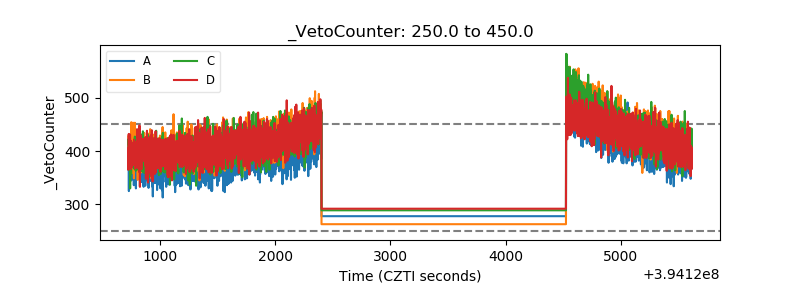

| Veto Counter |  |
