| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T05_035T01_9000005214_36520cztM0_level2.evt | modeM0/AS1T05_035T01_9000005214_36520cztM0_level2_quad_clean.evt |
| Size (bytes) | 421,450,560 | 61,934,400 |
| Size | 401.9 MB | 59.1 MB |
| Events in quadrant A | 2,854,456 | 387,765 |
| Events in quadrant B | 2,972,757 | 389,081 |
| Events in quadrant C | 2,957,729 | 381,365 |
| Events in quadrant D | 3,629,504 | 356,665 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11438 | 3 |
| B | 0 | 11764 | 2 |
| C | 0 | 11558 | 2 |
| D | 0 | 14034 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 106 | 0 |
| B | 0 | 106 | 0 |
| C | 0 | 106 | 0 |
| D | 0 | 106 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 26 | 0 |
| B | 0 | 26 | 0 |
| C | 0 | 26 | 0 |
| D | 0 | 27 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5137 | 28 | 0.545065% |
| B | 5137 | 69 | 1.343196% |
| C | 5137 | 101 | 1.966128% |
| D | 5137 | 205 | 3.990656% |

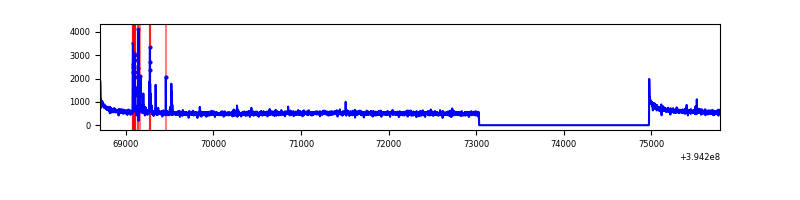

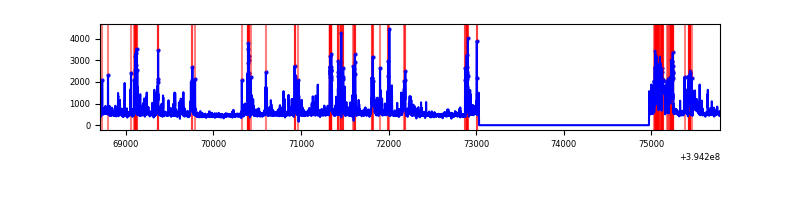

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

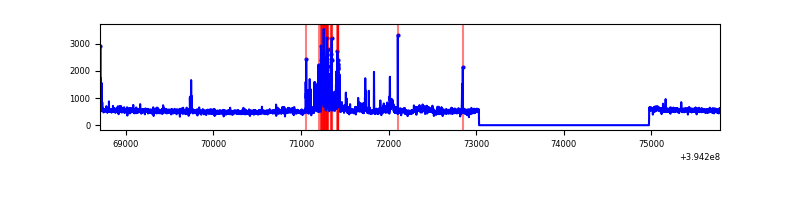

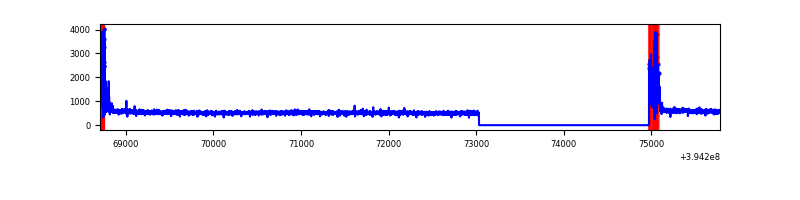

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7079 | 5138 | 18 | 18 | 0.25% | 0.35% |  |
| B | 7079 | 5138 | 39 | 39 | 0.55% | 0.76% |  |
| C | 7079 | 5138 | 59 | 59 | 0.83% | 1.15% |  |
| D | 7079 | 5138 | 165 | 165 | 2.33% | 3.21% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 195967 | 1483.78 | 660 | 649 | 131.6 |
| A | 9 | 143 | 97914 | 738.9 | 660 | 649 | 131.6 |
| A | 13 | 254 | 8005 | 55.88 | 660 | 649 | 131.6 |
| B | 5 | 172 | 270386 | 2177.28 | 652 | 636 | 123.9 |
| B | 0 | 213 | 42463 | 337.6 | 652 | 636 | 123.9 |
| B | 0 | 189 | 34057 | 269.76 | 652 | 636 | 123.9 |
| C | 0 | 10 | 273070 | 1875.03 | 632 | 638 | 145.3 |
| C | 15 | 214 | 220849 | 1515.62 | 632 | 638 | 145.3 |
| C | 13 | 61 | 4287 | 25.11 | 632 | 638 | 145.3 |
| D | 2 | 250 | 295797 | 1940.96 | 627 | 611 | 152.1 |
| D | 13 | 249 | 266730 | 1749.83 | 627 | 611 | 152.1 |
| D | 13 | 171 | 198118 | 1298.68 | 627 | 611 | 152.1 |

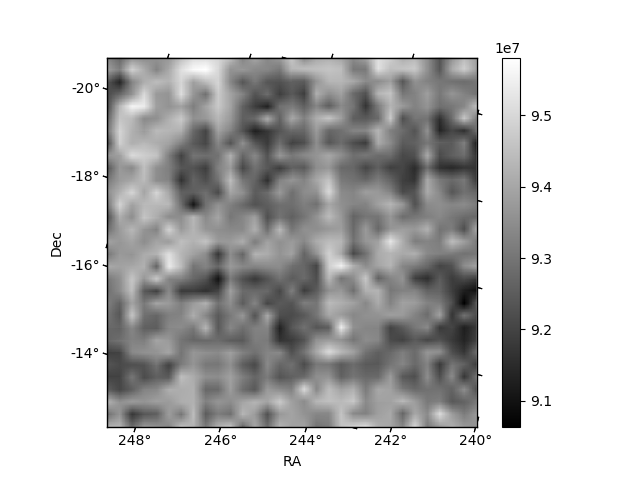

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

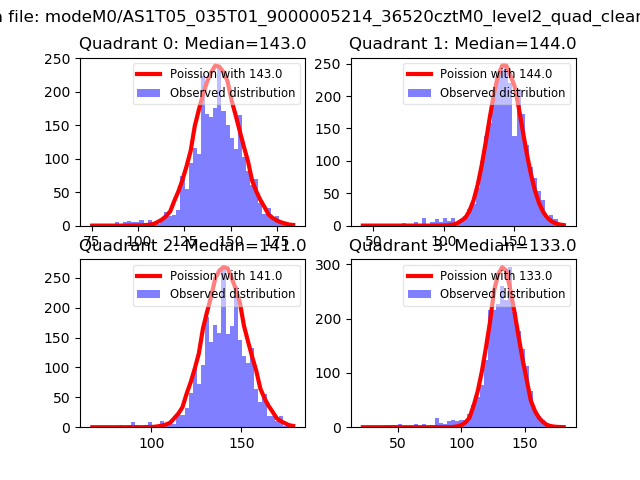

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

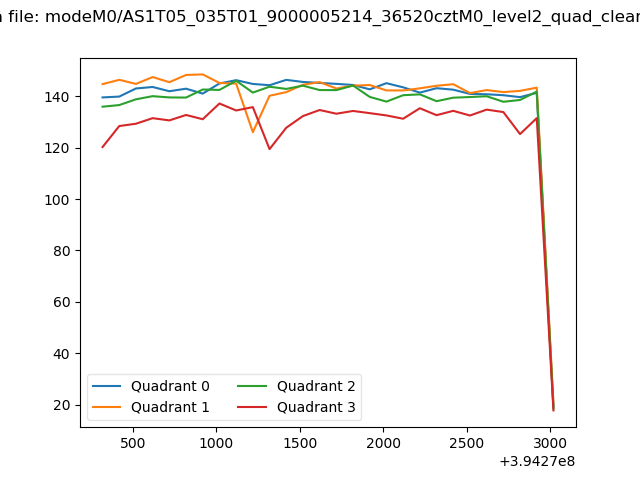

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

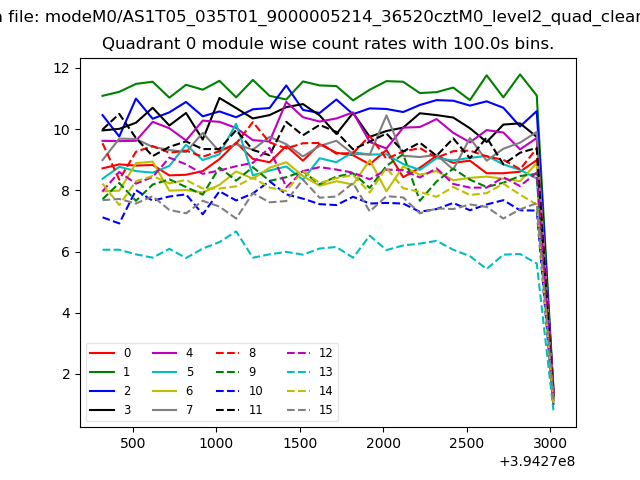

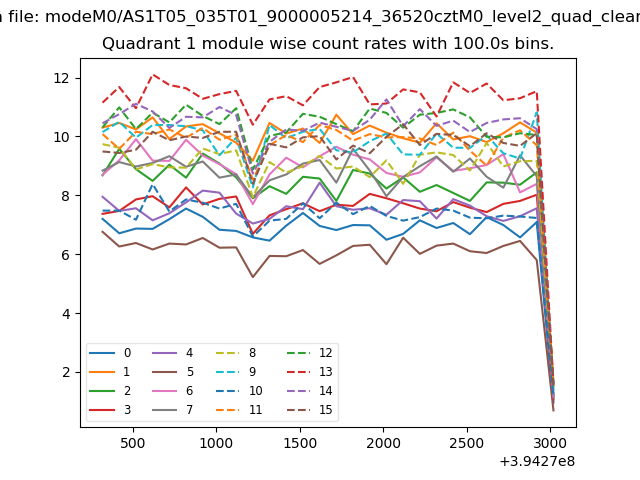

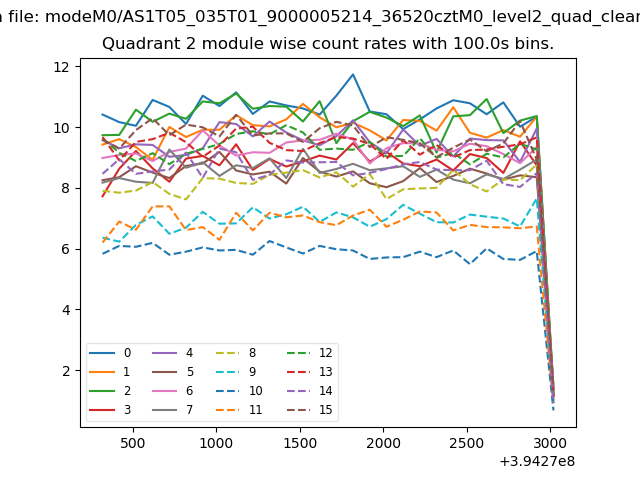

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

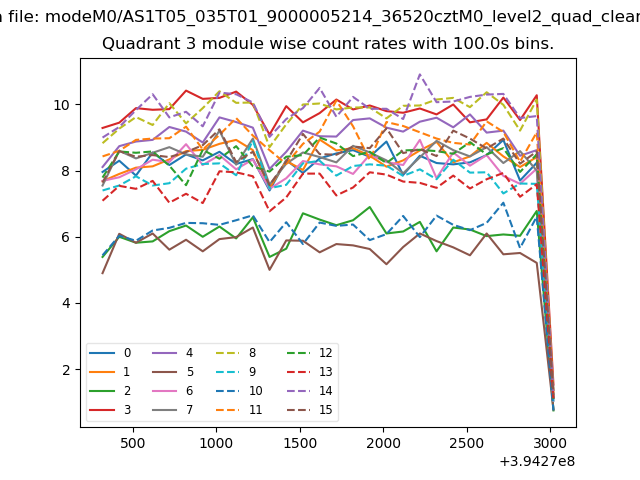

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

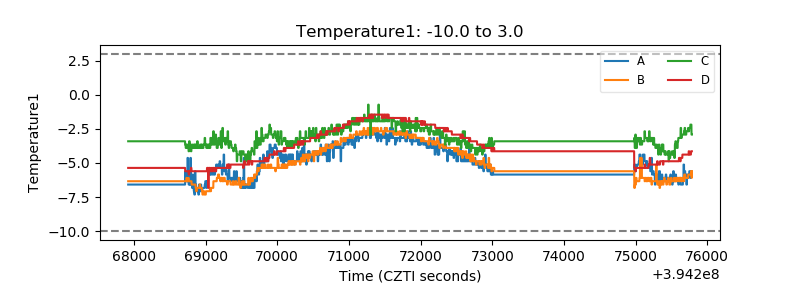

| Temperature 1 |  |

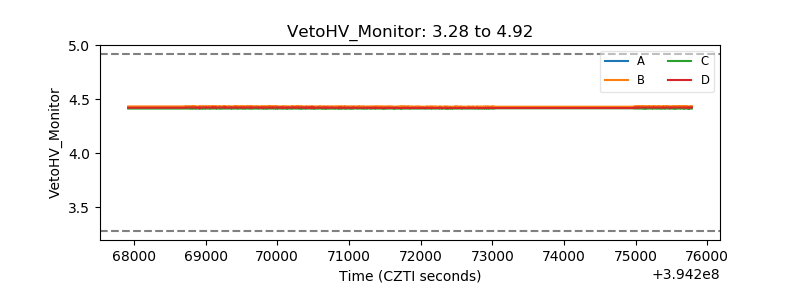

| Veto HV Monitor |  |
| Veto LLD |  |

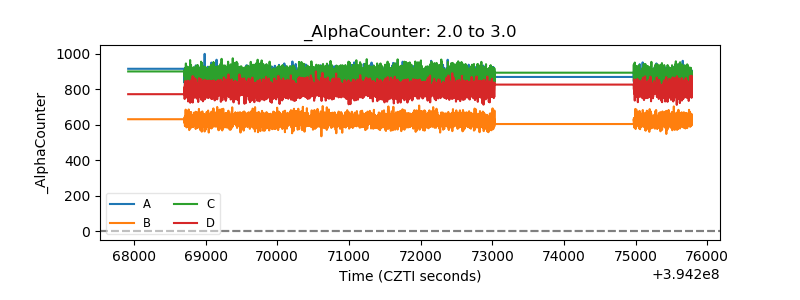

| Alpha Counter |  |

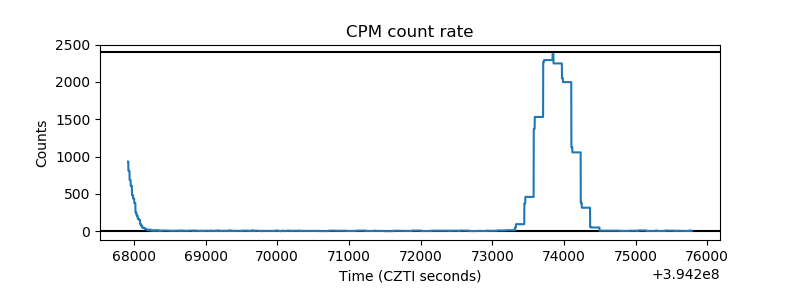

| _CPM_Rate |  |

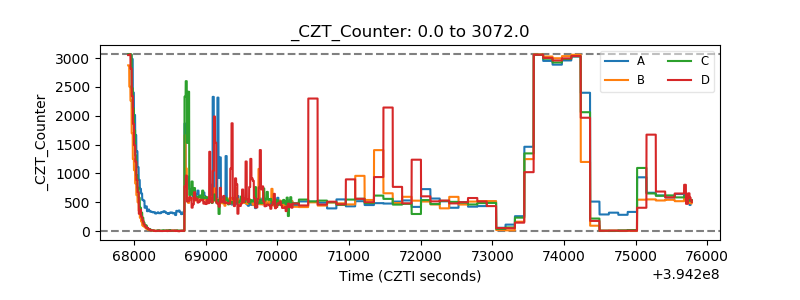

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

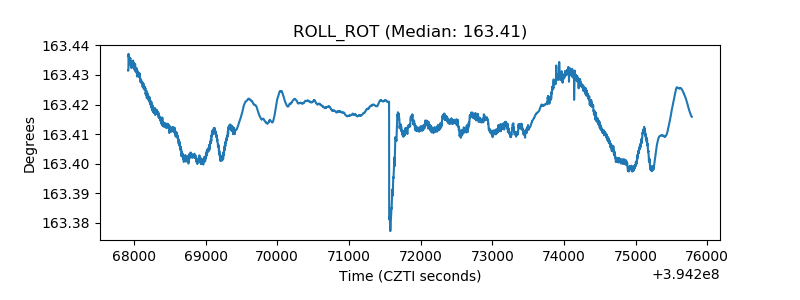

| _ROLL_ROT |  |

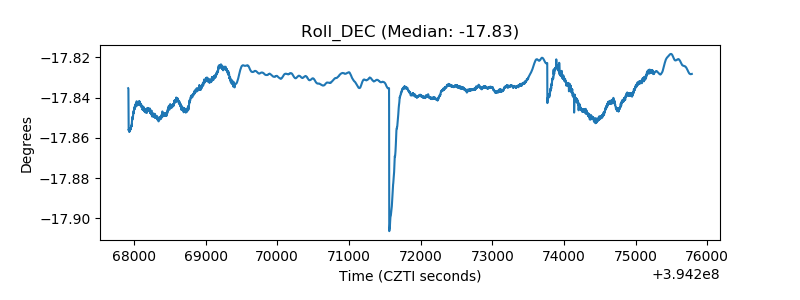

| _Roll_DEC |  |

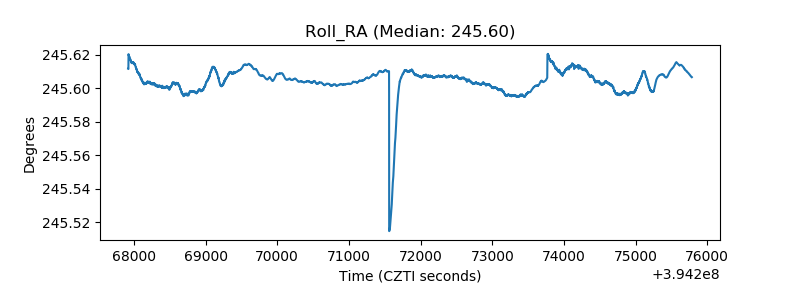

| _Roll_RA |  |

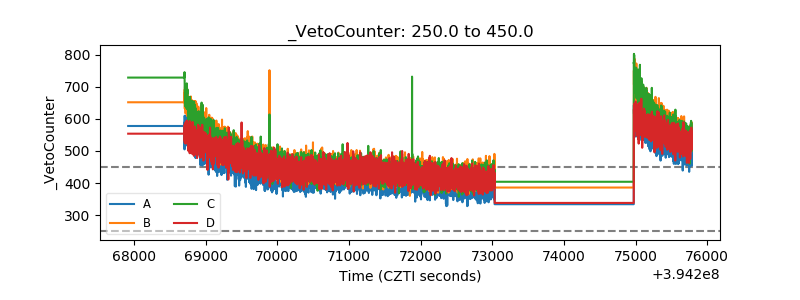

| Veto Counter |  |
