| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A11_089T02_9000005216_36538cztM0_level2.evt | modeM0/AS1A11_089T02_9000005216_36538cztM0_level2_quad_clean.evt |
| Size (bytes) | 488,269,440 | 84,343,680 |
| Size | 465.7 MB | 80.4 MB |
| Events in quadrant A | 3,518,127 | 566,464 |
| Events in quadrant B | 3,153,285 | 567,605 |
| Events in quadrant C | 3,520,035 | 531,560 |
| Events in quadrant D | 4,247,019 | 527,755 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 21 | 0 |
| B | 0 | 21 | 0 |
| C | 0 | 21 | 0 |
| D | 0 | 21 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13757 | 2 |
| B | 0 | 12565 | 1 |
| C | 0 | 13662 | 1 |
| D | 0 | 16136 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 104 | 0 |
| B | 0 | 104 | 0 |
| C | 0 | 104 | 0 |
| D | 0 | 104 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5150 | 348 | 6.757282% |
| B | 5150 | 100 | 1.941748% |
| C | 5150 | 306 | 5.941748% |
| D | 5150 | 224 | 4.349515% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

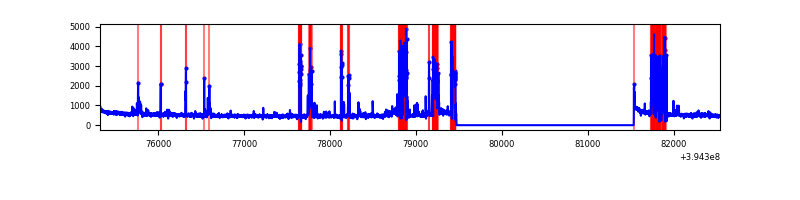

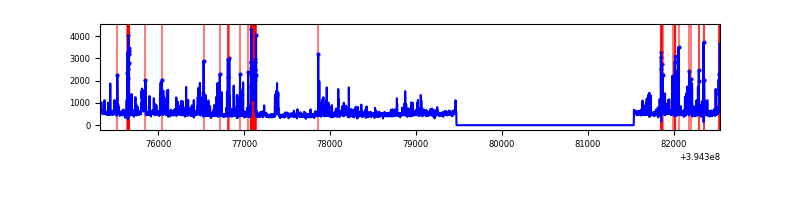

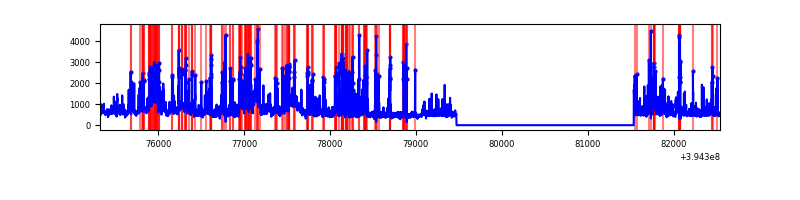

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7214 | 5151 | 254 | 254 | 3.52% | 4.93% |  |
| B | 7214 | 5151 | 80 | 80 | 1.11% | 1.55% |  |
| C | 7214 | 5151 | 203 | 203 | 2.81% | 3.94% |  |
| D | 7214 | 5151 | 227 | 227 | 3.15% | 4.41% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 223 | 1028958 | 8602.5 | 597 | 587 | 119.5 |
| A | 10 | 83 | 178636 | 1489.41 | 597 | 587 | 119.5 |
| A | 13 | 254 | 7657 | 59.14 | 597 | 587 | 119.5 |
| B | 5 | 172 | 319166 | 2722.5 | 604 | 590 | 117.0 |
| B | 5 | 255 | 140523 | 1195.84 | 604 | 590 | 117.0 |
| B | 5 | 63 | 116945 | 994.35 | 604 | 590 | 117.0 |
| C | 0 | 10 | 753107 | 5681.13 | 570 | 574 | 132.5 |
| C | 14 | 254 | 227374 | 1712.19 | 570 | 574 | 132.5 |
| C | 15 | 214 | 223574 | 1683.5 | 570 | 574 | 132.5 |
| D | 12 | 235 | 1011651 | 7068.97 | 591 | 578 | 143.0 |
| D | 2 | 153 | 251180 | 1752.09 | 591 | 578 | 143.0 |
| D | 2 | 250 | 231476 | 1614.33 | 591 | 578 | 143.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

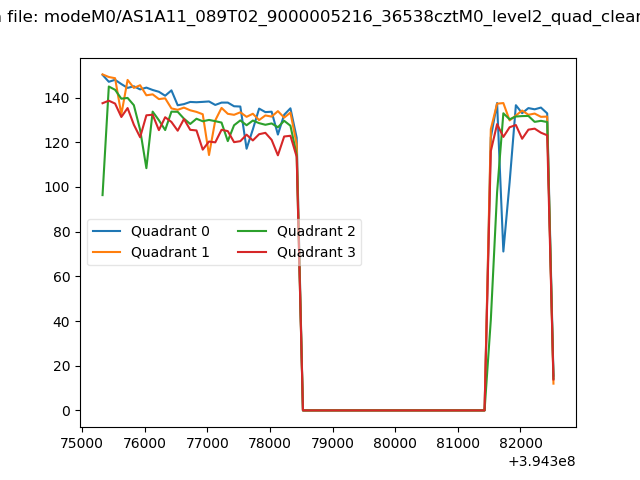

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

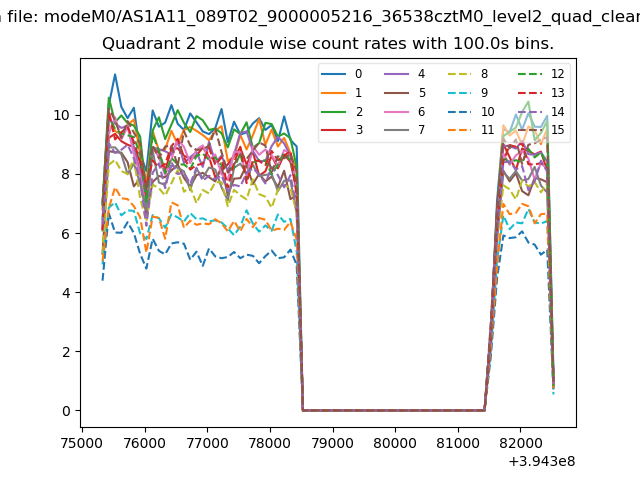

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

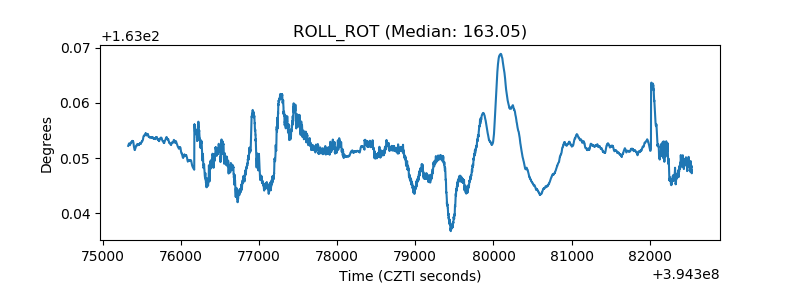

| _ROLL_ROT |  |

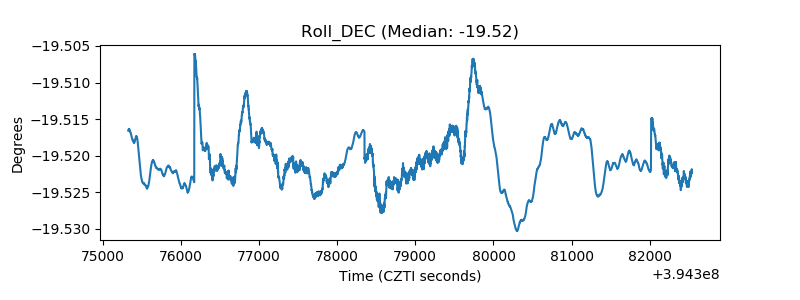

| _Roll_DEC |  |
| _Roll_RA |  |

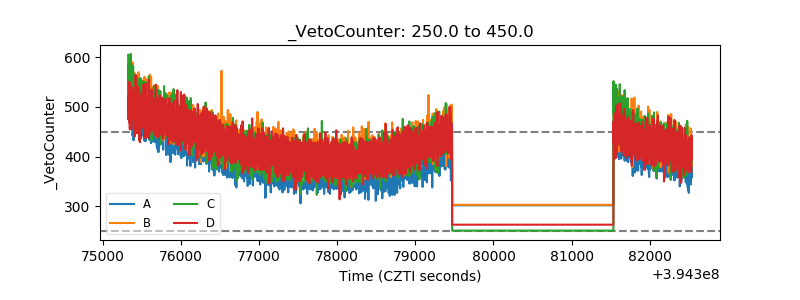

| Veto Counter |  |
