| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A11_089T02_9000005216_36545cztM0_level2.evt | modeM0/AS1A11_089T02_9000005216_36545cztM0_level2_quad_clean.evt |
| Size (bytes) | 445,501,440 | 53,686,080 |
| Size | 424.9 MB | 51.2 MB |
| Events in quadrant A | 2,981,181 | 317,081 |
| Events in quadrant B | 3,372,598 | 317,378 |
| Events in quadrant C | 3,289,978 | 304,452 |
| Events in quadrant D | 3,463,587 | 290,039 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 28 | 0 |
| B | 0 | 28 | 0 |
| C | 0 | 28 | 0 |
| D | 0 | 29 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12368 | 3 |
| B | 0 | 13749 | 2 |
| C | 0 | 13048 | 2 |
| D | 0 | 14248 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 114 | 0 |
| B | 0 | 114 | 0 |
| C | 0 | 114 | 0 |
| D | 0 | 114 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5668 | 44 | 0.776288% |
| B | 5668 | 84 | 1.482004% |
| C | 5668 | 166 | 2.928723% |
| D | 5668 | 173 | 3.052223% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7251 | 5669 | 34 | 34 | 0.47% | 0.60% |  |
| B | 7251 | 5669 | 53 | 53 | 0.73% | 0.93% |  |
| C | 7251 | 5669 | 133 | 133 | 1.83% | 2.35% |  |
| D | 7251 | 5669 | 151 | 151 | 2.08% | 2.66% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 205209 | 1535.96 | 657 | 643 | 133.2 |
| A | 9 | 143 | 133460 | 997.24 | 657 | 643 | 133.2 |
| A | 15 | 223 | 95057 | 708.9 | 657 | 643 | 133.2 |
| B | 5 | 255 | 307844 | 2429.38 | 651 | 634 | 126.5 |
| B | 5 | 172 | 249664 | 1969.3 | 651 | 634 | 126.5 |
| B | 0 | 189 | 104652 | 822.56 | 651 | 634 | 126.5 |
| C | 0 | 10 | 512070 | 3479.51 | 625 | 629 | 147.0 |
| C | 15 | 214 | 239472 | 1624.93 | 625 | 629 | 147.0 |
| C | 14 | 254 | 44062 | 295.49 | 625 | 629 | 147.0 |
| D | 13 | 171 | 199745 | 1295.83 | 627 | 611 | 153.7 |
| D | 2 | 250 | 145877 | 945.29 | 627 | 611 | 153.7 |
| D | 14 | 35 | 118552 | 767.48 | 627 | 611 | 153.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

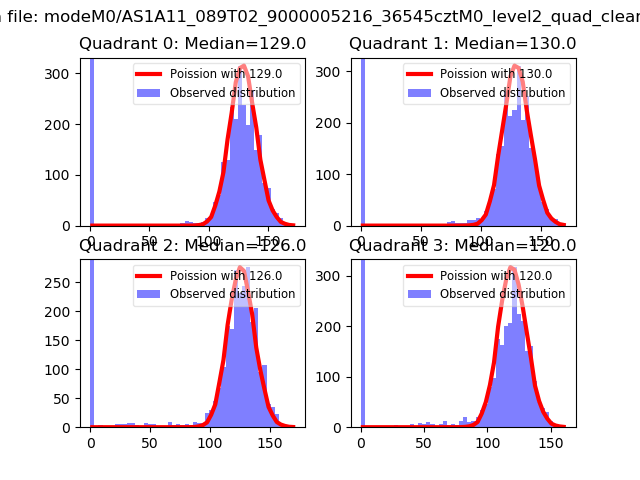

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

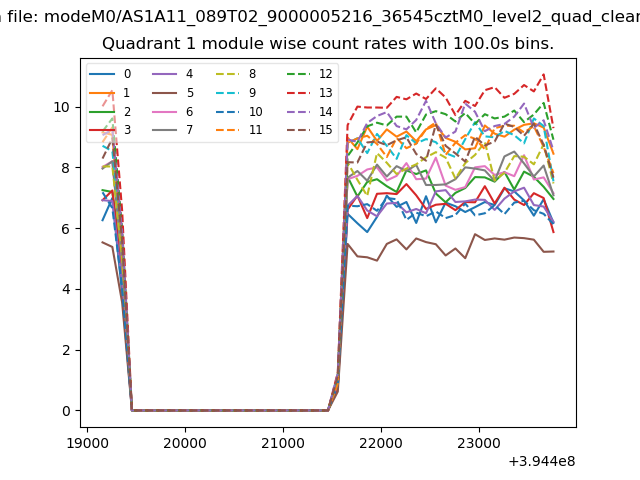

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

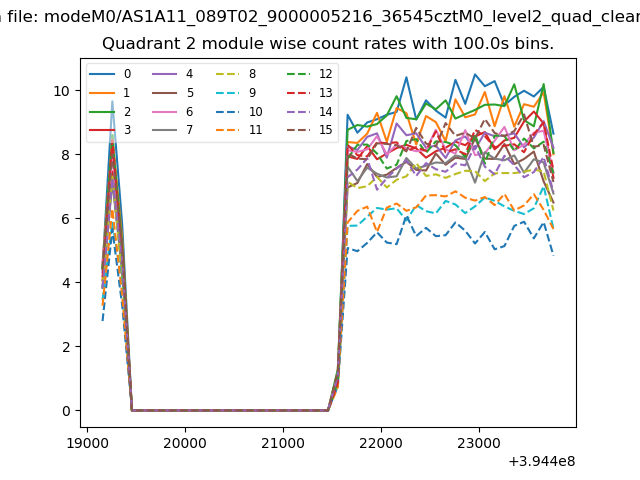

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
