| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A11_089T02_9000005216_36549cztM0_level2.evt | modeM0/AS1A11_089T02_9000005216_36549cztM0_level2_quad_clean.evt |
| Size (bytes) | 496,572,480 | 67,455,360 |
| Size | 473.6 MB | 64.3 MB |
| Events in quadrant A | 2,833,619 | 444,195 |
| Events in quadrant B | 3,407,003 | 444,634 |
| Events in quadrant C | 3,231,773 | 434,386 |
| Events in quadrant D | 5,216,865 | 357,652 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 32 | 0 |
| B | 0 | 32 | 0 |
| C | 0 | 32 | 0 |
| D | 0 | 33 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11369 | 3 |
| B | 0 | 13387 | 2 |
| C | 0 | 12588 | 2 |
| D | 0 | 18785 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 104 | 0 |
| B | 0 | 104 | 0 |
| C | 0 | 104 | 0 |
| D | 0 | 104 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5159 | 16 | 0.310138% |
| B | 5159 | 115 | 2.229114% |
| C | 5159 | 157 | 3.043225% |
| D | 5159 | 828 | 16.049622% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7131 | 5160 | 3 | 3 | 0.04% | 0.06% |  |
| B | 7131 | 5160 | 52 | 52 | 0.73% | 1.01% |  |
| C | 7131 | 5160 | 115 | 115 | 1.61% | 2.23% |  |
| D | 7131 | 5160 | 789 | 789 | 11.06% | 15.29% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 195348 | 1467.74 | 667 | 658 | 132.6 |
| A | 15 | 223 | 50484 | 375.63 | 667 | 658 | 132.6 |
| A | 13 | 254 | 7352 | 50.47 | 667 | 658 | 132.6 |
| B | 5 | 172 | 306085 | 2487.53 | 655 | 640 | 122.8 |
| B | 5 | 255 | 223546 | 1815.33 | 655 | 640 | 122.8 |
| B | 15 | 32 | 117552 | 952.13 | 655 | 640 | 122.8 |
| C | 0 | 10 | 522665 | 3576.57 | 633 | 637 | 146.0 |
| C | 15 | 214 | 223081 | 1524.03 | 633 | 637 | 146.0 |
| C | 10 | 22 | 6707 | 41.59 | 633 | 637 | 146.0 |
| D | 12 | 235 | 2401444 | 16532.18 | 602 | 587 | 145.2 |
| D | 2 | 250 | 150829 | 1034.56 | 602 | 587 | 145.2 |
| D | 2 | 153 | 53554 | 364.73 | 602 | 587 | 145.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

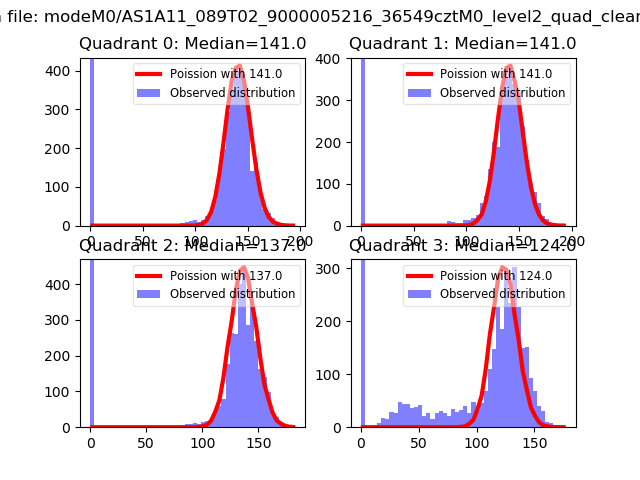

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

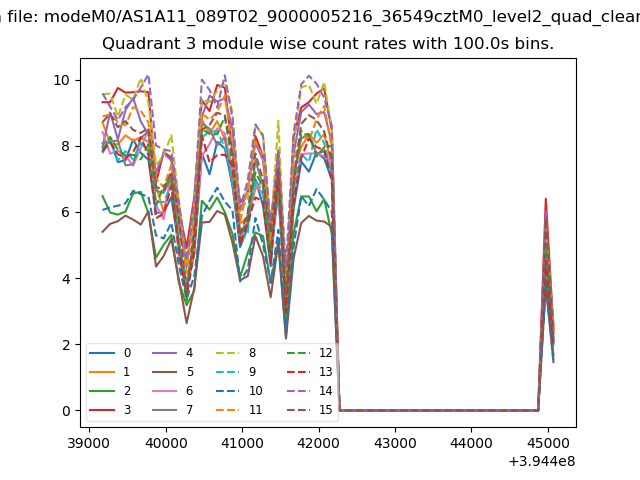

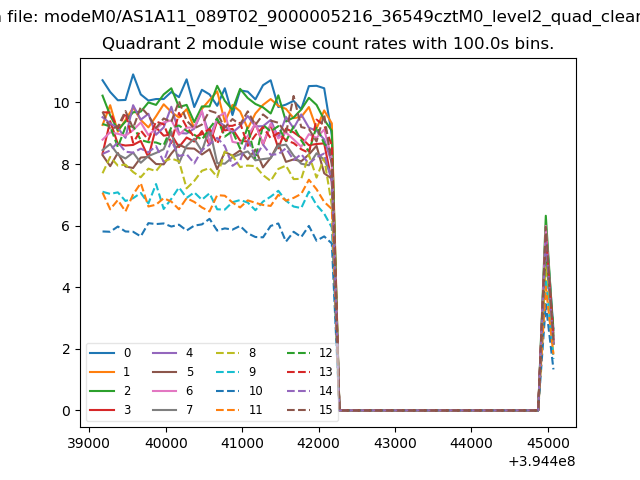

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

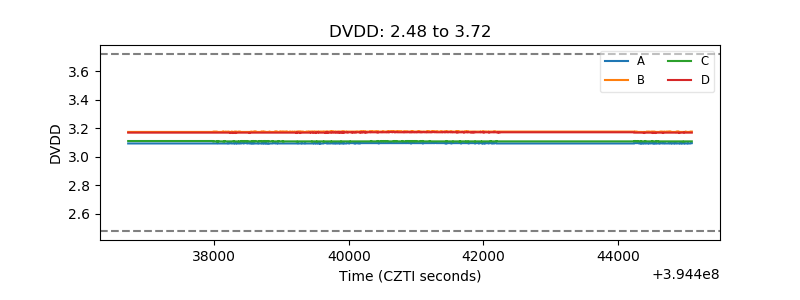

| D_VDD |  |

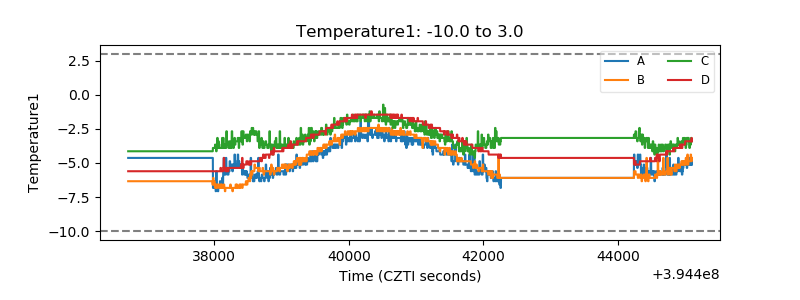

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

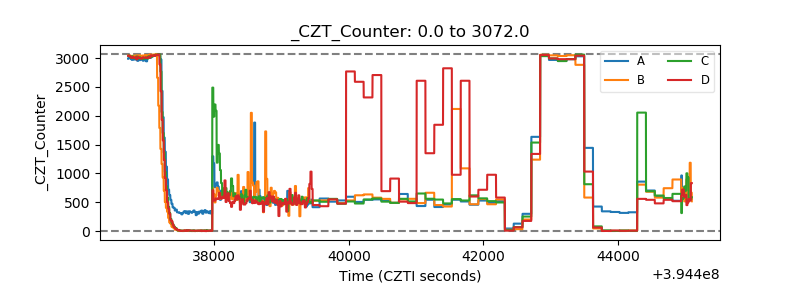

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

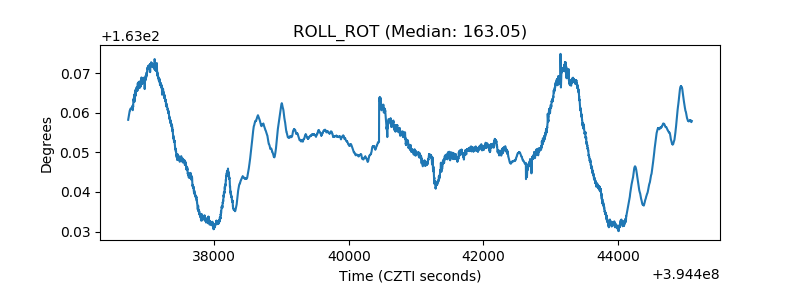

| _ROLL_ROT |  |
| _Roll_DEC |  |

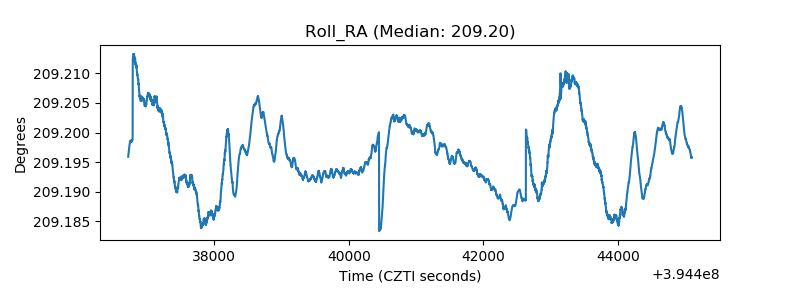

| _Roll_RA |  |
| Veto Counter |  |
