| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A11_089T02_9000005216_36552cztM0_level2.evt | modeM0/AS1A11_089T02_9000005216_36552cztM0_level2_quad_clean.evt |
| Size (bytes) | 417,772,800 | 89,752,320 |
| Size | 398.4 MB | 85.6 MB |
| Events in quadrant A | 2,648,966 | 615,329 |
| Events in quadrant B | 3,116,942 | 603,720 |
| Events in quadrant C | 2,823,444 | 586,908 |
| Events in quadrant D | 3,725,750 | 563,880 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 36 | 0 |
| B | 0 | 36 | 0 |
| C | 0 | 36 | 0 |
| D | 0 | 37 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10842 | 3 |
| B | 0 | 12306 | 2 |
| C | 0 | 11224 | 2 |
| D | 0 | 14685 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 102 | 0 |
| B | 0 | 102 | 0 |
| C | 0 | 102 | 0 |
| D | 0 | 102 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 4964 | 15 | 0.302176% |
| B | 4964 | 139 | 2.800161% |
| C | 4964 | 120 | 2.417405% |
| D | 4964 | 126 | 2.538276% |

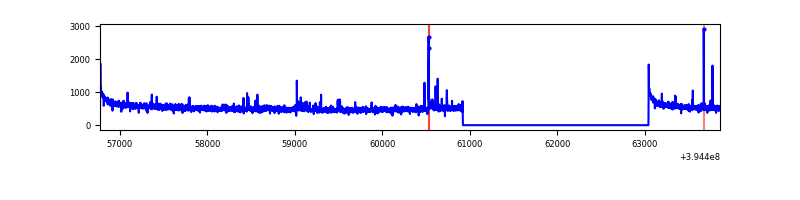

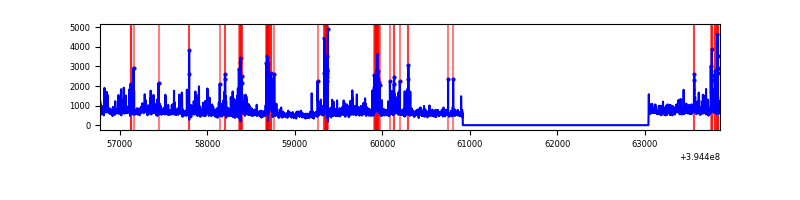

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7088 | 4965 | 3 | 3 | 0.04% | 0.06% |  |
| B | 7088 | 4965 | 88 | 88 | 1.24% | 1.77% |  |
| C | 7088 | 4965 | 70 | 70 | 0.99% | 1.41% |  |
| D | 7088 | 4965 | 97 | 97 | 1.37% | 1.95% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 198606 | 1597.2 | 616 | 604 | 124.0 |
| A | 9 | 143 | 33636 | 266.46 | 616 | 604 | 124.0 |
| A | 15 | 223 | 31666 | 250.56 | 616 | 604 | 124.0 |
| B | 5 | 172 | 496715 | 4343.72 | 596 | 581 | 114.2 |
| B | 5 | 255 | 108259 | 942.74 | 596 | 581 | 114.2 |
| B | 0 | 219 | 50059 | 433.19 | 596 | 581 | 114.2 |
| C | 0 | 10 | 311170 | 2309.31 | 579 | 585 | 134.5 |
| C | 15 | 214 | 214181 | 1588.16 | 579 | 585 | 134.5 |
| C | 10 | 49 | 17930 | 128.97 | 579 | 585 | 134.5 |
| D | 12 | 235 | 697611 | 4878.75 | 587 | 572 | 142.9 |
| D | 2 | 153 | 154358 | 1076.39 | 587 | 572 | 142.9 |
| D | 10 | 199 | 123468 | 860.18 | 587 | 572 | 142.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

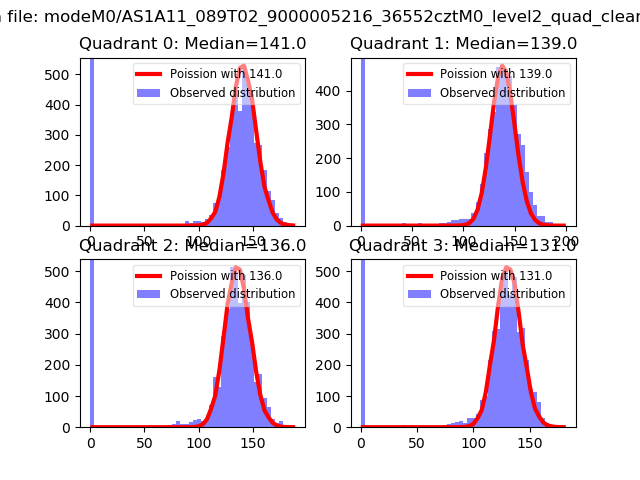

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

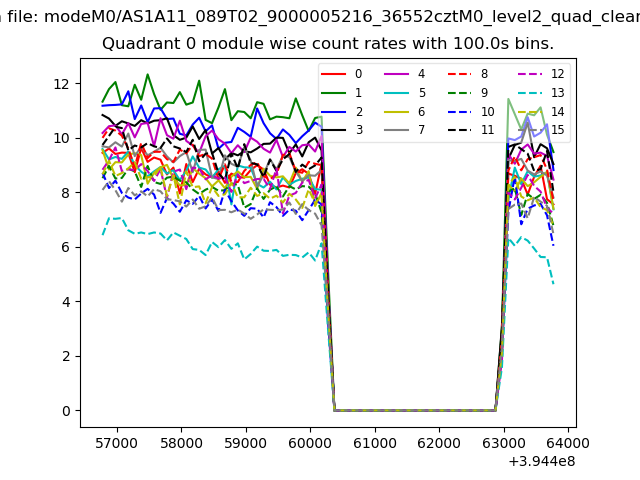

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

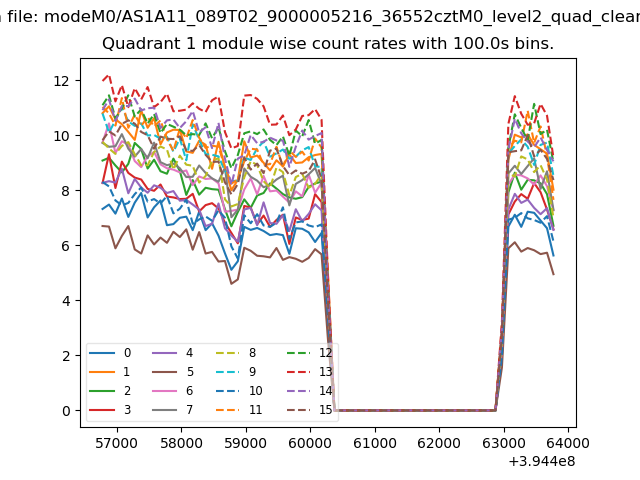

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

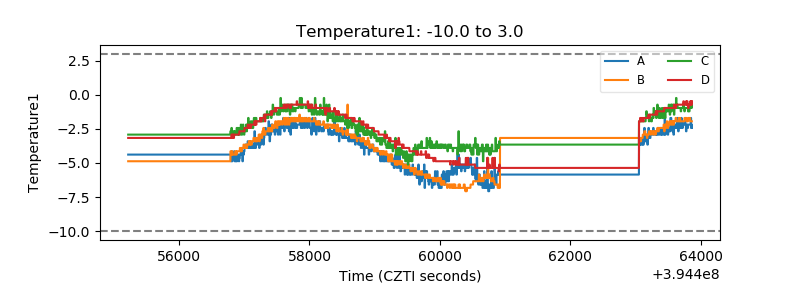

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

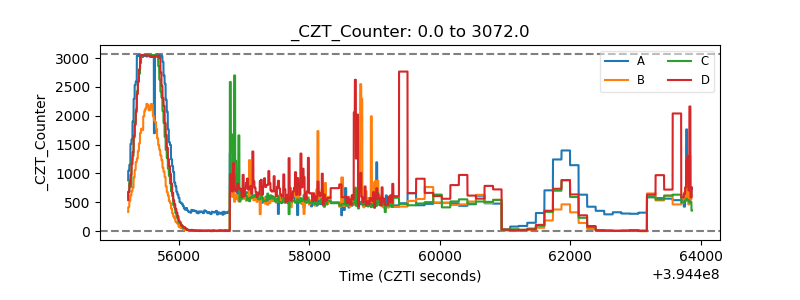

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

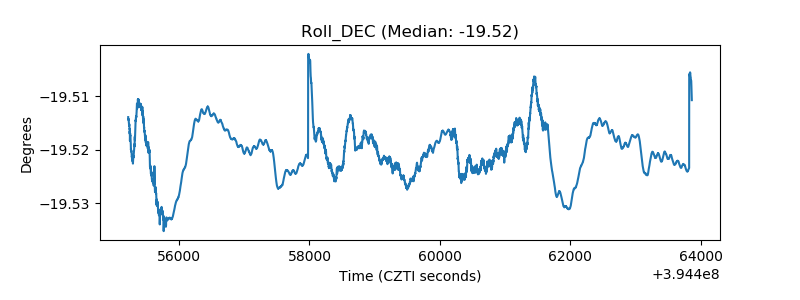

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
