| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A11_089T02_9000005216_36553cztM0_level2.evt | modeM0/AS1A11_089T02_9000005216_36553cztM0_level2_quad_clean.evt |
| Size (bytes) | 174,337,920 | 35,196,480 |
| Size | 166.3 MB | 33.6 MB |
| Events in quadrant A | 958,534 | 243,034 |
| Events in quadrant B | 1,418,455 | 236,561 |
| Events in quadrant C | 1,248,731 | 229,433 |
| Events in quadrant D | 1,529,603 | 224,707 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 4 | 0 |
| B | 0 | 4 | 0 |
| C | 0 | 4 | 0 |
| D | 0 | 5 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 3930 | 1 |
| B | 0 | 5418 | 1 |
| C | 0 | 4810 | 1 |
| D | 0 | 5932 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 36 | 0 |
| B | 0 | 36 | 0 |
| C | 0 | 36 | 0 |
| D | 0 | 36 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 1801 | 7 | 0.388673% |
| B | 1801 | 112 | 6.218767% |
| C | 1801 | 67 | 3.720155% |
| D | 1801 | 46 | 2.554137% |

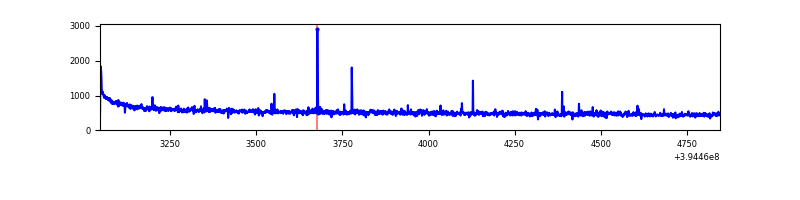

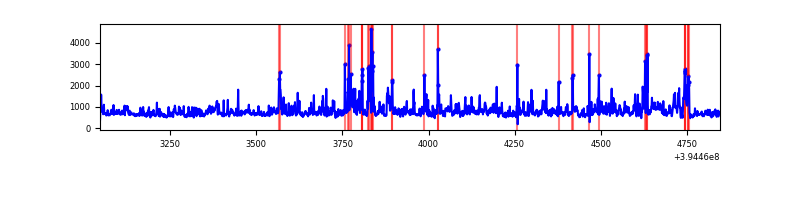

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 1801 | 1801 | 1 | 1 | 0.06% | 0.06% |  |
| B | 1800 | 1800 | 75 | 75 | 4.17% | 4.17% |  |
| C | 1801 | 1801 | 45 | 45 | 2.50% | 2.50% |  |
| D | 1801 | 1801 | 36 | 36 | 2.00% | 2.00% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 88231 | 1903.35 | 219 | 214 | 46.2 |
| A | 9 | 143 | 15268 | 325.54 | 219 | 214 | 46.2 |
| A | 13 | 6 | 4876 | 100.81 | 219 | 214 | 46.2 |
| B | 5 | 172 | 414473 | 9874.32 | 209 | 204 | 42.0 |
| B | 5 | 255 | 64174 | 1524.76 | 209 | 204 | 42.0 |
| B | 0 | 219 | 61132 | 1452.25 | 209 | 204 | 42.0 |
| C | 14 | 254 | 184349 | 3754.48 | 203 | 205 | 49.0 |
| C | 0 | 10 | 174318 | 3549.96 | 203 | 205 | 49.0 |
| C | 15 | 214 | 78946 | 1605.44 | 203 | 205 | 49.0 |
| D | 12 | 235 | 386246 | 7371.71 | 211 | 204 | 52.4 |
| D | 10 | 199 | 109504 | 2087.15 | 211 | 204 | 52.4 |
| D | 7 | 38 | 44811 | 851.8 | 211 | 204 | 52.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

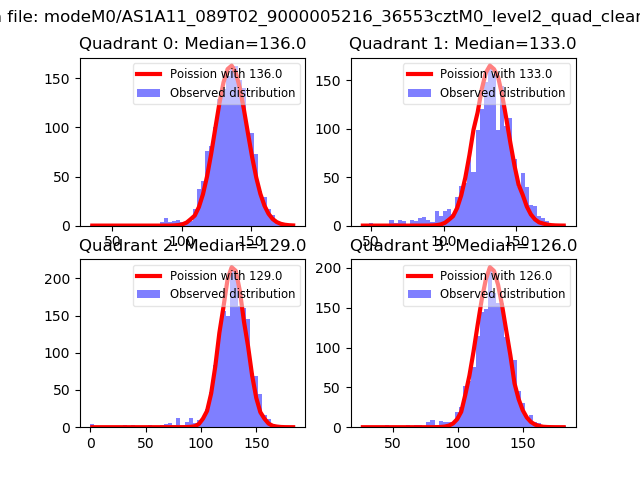

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

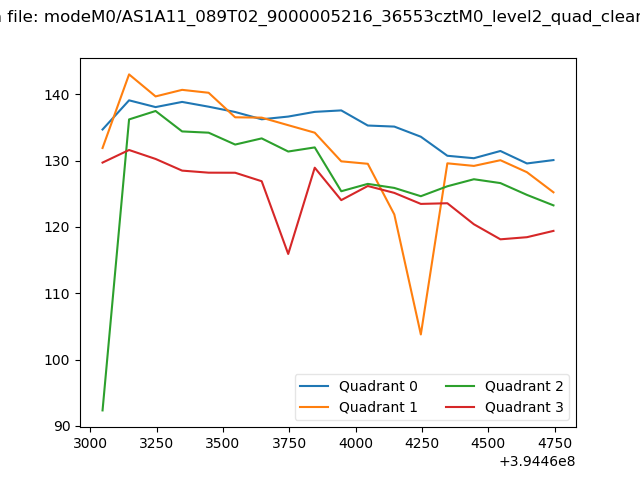

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

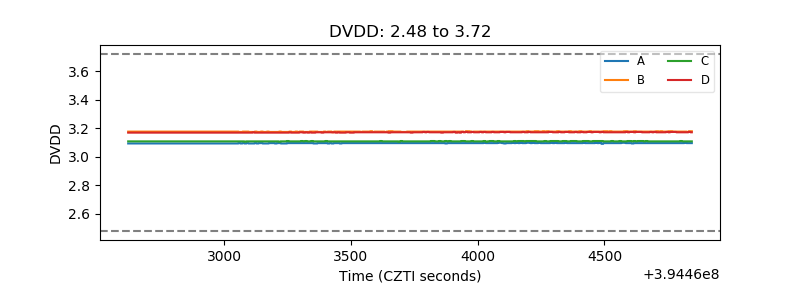

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

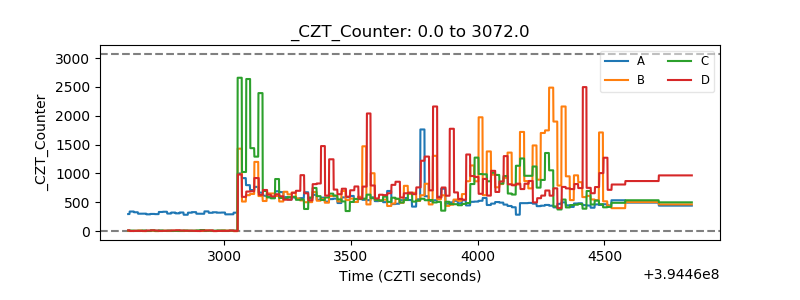

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

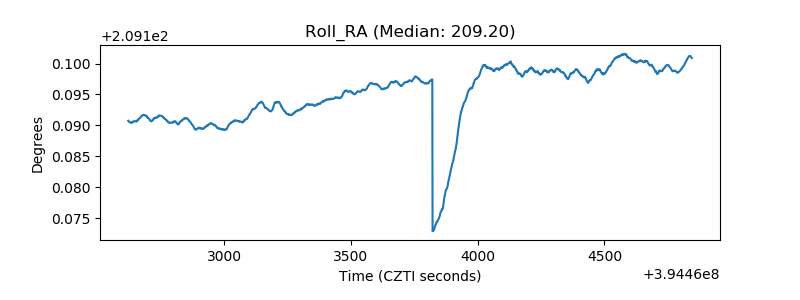

| _Roll_RA |  |
| Veto Counter |  |
