| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A11_049T02_9000005220_36554cztM0_level2.evt | modeM0/AS1A11_049T02_9000005220_36554cztM0_level2_quad_clean.evt |
| Size (bytes) | 169,876,800 | 19,497,600 |
| Size | 162.0 MB | 18.6 MB |
| Events in quadrant A | 1,521,474 | 110,288 |
| Events in quadrant B | 945,802 | 126,127 |
| Events in quadrant C | 1,019,657 | 120,771 |
| Events in quadrant D | 1,550,319 | 117,941 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17 | 0 |
| B | 0 | 17 | 0 |
| C | 0 | 17 | 0 |
| D | 0 | 17 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 5487 | 2 |
| B | 0 | 3703 | 1 |
| C | 0 | 3949 | 1 |
| D | 0 | 5705 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 32 | 0 |
| B | 0 | 32 | 0 |
| C | 0 | 32 | 0 |
| D | 0 | 32 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 1554 | 282 | 18.146718% |
| B | 1554 | 34 | 2.187902% |
| C | 1554 | 68 | 4.375804% |
| D | 1554 | 65 | 4.182754% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 3196 | 1555 | 194 | 194 | 6.07% | 12.48% |  |
| B | 3196 | 1555 | 16 | 16 | 0.50% | 1.03% |  |
| C | 3196 | 1555 | 55 | 55 | 1.72% | 3.54% |  |
| D | 3196 | 1555 | 38 | 38 | 1.19% | 2.44% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 223 | 693053 | 18484.98 | 174 | 171 | 37.5 |
| A | 10 | 83 | 83420 | 2220.95 | 174 | 171 | 37.5 |
| A | 13 | 248 | 66203 | 1761.63 | 174 | 171 | 37.5 |
| B | 0 | 219 | 106568 | 2835.84 | 184 | 180 | 37.5 |
| B | 4 | 171 | 47845 | 1270.54 | 184 | 180 | 37.5 |
| B | 5 | 172 | 19087 | 503.98 | 184 | 180 | 37.5 |
| C | 0 | 10 | 195871 | 4517.82 | 177 | 178 | 43.3 |
| C | 15 | 214 | 67957 | 1564.76 | 177 | 178 | 43.3 |
| C | 14 | 254 | 43119 | 991.35 | 177 | 178 | 43.3 |
| D | 12 | 235 | 701492 | 15317.69 | 180 | 174 | 45.8 |
| D | 13 | 249 | 47567 | 1035.12 | 180 | 174 | 45.8 |
| D | 2 | 137 | 23880 | 517.77 | 180 | 174 | 45.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

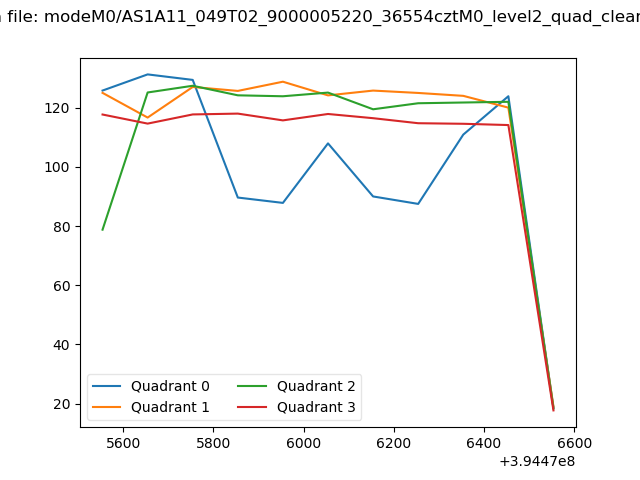

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

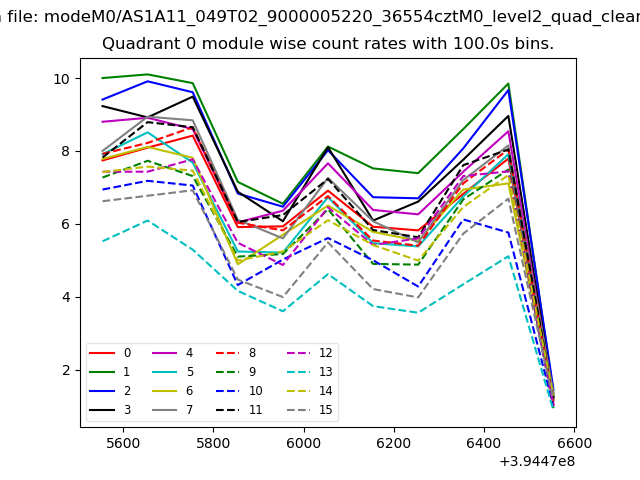

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

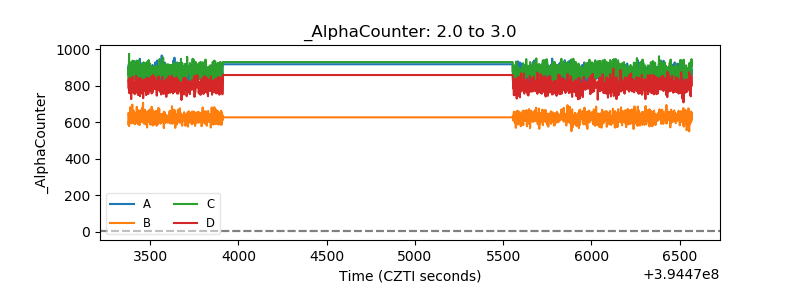

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

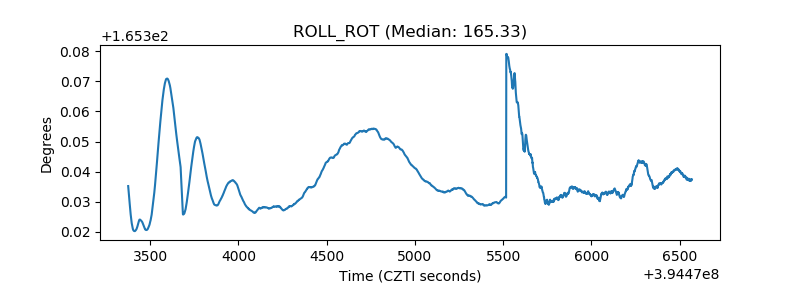

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
