| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A11_049T02_9000005220_36559cztM0_level2.evt | modeM0/AS1A11_049T02_9000005220_36559cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,224,449,280 | 170,334,720 |
| Size | 1.1 GB | 162.4 MB |
| Events in quadrant A | 7,820,656 | 1,055,347 |
| Events in quadrant B | 9,751,435 | 1,032,374 |
| Events in quadrant C | 8,451,553 | 1,021,516 |
| Events in quadrant D | 10,003,984 | 971,089 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 55 | 0 |
| B | 0 | 55 | 0 |
| C | 0 | 55 | 0 |
| D | 0 | 55 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 33181 | 5 |
| B | 0 | 39227 | 4 |
| C | 0 | 34385 | 4 |
| D | 0 | 40648 | 4 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 320 | 0 |
| B | 0 | 320 | 0 |
| C | 0 | 320 | 0 |
| D | 0 | 320 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 15621 | 101 | 0.646566% |
| B | 15621 | 683 | 4.372319% |
| C | 15621 | 276 | 1.766852% |
| D | 15621 | 669 | 4.282696% |

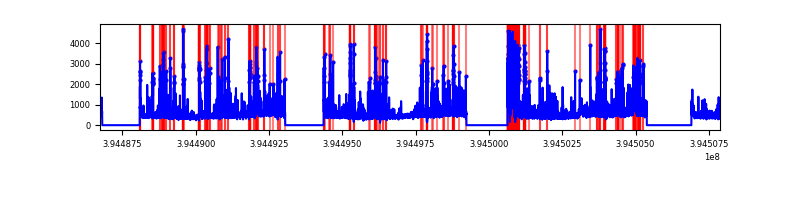

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 21141 | 15625 | 65 | 65 | 0.31% | 0.42% |  |
| B | 21141 | 15625 | 427 | 427 | 2.02% | 2.73% |  |
| C | 21141 | 15625 | 199 | 199 | 0.94% | 1.27% |  |
| D | 21141 | 15625 | 507 | 507 | 2.40% | 3.24% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 485023 | 1339.73 | 1790 | 1753 | 360.7 |
| A | 15 | 223 | 298209 | 821.84 | 1790 | 1753 | 360.7 |
| A | 9 | 143 | 103419 | 281.84 | 1790 | 1753 | 360.7 |
| B | 5 | 172 | 1747906 | 5239.75 | 1748 | 1704 | 333.3 |
| B | 5 | 255 | 501511 | 1499.75 | 1748 | 1704 | 333.3 |
| B | 4 | 171 | 170169 | 505.51 | 1748 | 1704 | 333.3 |
| C | 0 | 10 | 819053 | 2053.44 | 1717 | 1726 | 398.0 |
| C | 15 | 214 | 655921 | 1643.59 | 1717 | 1726 | 398.0 |
| C | 14 | 254 | 106457 | 263.13 | 1717 | 1726 | 398.0 |
| D | 2 | 250 | 1478835 | 3574.2 | 1701 | 1655 | 413.3 |
| D | 13 | 249 | 446988 | 1077.53 | 1701 | 1655 | 413.3 |
| D | 12 | 6 | 227611 | 546.73 | 1701 | 1655 | 413.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

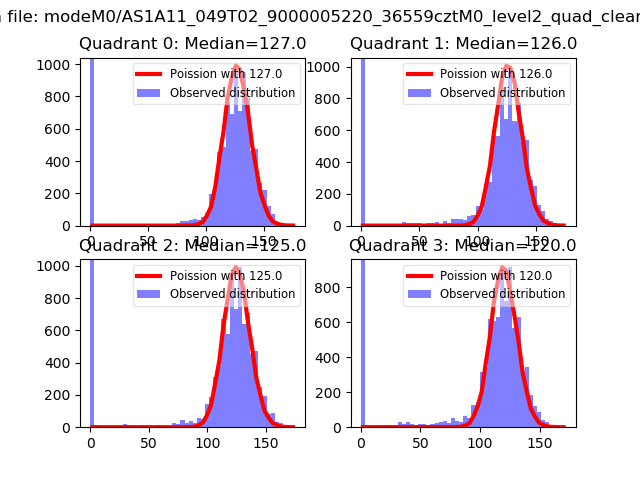

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

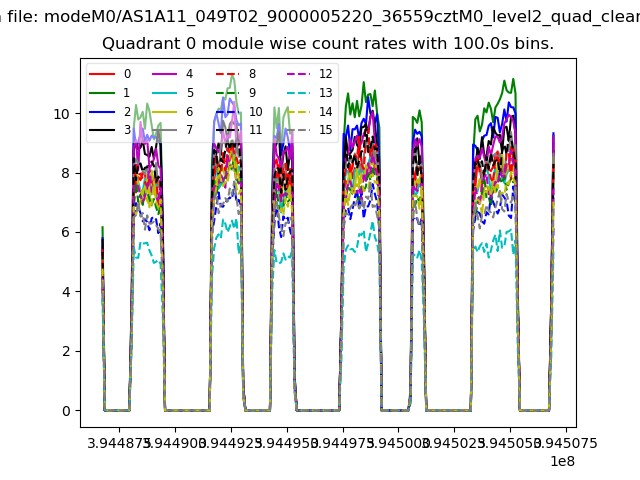

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

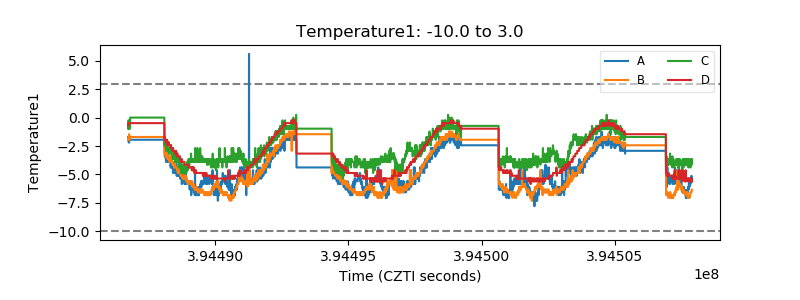

| Temperature 1 |  |

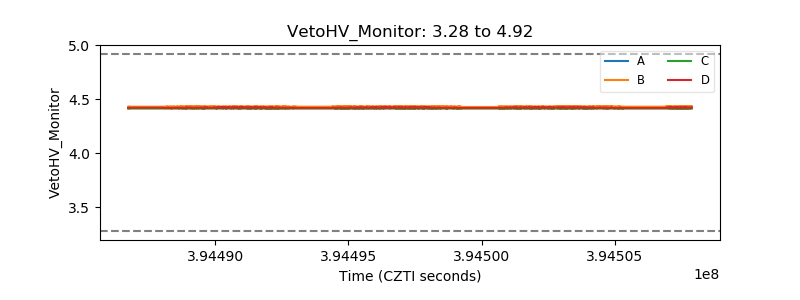

| Veto HV Monitor |  |
| Veto LLD |  |

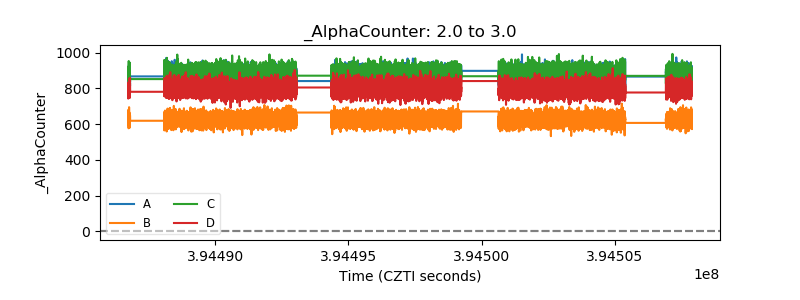

| Alpha Counter |  |
| _CPM_Rate |  |

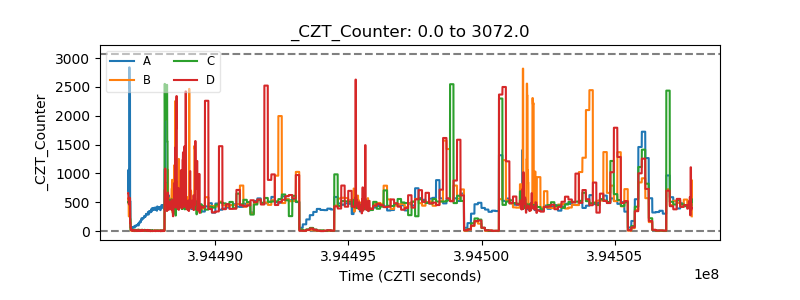

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

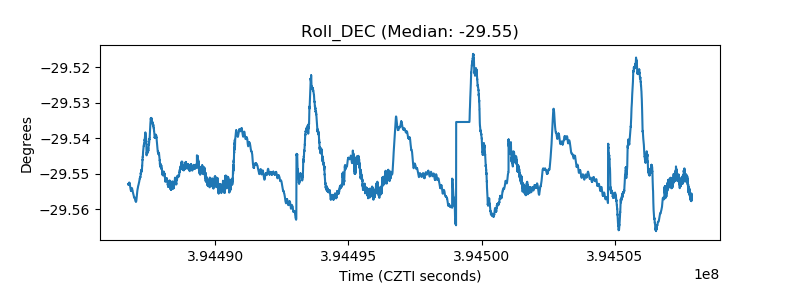

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
