| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A11_049T02_9000005220_36562cztM0_level2.evt | modeM0/AS1A11_049T02_9000005220_36562cztM0_level2_quad_clean.evt |
| Size (bytes) | 447,399,360 | 56,747,520 |
| Size | 426.7 MB | 54.1 MB |
| Events in quadrant A | 2,924,654 | 342,482 |
| Events in quadrant B | 3,498,892 | 335,660 |
| Events in quadrant C | 3,128,158 | 338,182 |
| Events in quadrant D | 3,626,090 | 318,350 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 19 | 0 |
| B | 0 | 19 | 0 |
| C | 0 | 19 | 0 |
| D | 0 | 20 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11989 | 3 |
| B | 0 | 13845 | 2 |
| C | 0 | 12407 | 2 |
| D | 0 | 14484 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 110 | 0 |
| B | 0 | 110 | 0 |
| C | 0 | 110 | 0 |
| D | 0 | 110 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5480 | 28 | 0.510949% |
| B | 5480 | 205 | 3.740876% |
| C | 5480 | 137 | 2.500000% |
| D | 5480 | 99 | 1.806569% |

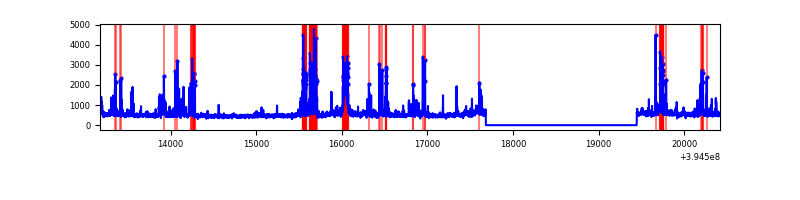

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7243 | 5481 | 18 | 18 | 0.25% | 0.33% |  |
| B | 7243 | 5481 | 157 | 157 | 2.17% | 2.86% |  |
| C | 7243 | 5481 | 97 | 97 | 1.34% | 1.77% |  |
| D | 7243 | 5481 | 62 | 62 | 0.86% | 1.13% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 203879 | 1544.13 | 657 | 645 | 131.6 |
| A | 15 | 223 | 130217 | 984.46 | 657 | 645 | 131.6 |
| A | 9 | 143 | 24473 | 181.04 | 657 | 645 | 131.6 |
| B | 5 | 172 | 429232 | 3513.42 | 642 | 625 | 122.0 |
| B | 5 | 255 | 398651 | 3262.74 | 642 | 625 | 122.0 |
| B | 0 | 189 | 34568 | 278.24 | 642 | 625 | 122.0 |
| C | 0 | 10 | 407807 | 2811.2 | 628 | 633 | 144.8 |
| C | 15 | 214 | 235476 | 1621.4 | 628 | 633 | 144.8 |
| C | 14 | 254 | 30119 | 203.58 | 628 | 633 | 144.8 |
| D | 1 | 20 | 570328 | 3710.25 | 632 | 614 | 153.6 |
| D | 2 | 250 | 198121 | 1286.26 | 632 | 614 | 153.6 |
| D | 2 | 153 | 87762 | 567.55 | 632 | 614 | 153.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

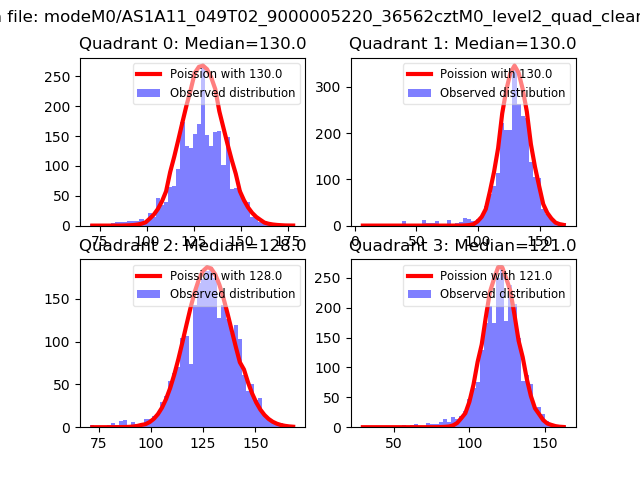

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

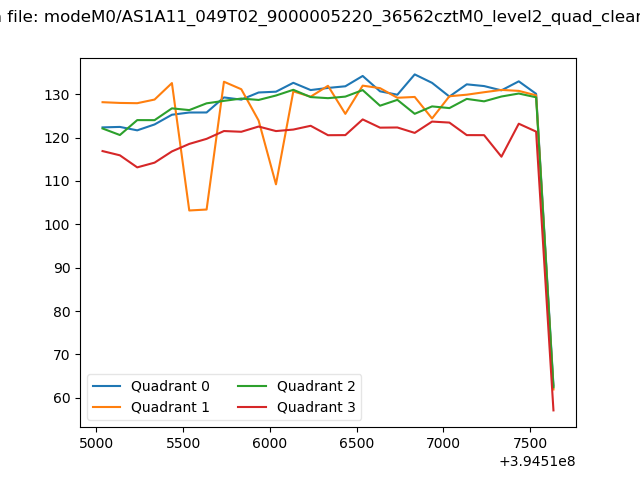

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

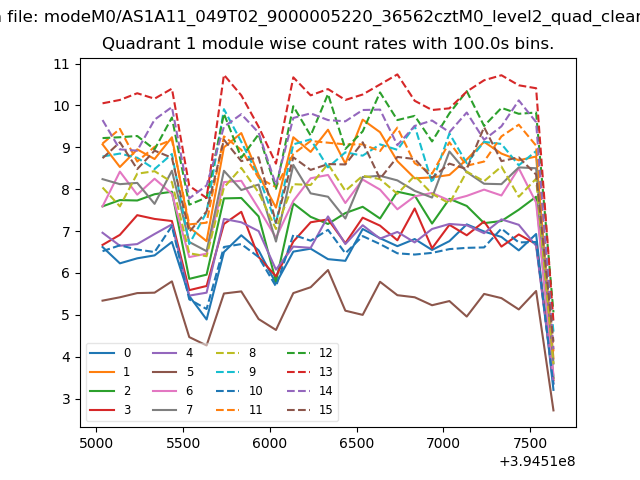

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

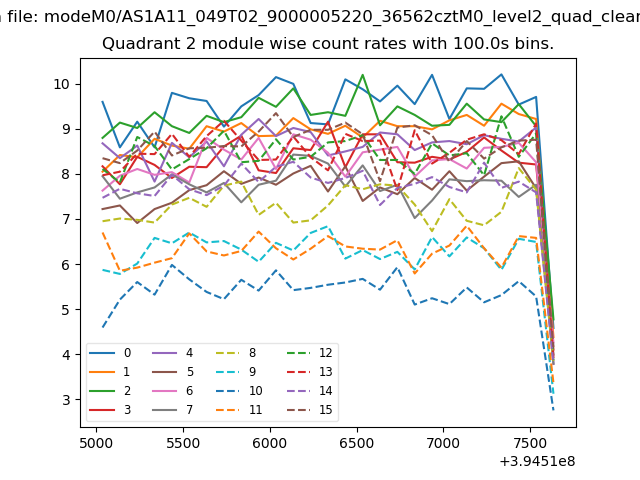

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

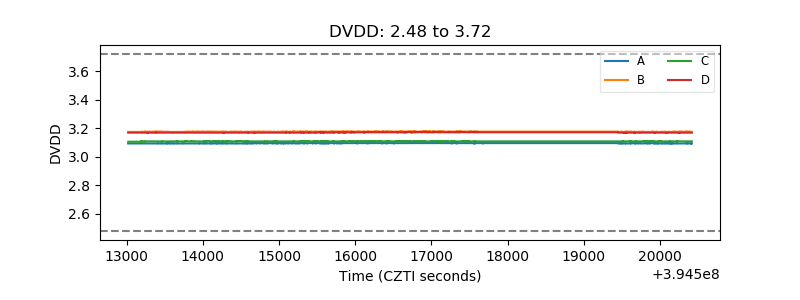

| D_VDD |  |

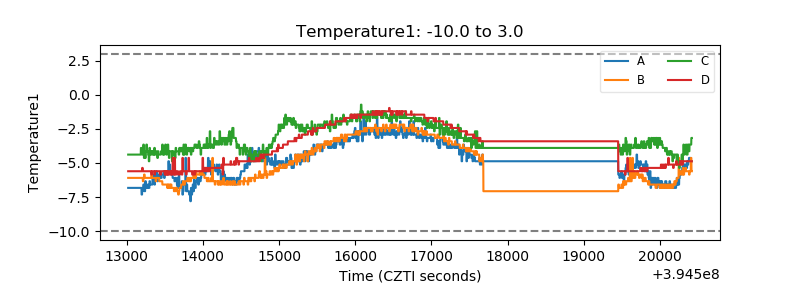

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

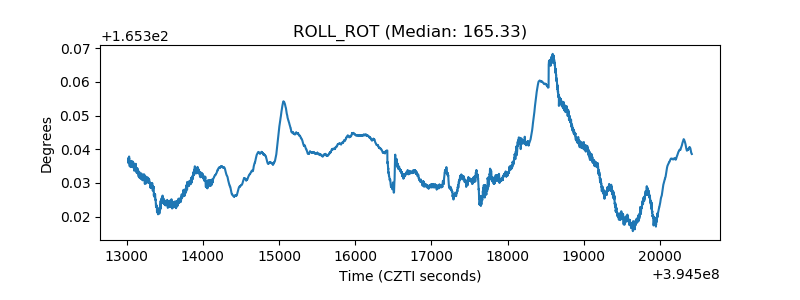

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
