| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A11_097T17_9000005222_36568cztM0_level2.evt | modeM0/AS1A11_097T17_9000005222_36568cztM0_level2_quad_clean.evt |
| Size (bytes) | 422,231,040 | 78,131,520 |
| Size | 402.7 MB | 74.5 MB |
| Events in quadrant A | 2,650,899 | 510,506 |
| Events in quadrant B | 3,045,097 | 505,658 |
| Events in quadrant C | 3,032,550 | 497,607 |
| Events in quadrant D | 3,702,248 | 484,574 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11214 | 3 |
| B | 0 | 12274 | 2 |
| C | 0 | 12125 | 2 |
| D | 0 | 14538 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 21 | 0 |
| B | 0 | 21 | 0 |
| C | 0 | 21 | 0 |
| D | 0 | 22 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 108 | 0 |
| B | 0 | 108 | 0 |
| C | 0 | 108 | 0 |
| D | 0 | 108 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5245 | 28 | 0.533842% |
| B | 5245 | 55 | 1.048618% |
| C | 5245 | 169 | 3.222116% |
| D | 5245 | 194 | 3.698761% |

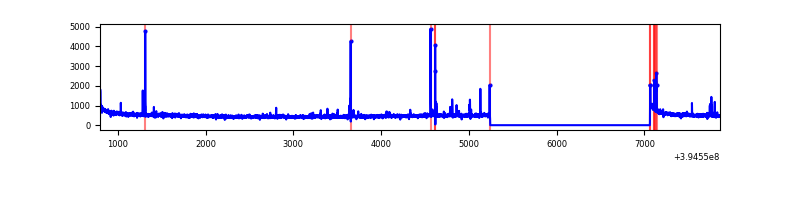

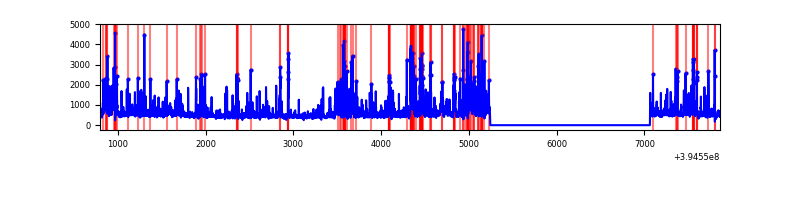

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7067 | 5246 | 13 | 13 | 0.18% | 0.25% |  |
| B | 7067 | 5246 | 36 | 36 | 0.51% | 0.69% |  |
| C | 7067 | 5246 | 114 | 114 | 1.61% | 2.17% |  |
| D | 7067 | 5246 | 152 | 152 | 2.15% | 2.90% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 207649 | 1698.33 | 604 | 592 | 121.9 |
| A | 15 | 223 | 67427 | 548.2 | 604 | 592 | 121.9 |
| A | 9 | 143 | 29256 | 235.11 | 604 | 592 | 121.9 |
| B | 5 | 172 | 268973 | 2350.25 | 598 | 584 | 114.2 |
| B | 0 | 229 | 117798 | 1026.43 | 598 | 584 | 114.2 |
| B | 5 | 255 | 103997 | 905.57 | 598 | 584 | 114.2 |
| C | 0 | 10 | 457546 | 3367.42 | 583 | 586 | 135.7 |
| C | 15 | 214 | 221216 | 1625.86 | 583 | 586 | 135.7 |
| C | 14 | 254 | 79312 | 580.15 | 583 | 586 | 135.7 |
| D | 12 | 16 | 399541 | 2778.5 | 589 | 574 | 143.6 |
| D | 2 | 250 | 302860 | 2105.19 | 589 | 574 | 143.6 |
| D | 10 | 199 | 138550 | 960.9 | 589 | 574 | 143.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

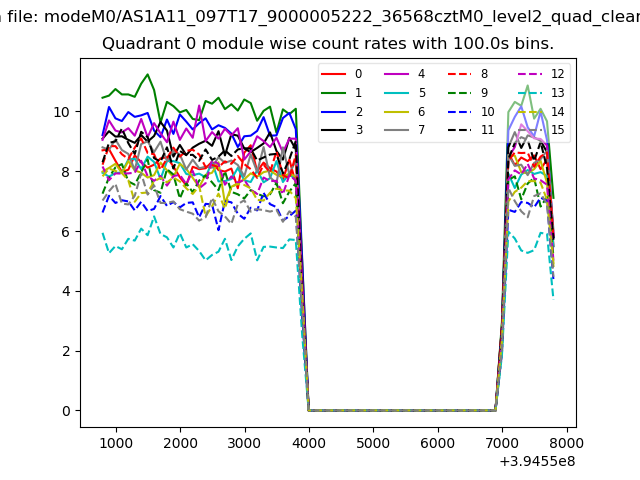

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

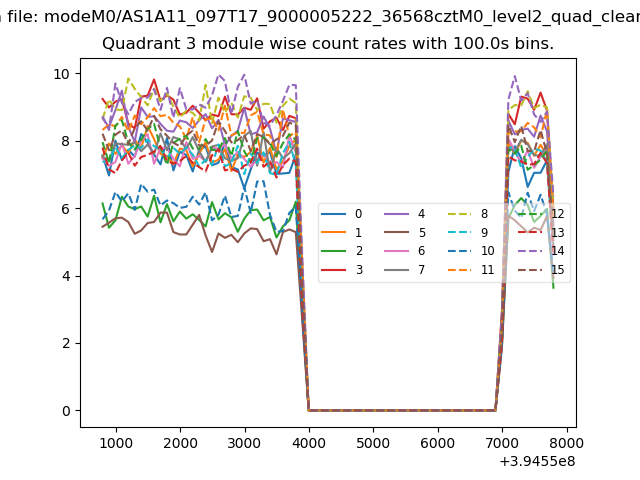

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

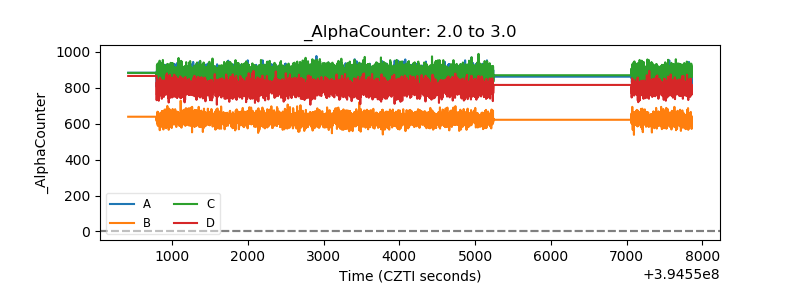

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

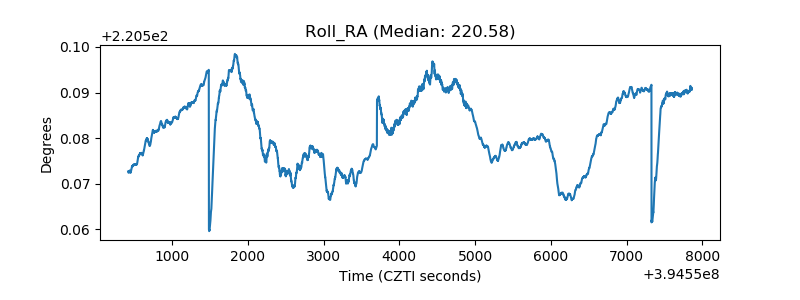

| _Roll_RA |  |
| Veto Counter |  |
