| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A11_097T24_9000005224_36585cztM0_level2.evt | modeM0/AS1A11_097T24_9000005224_36585cztM0_level2_quad_clean.evt |
| Size (bytes) | 537,076,800 | 87,744,960 |
| Size | 512.2 MB | 83.7 MB |
| Events in quadrant A | 3,263,035 | 574,971 |
| Events in quadrant B | 3,162,094 | 579,035 |
| Events in quadrant C | 4,928,777 | 532,886 |
| Events in quadrant D | 4,483,520 | 529,531 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13516 | 3 |
| B | 0 | 13383 | 5 |
| C | 0 | 18530 | 2 |
| D | 0 | 17701 | 5 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 27 | 0 |
| B | 0 | 27 | 0 |
| C | 0 | 27 | 0 |
| D | 0 | 27 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6317 | 19 | 0.300776% |
| B | 6315 | 44 | 0.696754% |
| C | 6317 | 449 | 7.107804% |
| D | 6316 | 243 | 3.847372% |

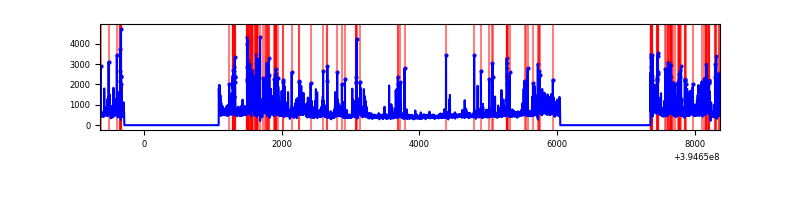

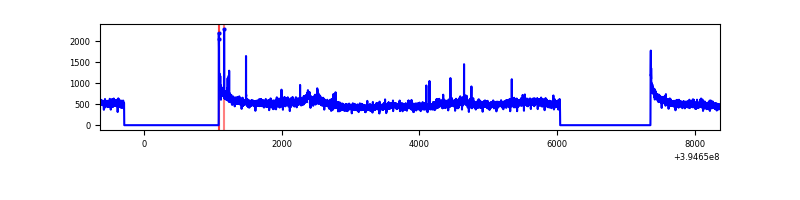

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 9003 | 6319 | 3 | 3 | 0.03% | 0.05% |  |
| B | 9003 | 6318 | 23 | 23 | 0.26% | 0.36% |  |
| C | 9003 | 6319 | 395 | 395 | 4.39% | 6.25% |  |
| D | 9003 | 6319 | 195 | 195 | 2.17% | 3.09% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 215810 | 1439.1 | 741 | 727 | 149.5 |
| A | 15 | 223 | 166355 | 1108.2 | 741 | 727 | 149.5 |
| A | 13 | 254 | 10298 | 64.04 | 741 | 727 | 149.5 |
| B | 4 | 171 | 109005 | 764.39 | 732 | 714 | 141.7 |
| B | 5 | 255 | 38382 | 265.88 | 732 | 714 | 141.7 |
| B | 0 | 213 | 37105 | 256.87 | 732 | 714 | 141.7 |
| C | 14 | 254 | 1284425 | 7928.91 | 694 | 702 | 161.9 |
| C | 0 | 10 | 413403 | 2549.05 | 694 | 702 | 161.9 |
| C | 15 | 214 | 263560 | 1623.54 | 694 | 702 | 161.9 |
| D | 2 | 250 | 388034 | 2222.62 | 709 | 690 | 174.3 |
| D | 12 | 235 | 387471 | 2219.39 | 709 | 690 | 174.3 |
| D | 12 | 16 | 196877 | 1125.74 | 709 | 690 | 174.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

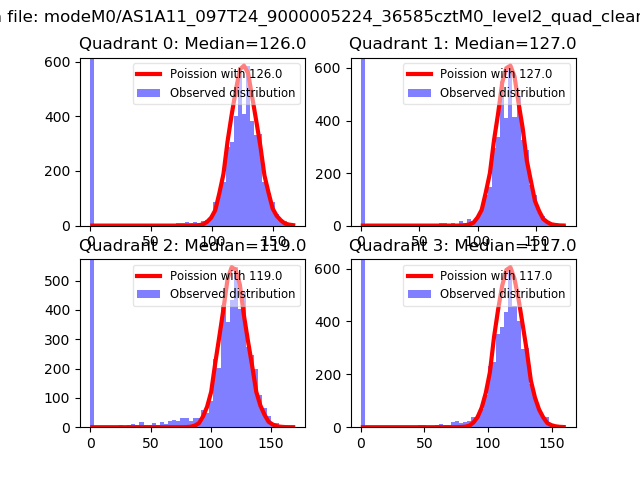

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

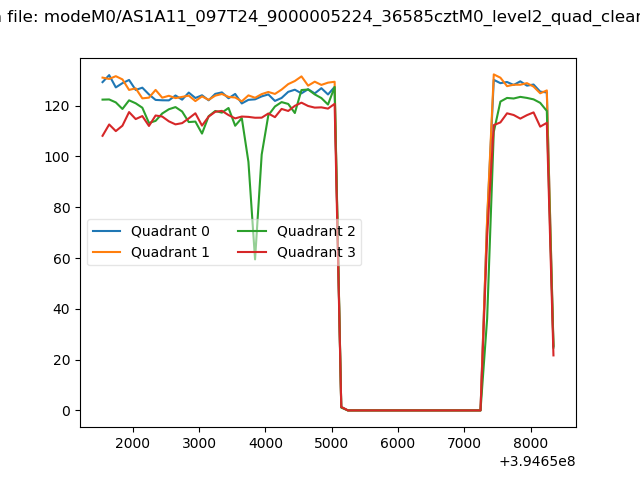

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

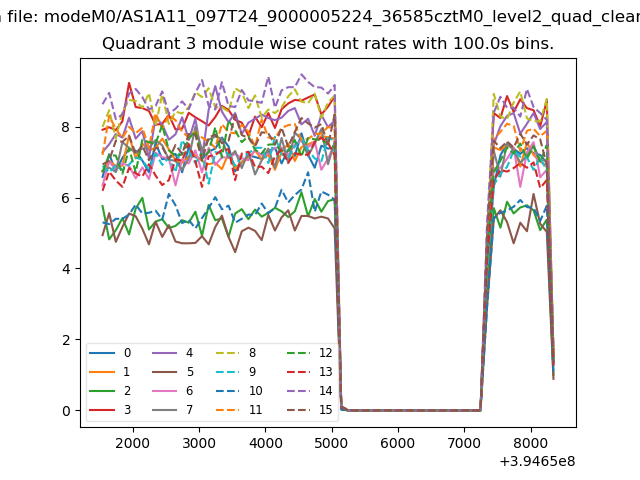

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

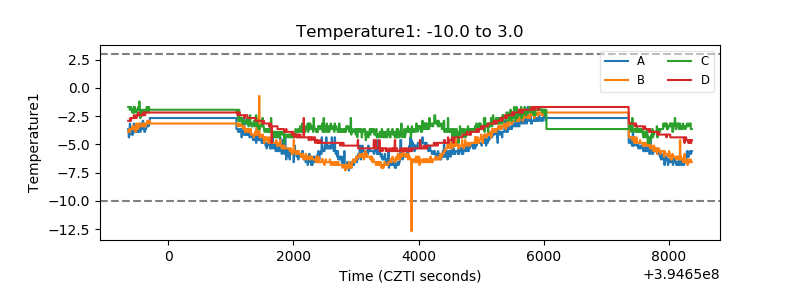

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

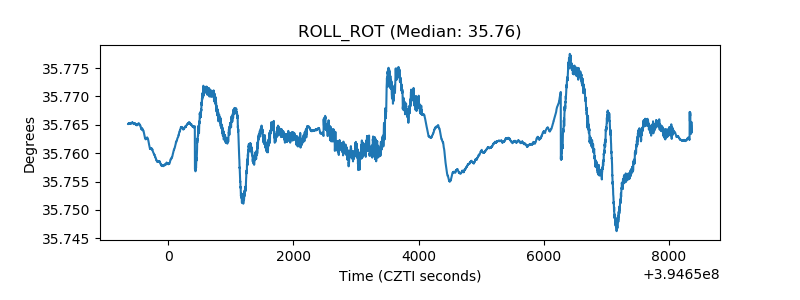

| _ROLL_ROT |  |

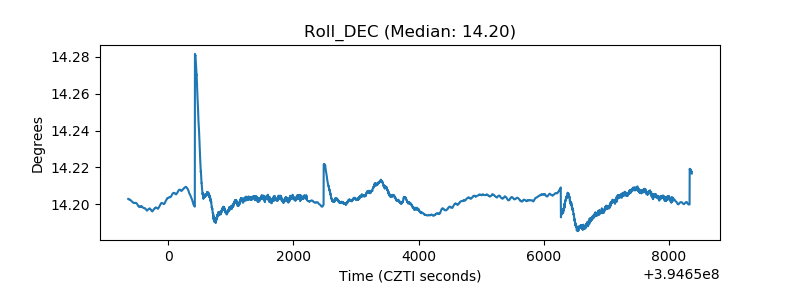

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
