| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A11_049T03_9000005228_36629cztM0_level2.evt | modeM0/AS1A11_049T03_9000005228_36629cztM0_level2_quad_clean.evt |
| Size (bytes) | 954,371,520 | 67,219,200 |
| Size | 910.2 MB | 64.1 MB |
| Events in quadrant A | 3,124,307 | 484,469 |
| Events in quadrant B | 11,015,017 | 322,375 |
| Events in quadrant C | 3,468,685 | 465,756 |
| Events in quadrant D | 10,888,368 | 338,589 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 124 | 0 |
| B | 0 | 124 | 0 |
| C | 0 | 124 | 0 |
| D | 0 | 124 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15 | 0 |
| B | 0 | 15 | 0 |
| C | 0 | 15 | 0 |
| D | 0 | 16 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13172 | 3 |
| B | 0 | 36907 | 2 |
| C | 0 | 14078 | 2 |
| D | 0 | 36499 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6038 | 21 | 0.347797% |
| B | 6038 | 3949 | 65.402451% |
| C | 6038 | 125 | 2.070222% |
| D | 6038 | 2667 | 44.170255% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7351 | 6039 | 13 | 13 | 0.18% | 0.22% |  |
| B | 7351 | 6039 | 2484 | 2484 | 33.79% | 41.13% |  |
| C | 7351 | 6039 | 93 | 93 | 1.27% | 1.54% |  |
| D | 7351 | 6039 | 2475 | 2475 | 33.67% | 40.98% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 239788 | 1684.66 | 699 | 684 | 141.9 |
| A | 15 | 223 | 108731 | 761.27 | 699 | 684 | 141.9 |
| A | 9 | 143 | 29629 | 203.94 | 699 | 684 | 141.9 |
| B | 5 | 200 | 8630926 | 90384.03 | 490 | 478 | 95.5 |
| B | 5 | 255 | 163607 | 1708.4 | 490 | 478 | 95.5 |
| B | 0 | 219 | 70599 | 734.36 | 490 | 478 | 95.5 |
| C | 0 | 10 | 332490 | 2110.28 | 667 | 673 | 157.2 |
| C | 14 | 254 | 266229 | 1688.88 | 667 | 673 | 157.2 |
| C | 15 | 214 | 254429 | 1613.83 | 667 | 673 | 157.2 |
| D | 12 | 235 | 5171145 | 36863.58 | 565 | 550 | 140.3 |
| D | 2 | 250 | 3023513 | 21552.11 | 565 | 550 | 140.3 |
| D | 2 | 153 | 169167 | 1202.15 | 565 | 550 | 140.3 |

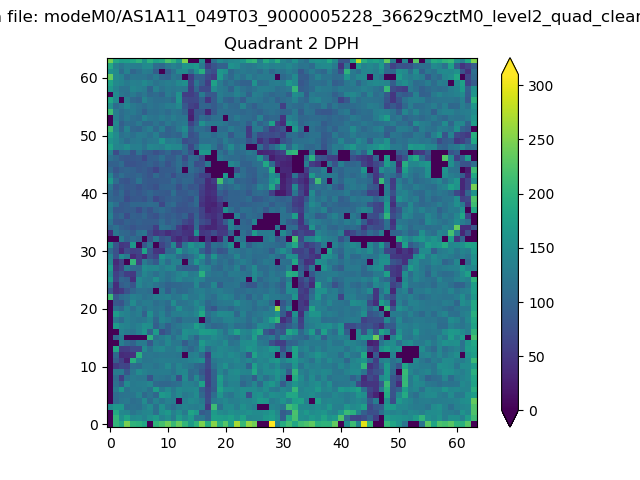

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

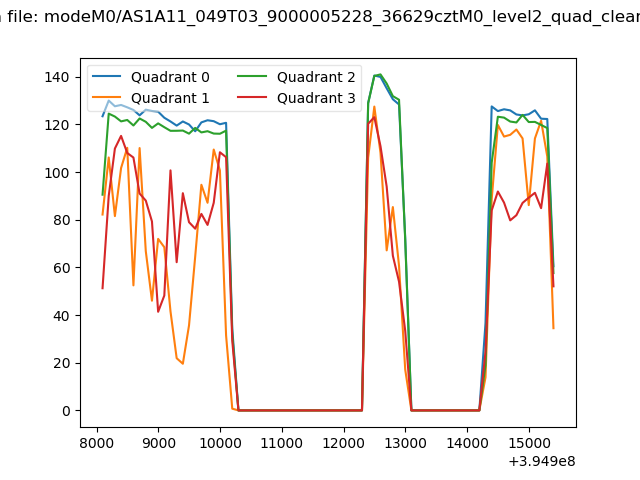

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

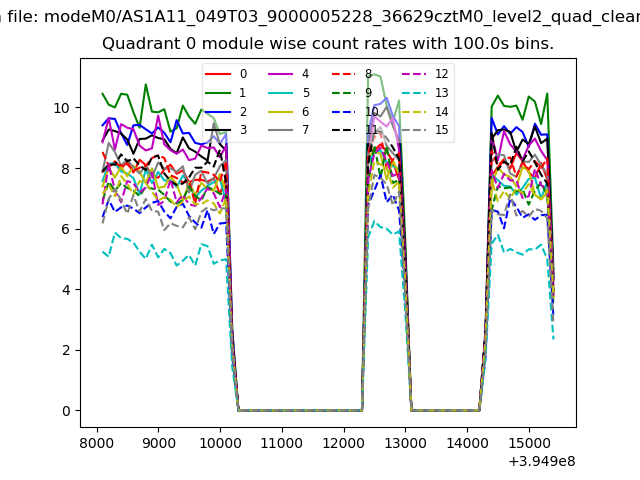

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

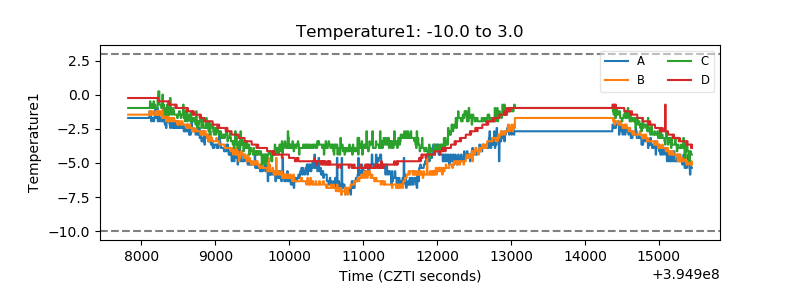

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

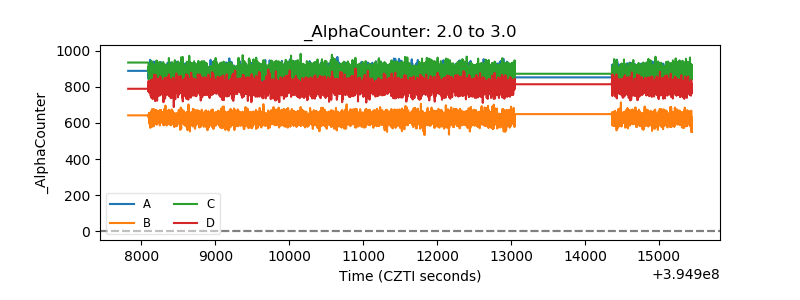

| Alpha Counter |  |

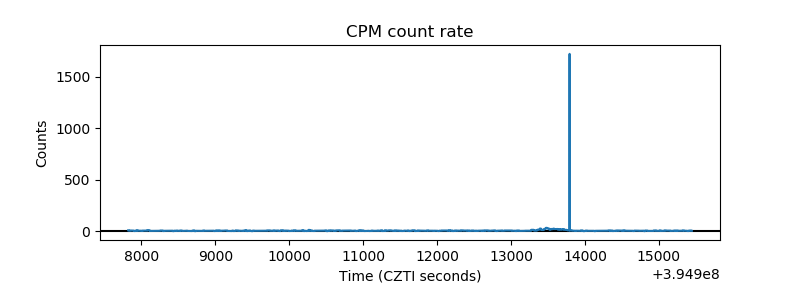

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

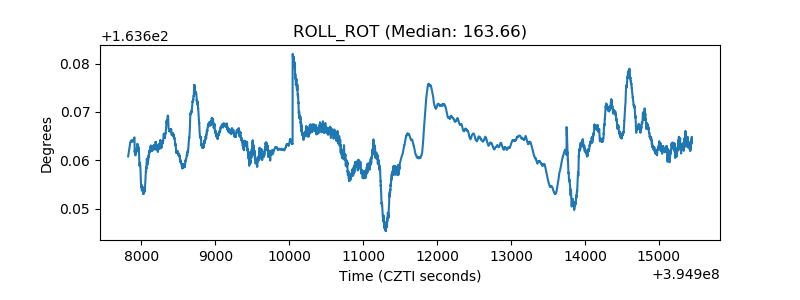

| _ROLL_ROT |  |
| _Roll_DEC |  |

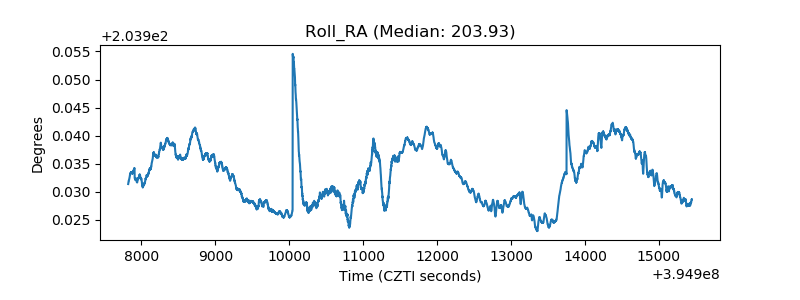

| _Roll_RA |  |
| Veto Counter |  |
