| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T05_041T01_9000005234_36693cztM0_level2.evt | modeM0/AS1T05_041T01_9000005234_36693cztM0_level2_quad_clean.evt |
| Size (bytes) | 434,283,840 | 107,683,200 |
| Size | 414.2 MB | 102.7 MB |
| Events in quadrant A | 2,699,769 | 727,519 |
| Events in quadrant B | 2,972,293 | 737,878 |
| Events in quadrant C | 3,626,356 | 725,691 |
| Events in quadrant D | 3,481,371 | 686,348 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 29 | 0 |
| B | 0 | 29 | 0 |
| C | 0 | 29 | 0 |
| D | 0 | 30 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11467 | 3 |
| B | 0 | 12337 | 2 |
| C | 0 | 14052 | 2 |
| D | 0 | 14041 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 112 | 0 |
| B | 0 | 112 | 0 |
| C | 0 | 112 | 0 |
| D | 0 | 112 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5483 | 10 | 0.182382% |
| B | 5483 | 87 | 1.586723% |
| C | 5483 | 167 | 3.045778% |
| D | 5483 | 202 | 3.684115% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7336 | 5484 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7336 | 5484 | 55 | 55 | 0.75% | 1.00% |  |
| C | 7336 | 5484 | 137 | 137 | 1.87% | 2.50% |  |
| D | 7336 | 5484 | 182 | 182 | 2.48% | 3.32% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 208219 | 1621.14 | 638 | 626 | 128.1 |
| A | 9 | 143 | 15319 | 114.74 | 638 | 626 | 128.1 |
| A | 13 | 6 | 10222 | 74.94 | 638 | 626 | 128.1 |
| B | 5 | 255 | 248189 | 2047.37 | 635 | 618 | 120.9 |
| B | 0 | 189 | 88027 | 722.86 | 635 | 618 | 120.9 |
| B | 4 | 171 | 55603 | 454.72 | 635 | 618 | 120.9 |
| C | 0 | 10 | 401353 | 2755.82 | 630 | 634 | 145.4 |
| C | 0 | 207 | 286410 | 1965.34 | 630 | 634 | 145.4 |
| C | 15 | 214 | 247918 | 1700.62 | 630 | 634 | 145.4 |
| D | 13 | 171 | 442052 | 2944.25 | 621 | 606 | 149.9 |
| D | 13 | 249 | 160007 | 1063.13 | 621 | 606 | 149.9 |
| D | 12 | 233 | 131770 | 874.81 | 621 | 606 | 149.9 |

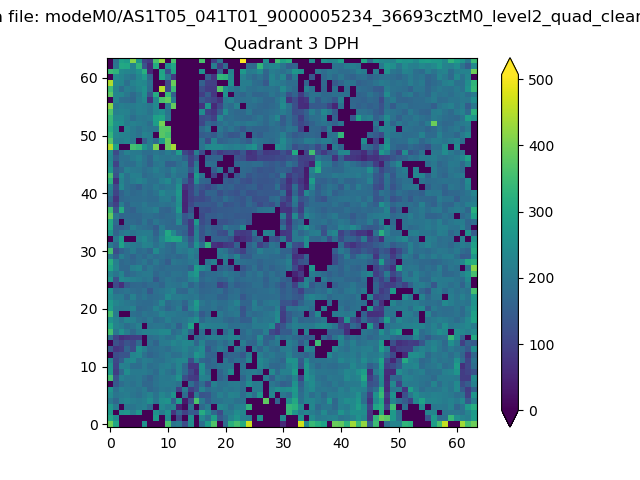

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

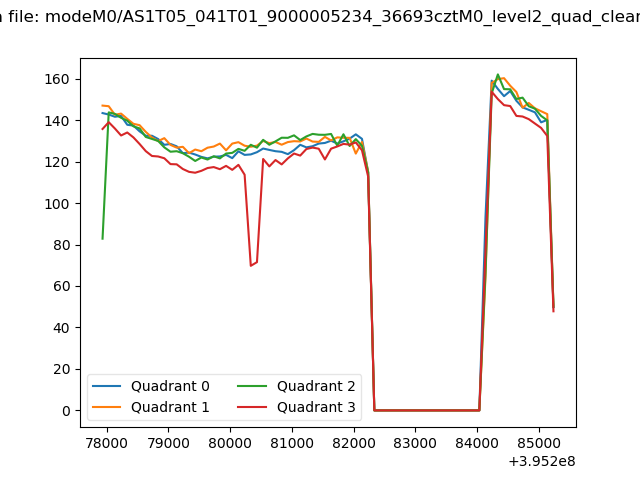

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

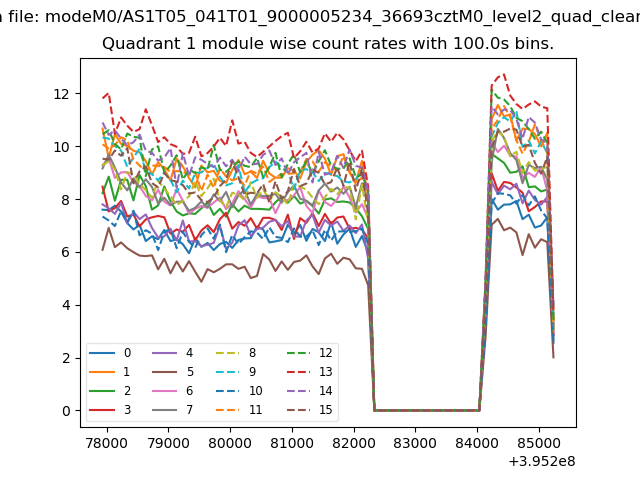

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

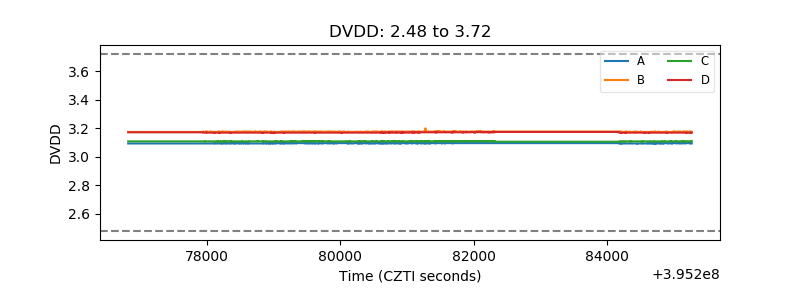

| D_VDD |  |

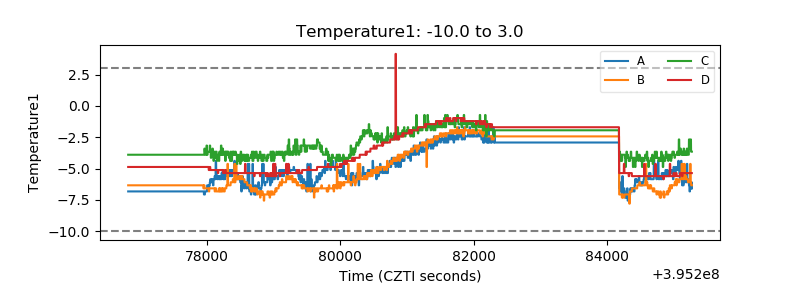

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

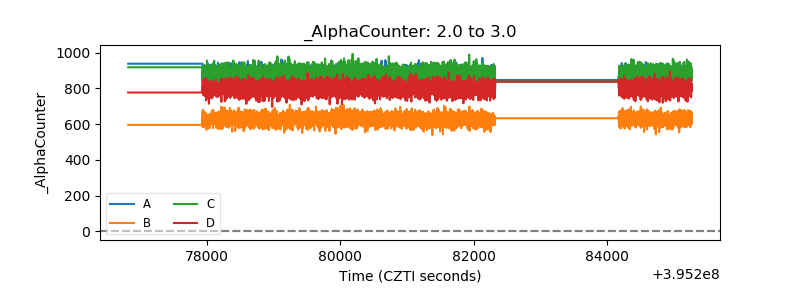

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

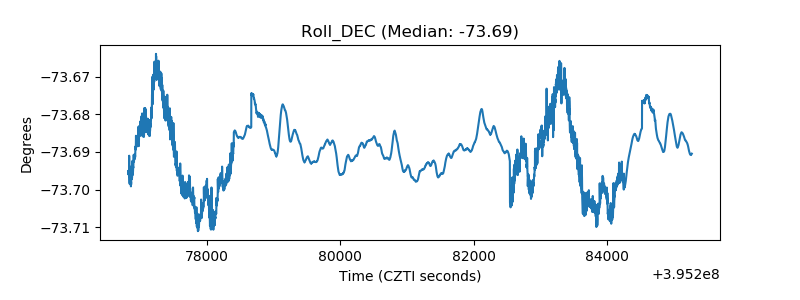

| _Roll_DEC |  |

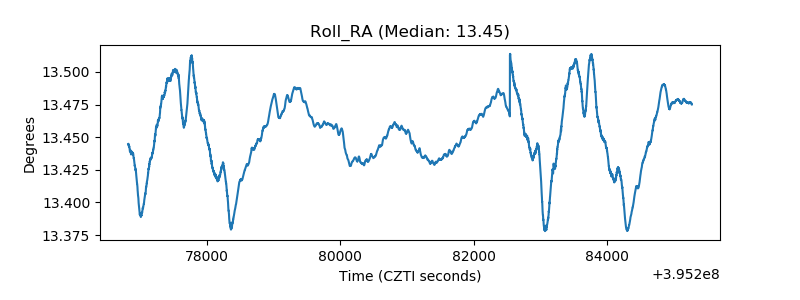

| _Roll_RA |  |
| Veto Counter |  |
