| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C07_001T09_9000005236_36698cztM0_level2.evt | modeM0/AS1C07_001T09_9000005236_36698cztM0_level2_quad_clean.evt |
| Size (bytes) | 405,878,400 | 95,359,680 |
| Size | 387.1 MB | 90.9 MB |
| Events in quadrant A | 2,463,987 | 649,353 |
| Events in quadrant B | 2,597,090 | 657,048 |
| Events in quadrant C | 3,072,252 | 629,606 |
| Events in quadrant D | 3,811,758 | 594,302 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 102 | 0 |
| B | 0 | 102 | 0 |
| C | 0 | 102 | 0 |
| D | 0 | 102 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 22 | 0 |
| B | 0 | 22 | 0 |
| C | 0 | 22 | 0 |
| D | 0 | 23 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10561 | 3 |
| B | 0 | 10868 | 2 |
| C | 0 | 12185 | 2 |
| D | 0 | 14672 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5107 | 8 | 0.156648% |
| B | 5107 | 25 | 0.489524% |
| C | 5107 | 174 | 3.407088% |
| D | 5107 | 398 | 7.793225% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

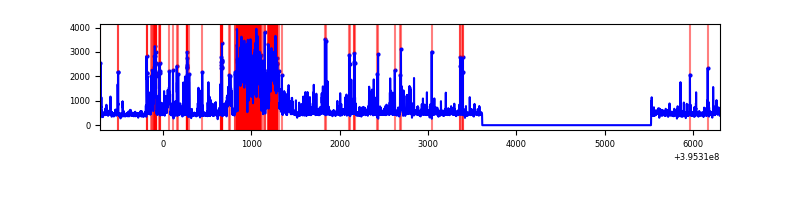

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7020 | 5108 | 1 | 1 | 0.01% | 0.02% |  |
| B | 7020 | 5108 | 15 | 15 | 0.21% | 0.29% |  |
| C | 7020 | 5108 | 133 | 133 | 1.89% | 2.60% |  |
| D | 7020 | 5108 | 337 | 337 | 4.80% | 6.60% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 210439 | 1816.95 | 577 | 565 | 115.5 |
| A | 13 | 254 | 8681 | 70.26 | 577 | 565 | 115.5 |
| A | 13 | 6 | 7930 | 63.76 | 577 | 565 | 115.5 |
| B | 5 | 255 | 118342 | 1085.19 | 572 | 558 | 108.5 |
| B | 15 | 35 | 65516 | 598.48 | 572 | 558 | 108.5 |
| B | 0 | 190 | 40458 | 367.61 | 572 | 558 | 108.5 |
| C | 0 | 10 | 395962 | 3113.46 | 551 | 554 | 127.0 |
| C | 14 | 254 | 272730 | 2143.13 | 551 | 554 | 127.0 |
| C | 15 | 214 | 233616 | 1835.14 | 551 | 554 | 127.0 |
| D | 2 | 153 | 788139 | 5920.2 | 545 | 530 | 133.0 |
| D | 12 | 233 | 256039 | 1920.58 | 545 | 530 | 133.0 |
| D | 13 | 249 | 218861 | 1641.12 | 545 | 530 | 133.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

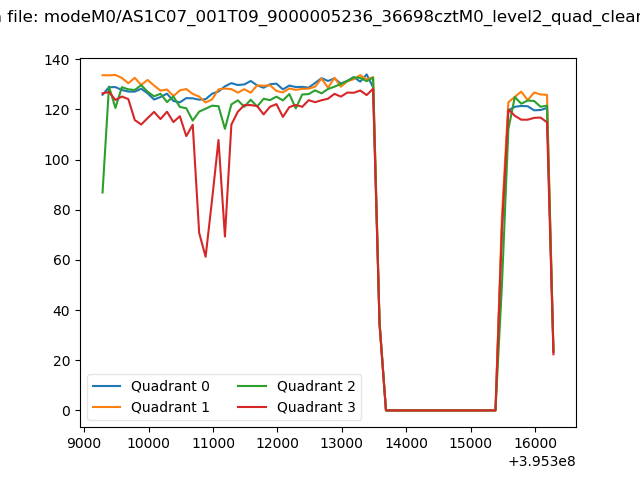

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

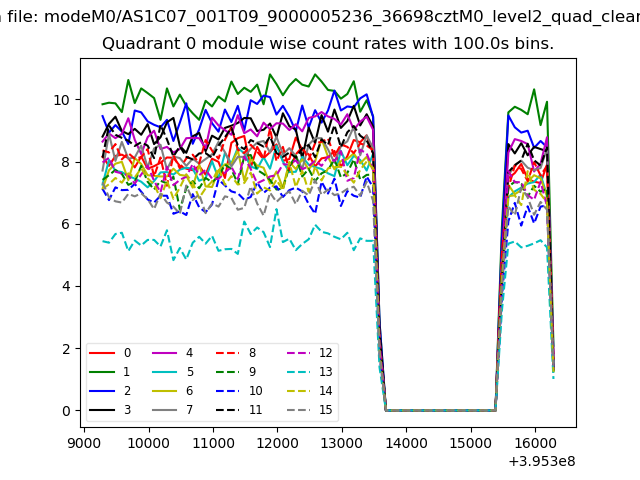

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

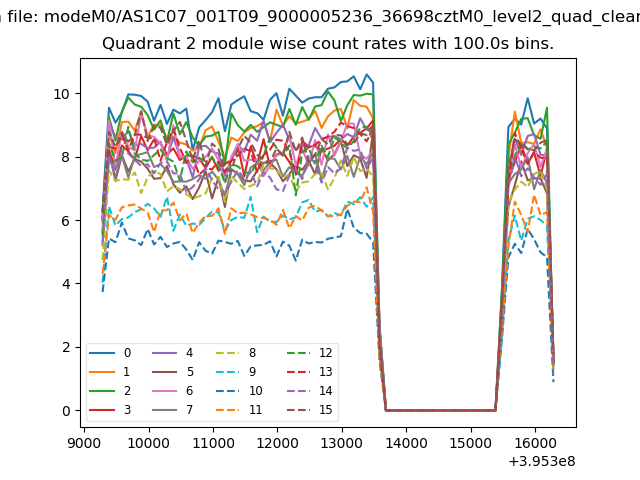

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

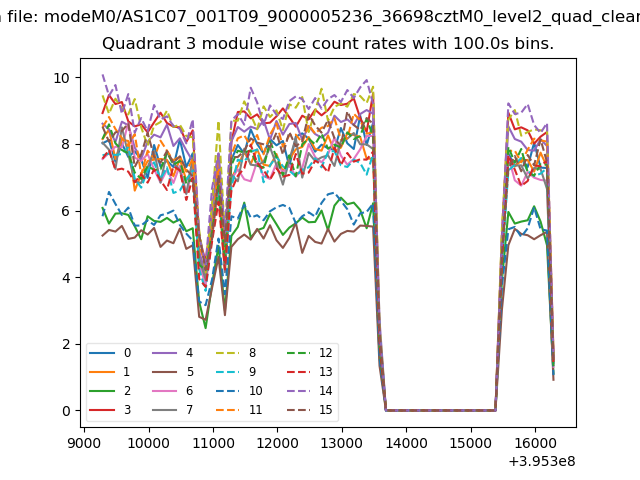

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

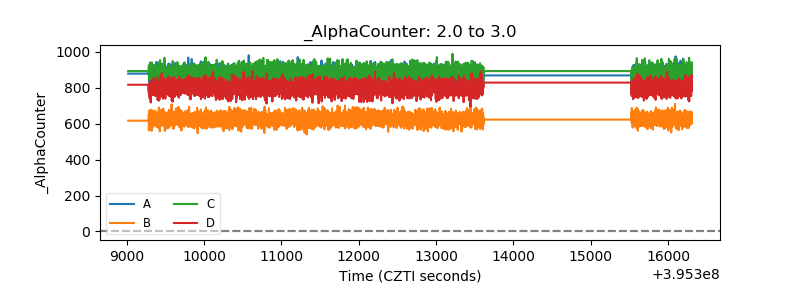

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

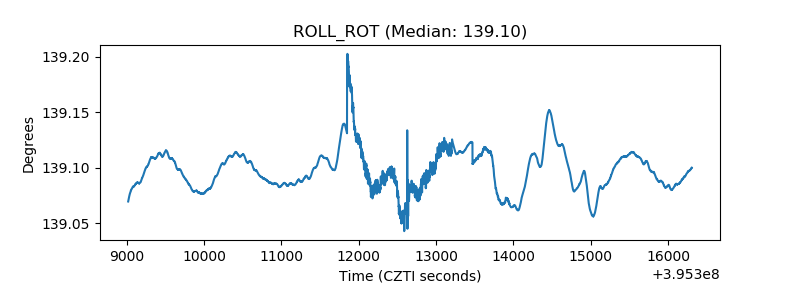

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

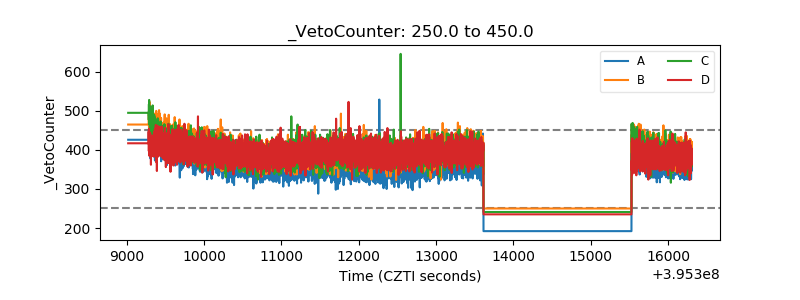

| Veto Counter |  |
