| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C07_001T09_9000005236_36704cztM0_level2.evt | modeM0/AS1C07_001T09_9000005236_36704cztM0_level2_quad_clean.evt |
| Size (bytes) | 434,911,680 | 101,517,120 |
| Size | 414.8 MB | 96.8 MB |
| Events in quadrant A | 2,746,808 | 689,666 |
| Events in quadrant B | 3,469,827 | 667,497 |
| Events in quadrant C | 3,327,348 | 667,786 |
| Events in quadrant D | 3,248,944 | 659,921 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 112 | 0 |
| B | 0 | 112 | 0 |
| C | 0 | 112 | 0 |
| D | 0 | 112 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 19 | 0 |
| B | 0 | 19 | 0 |
| C | 0 | 19 | 0 |
| D | 0 | 20 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12075 | 3 |
| B | 0 | 14168 | 2 |
| C | 0 | 13426 | 2 |
| D | 0 | 13546 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5571 | 25 | 0.448752% |
| B | 5571 | 236 | 4.236223% |
| C | 5571 | 187 | 3.356668% |
| D | 5571 | 128 | 2.297613% |

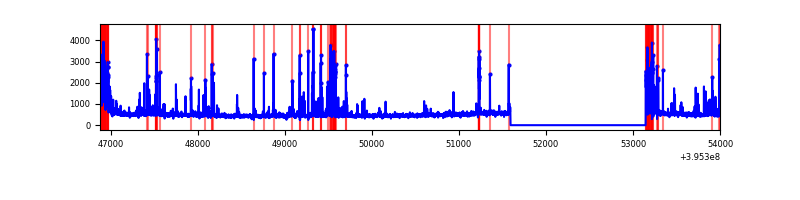

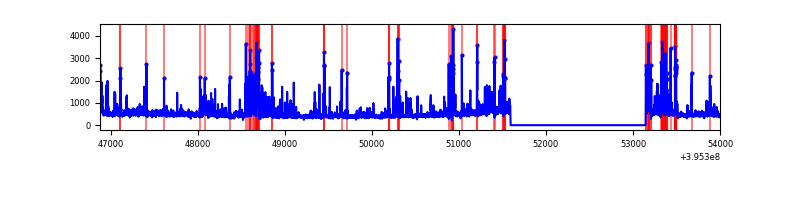

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7124 | 5572 | 18 | 18 | 0.25% | 0.32% |  |
| B | 7124 | 5572 | 153 | 153 | 2.15% | 2.75% |  |
| C | 7124 | 5572 | 133 | 133 | 1.87% | 2.39% |  |
| D | 7124 | 5572 | 106 | 106 | 1.49% | 1.90% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 232984 | 1856.34 | 616 | 604 | 125.2 |
| A | 9 | 143 | 93168 | 739.43 | 616 | 604 | 125.2 |
| A | 13 | 6 | 13103 | 99.85 | 616 | 604 | 125.2 |
| B | 5 | 255 | 576705 | 5030.83 | 602 | 586 | 114.5 |
| B | 0 | 221 | 177422 | 1544.18 | 602 | 586 | 114.5 |
| B | 0 | 229 | 105277 | 914.19 | 602 | 586 | 114.5 |
| C | 14 | 254 | 389852 | 2814.96 | 592 | 596 | 138.3 |
| C | 0 | 10 | 351207 | 2535.49 | 592 | 596 | 138.3 |
| C | 15 | 214 | 250011 | 1803.68 | 592 | 596 | 138.3 |
| D | 12 | 233 | 220486 | 1507.39 | 598 | 582 | 145.9 |
| D | 13 | 249 | 183113 | 1251.21 | 598 | 582 | 145.9 |
| D | 13 | 171 | 123203 | 840.54 | 598 | 582 | 145.9 |

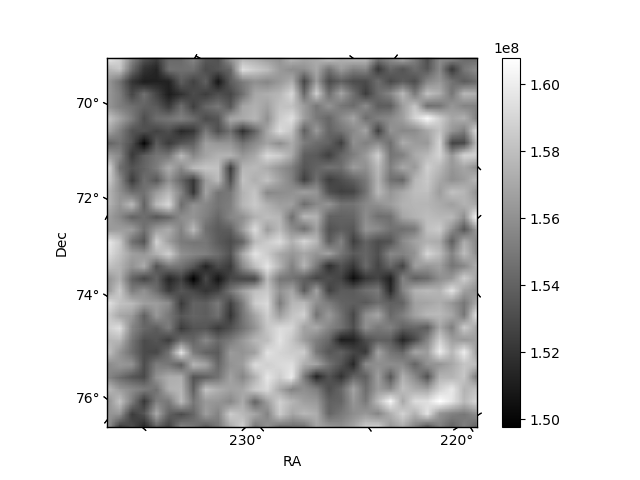

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

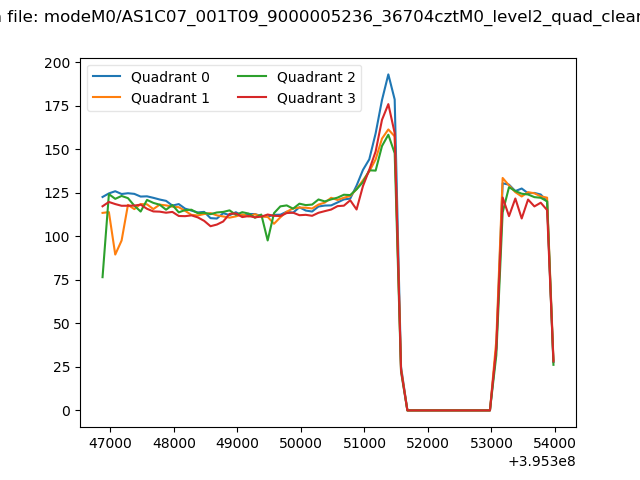

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

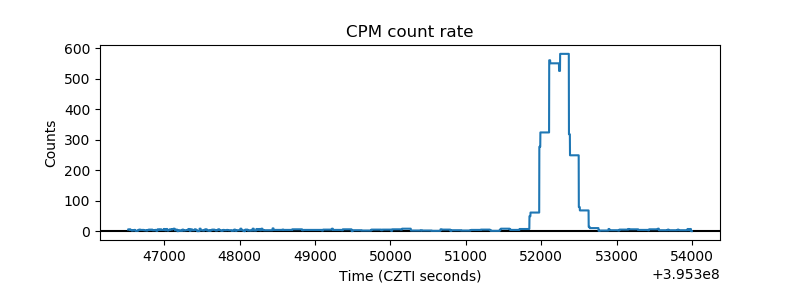

| _CPM_Rate |  |

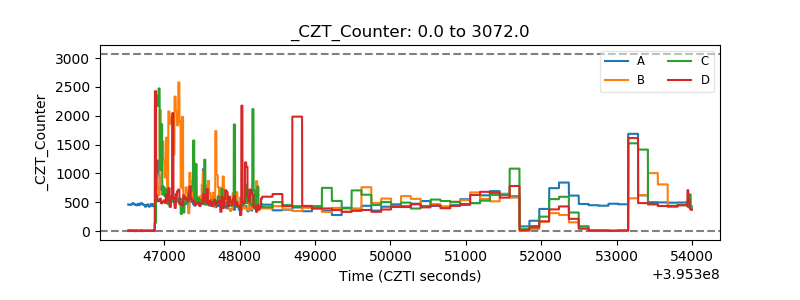

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

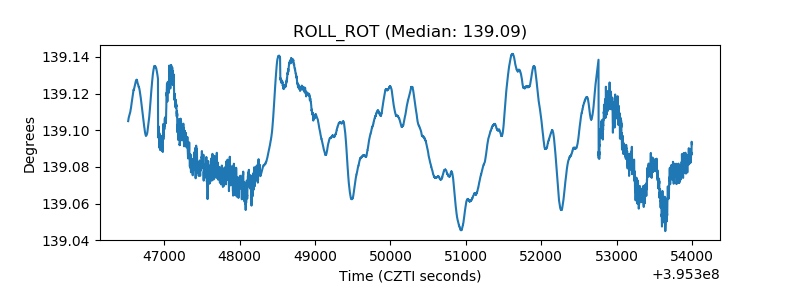

| _ROLL_ROT |  |
| _Roll_DEC |  |

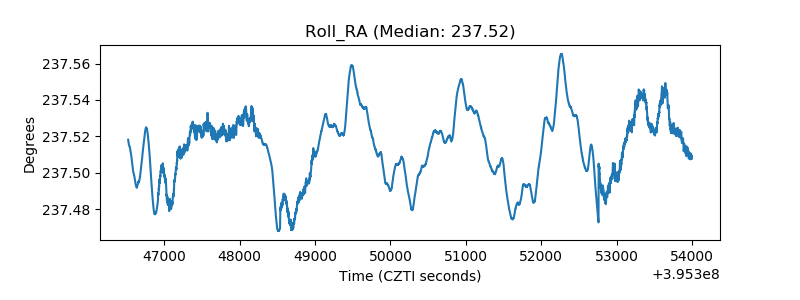

| _Roll_RA |  |
| Veto Counter |  |
